CRW60
The CRW60 series of DC/DC power converters provides 60 Watts of output power in an industry standard 2.00” x 1.00” x 0.40” package and footprint. This series has single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 92%, 1600VDC I/O isolation, six-sided shielding, and remote ON/OFF control. These converters are also protected against short circuit, over voltage, over load, and over temperature conditions. All models are RoHS compliant and have IEC/UL/EN60950-1, 62368-1 safety approvals. This series is best suited for use in automation, datacom, IPC, industrial, measurement, and datacom applications.
• 4:1 Wide Input Voltage Ranges
• High Efficiency up to 92%
• Remote ON/OFF Control
• Six-Sided Continuous Shielding
• Low Stand-by Power Consumption
• No Minimum Load Required
• Single and Dual Outputs
• 1600VDC I/O Isolation
• 60 Watts Maximum Output Power
• Short Circuit, Over Voltage, Over Load, & Over Temp. Protection
• CE Mark
• RoHS & REACH Compliant
• IEC/UL/EN60950-1, 62368-1 Safety Approvals
• Optional Heatsinks Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

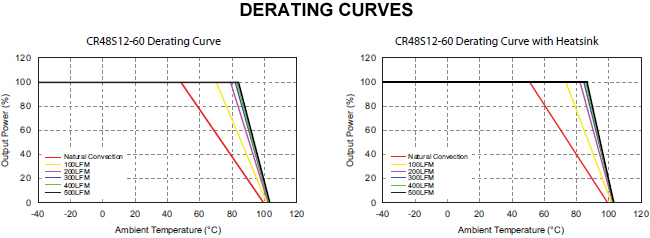

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CRW24S33-60 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 12A | Output Power (W): 39.6 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48S33-60 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 12A | Output Power (W): 39.6 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24S05-60 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24S12-60 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24S15-60 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24S24-60 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48S05-60 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48S12-60 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48S15-60 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48S24-60 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24D12-60 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±2.5A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24D15-60 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±2A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW24D24-60 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±1.25A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48D12-60 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±2.5A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48D15-60 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±2A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| CRW48D24-60 | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±1.25A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~75, 9~36 |
| Input Filter: | Pi type |
| Remote ON/OFF: | Positive (standard) or Negative (optional) logic |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±12, ±15, ±24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 12A, 5A, 4A, 2.5A, ±2.5A, ±2A, ±1.25A |
| Output Power (Watts): | 39.6-60 |
| Output Trim/Adjustability: | See Data Sheet |
| Short Circuit Protection: | continuous, automatic recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 92% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C "M3" Version: -55 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.16 oz |

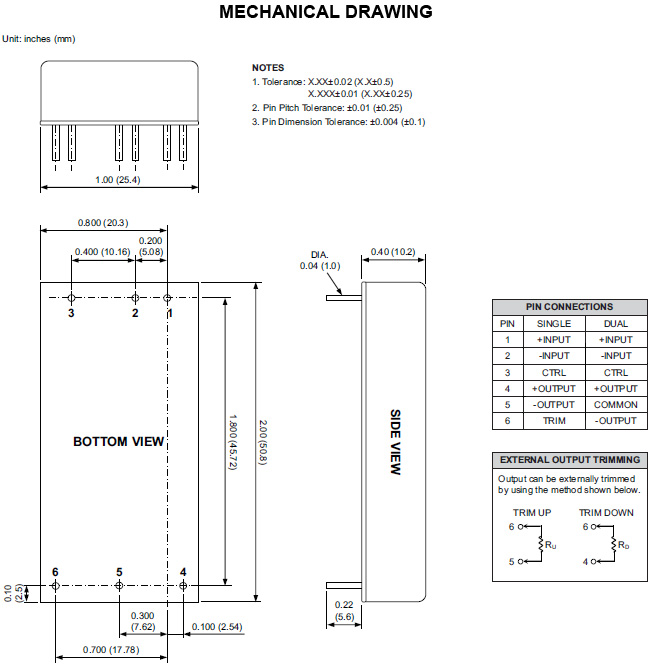

| Dimensions: | 2.00in x 1.00in x 0.40in |
| Case Material: | Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. The CRW60 series can only meet EMI Class A or Class B with external components added. Please contact factory for more information. 2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. - For 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220μF/100V) and a TVS (SMDJ58A, 58V, 3000 Watt peak pulse power) diode in parallel. - For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220μF/100V) and a TVS (SMDJ120A, 120V, 3000 Watt peak pulse power) diode connected in parallel. 3. Both positive logic and negative logic remote ON/OFF control is available. Positive logic remote ON/OFF comes standard; for negative logic remote ON/OFF add the suffix “R” to the model number (Ex: CRW48S12-60R). 4. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC/UL/EN60950-1, 62368-1 |
| RoHS Compliance: | Yes |
