CRW

The CRW series of DC/DC power converters provides 40 Watts of output power in an industry standard 2.00” x 1.00” x 0.40” package and footprint. This series has single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC, 18-75VDC, and 43-160VDC. Some features include high efficiency up to 92%, high Isolation, six-sided shielding, and remote ON/OFF control. These converters are also protected against short circuit, over voltage, over load, and over temperature conditions. All models are RoHS II & REACH compliant and have EN60950-1, UL60950-1, IEC60950-1, EN62368-1, UL62368-1, and IEC62368-1 safety approvals. This series is best suited for use in wireless networks, industry control systems, telecom/datacom, semiconductor equipment, distributed power architectures, and railway systems.

• Input Under Voltage Protection • High Efficiency up to 92% • Remote ON/OFF Control • 4:1 Ultra Wide Input Voltage Ranges • Six-Sided Continuous Shielding • Low Stand-by Power Consumption • No Minimum Load Required • Single and Dual Outputs • 40 Watts Maximum Output Power • EN50155 & EN45545-2 Railway Standards • 1600VDC I/O Isolation for 24Vin and 48Vin, 3000VDC I/O Isolation for 110Vin • Short Circuit, Over Voltage, Over Load, & Over Temp. Protection • Wide Operating Temperature Range: -40°C to +85°C • CE Marked • Compliant to RoHS II & REACH • EN60950-1, UL60950-1, IEC60950-1, EN62368-1, UL62368-1, and IEC62368-1 Safety Approvals • Optional Heatsink Available (Suffix “HS”)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
CRW24S33-33 Input Voltage: 24 Output Voltage: 3.3 Output Current: 10A Output Power (W): 33 No. Outputs: S Case: Through Hole Get a Quote
CRW48S33-33 Input Voltage: 48 Output Voltage: 3.3 Output Current: 10A Output Power (W): 33 No. Outputs: S Case: Through Hole Get a Quote
CRW110S33-33 Input Voltage: 110 Output Voltage: 3.3 Output Current: 10A Output Power (W): 33 No. Outputs: S Case: Through Hole Get a Quote
CRW24S05-40 Input Voltage: 24 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW24S12-40 Input Voltage: 24 Output Voltage: 12 Output Current: 3.333A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW24S15-40 Input Voltage: 24 Output Voltage: 15 Output Current: 2.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW24S24-40 Input Voltage: 24 Output Voltage: 24 Output Current: 1.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW48S05-40 Input Voltage: 48 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW48S12-40 Input Voltage: 48 Output Voltage: 12 Output Current: 3.333A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW48S15-40 Input Voltage: 48 Output Voltage: 15 Output Current: 2.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW48S24-40 Input Voltage: 48 Output Voltage: 24 Output Current: 1.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW110S05-40 Input Voltage: 110 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW110S12-40 Input Voltage: 110 Output Voltage: 12 Output Current: 3.333A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW110S15-40 Input Voltage: 110 Output Voltage: 15 Output Current: 2.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW110S24-40 Input Voltage: 110 Output Voltage: 24 Output Current: 1.666A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CRW24D12-40 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±1.666A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW24D15-40 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±1.333A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW24D24-40 Input Voltage: 24 Output Voltage: 24, -24 Output Current: ±0.833A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW48D12-40 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±1.666A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW48D15-40 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±1.333A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW48D24-40 Input Voltage: 48 Output Voltage: 24, -24 Output Current: ±0.833A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW110D12-40 Input Voltage: 110 Output Voltage: 12, -12 Output Current: ±1.666A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW110D15-40 Input Voltage: 110 Output Voltage: 15, -15 Output Current: ±1.333A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CRW110D24-40 Input Voltage: 110 Output Voltage: 24, -24 Output Current: ±0.833A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48, 110
Input Voltage Range: 18~75, 43~160, 9~36
Input Filter: Pi type
Remote ON/OFF: Positive (standard) or Negative (optional) logic
UVLO: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±12, ±15, ±24
Voltage Accuracy: ±1%
Output Current: 10A, 8A, 3.333A, 2.666A, 1.666A, ±1.666A, ±1.333A, ±0.833A
Output Power (Watts): 33, 40
Output Trim/Adjustability: See Data Sheet
Short Circuit Protection: continuous, automatic recovery
Thermal Protection: Yes
General
Efficiency: Up to 92%
Isolation: 110Vin Input to Output: 3000VDC
Others Input to Output: 1600VDC
Environmental

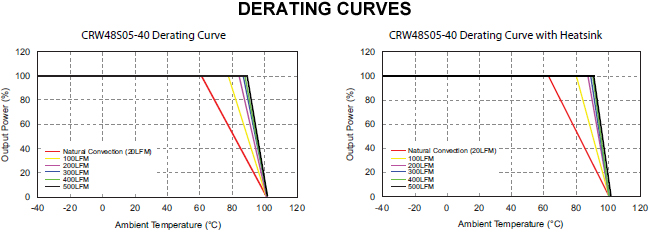

Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 125°C
Physical
Weight: 1.13 oz

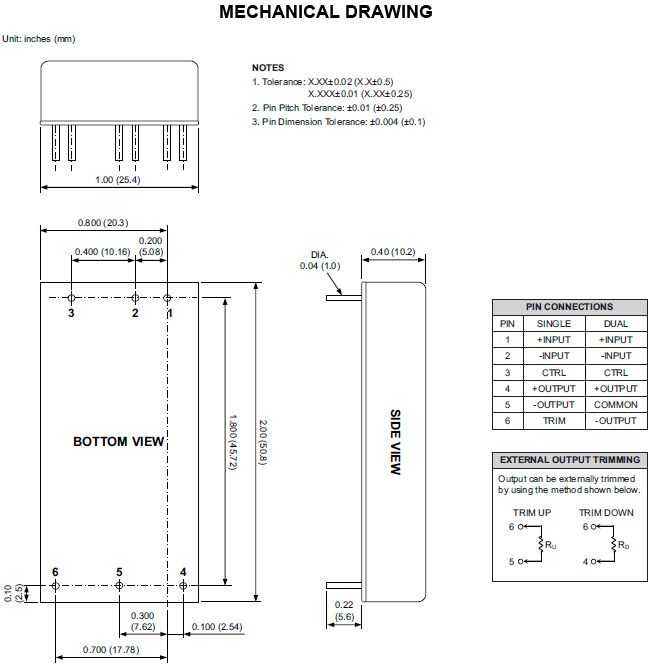

Dimensions: 2.00 x 1.00 x 0.40in (50.8 x 25.4 x 10.2mm)
Case Material: Copper
Shielding: Six-Sided
Notes & safety
Notes: 1. The CRW series can only meet EMI Class A or Class B with external components added. Please contact factory for more information.
2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
For 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/1000V) and a TVS (SMDJ58V, 3000 Watt peak pulse power) to connect in parallel.
For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) and a TVS (SMDJ58A, 58V, 3000 Watt peak pulse power) to connect in parallel.
For 110VDC nominal input models we recommend connecting three aluminum electrolytic capacitors (Ruby-con BXF series, 68µF/200V 3pcs in parallel) connected) (SMDJ90A, 90V, 3000 Watt peak pulse power 2pcs in series connection) to connect in parallel.
3. Both positive logic and negative logic remote ON/OFF control is available. Positive logic remote ON/OFF comes standard; for negative logic remote ON/OFF add the suffix “R” to the model number (Ex: CRW48S05-40R).
4. Test by minimum input and constant resistive load. Optional heatsink is available. Please call factory for ordering details.
CAUTION: This power module is not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN60950-1, UL60950-1, IEC60950-1, EN62368-1, UL62368-1, IEC62368-1
RoHS Compliance: Yes
