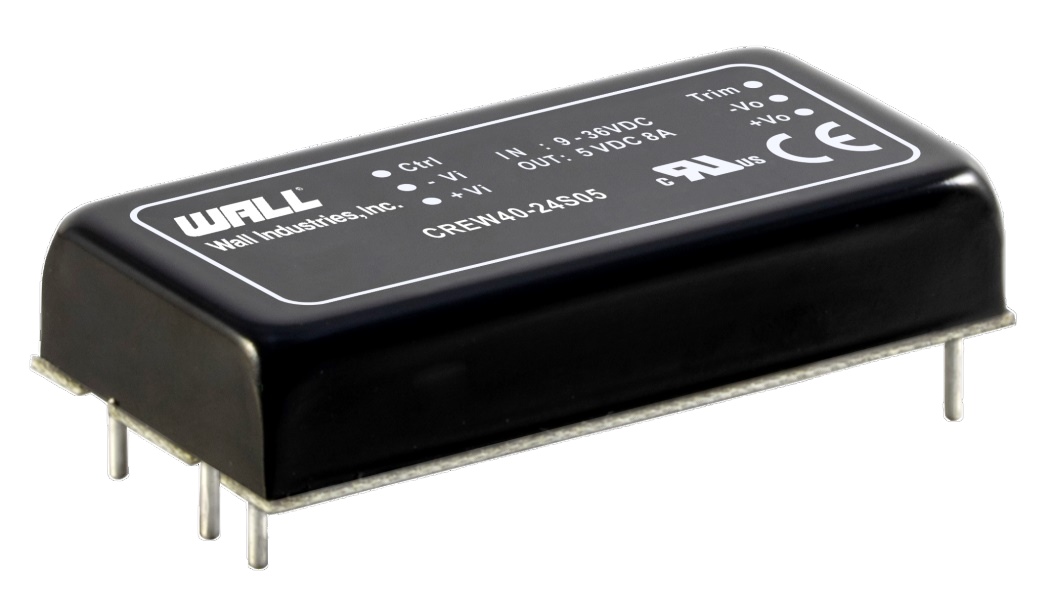

CRE(W)40
The CRE(W)40 series of DC/DC converters offers 40 watts of output power in a compact 2” x 1” x 0.40” through hole package. This series consists of both single and dual output models with a 2:1 or 4:1 input voltage range. Notable features include six sided shielding, 1600VDC isolation, low standby power, and optional heatsink. The CRE(W)40 series also has over voltage, over load, over temperature, and short circuit protection, as well as IEC/ UL/ EN62368-1 safety approvals.
• 2:1 or 4:1 Input Voltage Range
• Optional Heatsink
• 1600VDC Isolation
• 6 Sided Shielding
• Remote On/Off
• RoHS & REACH Compliant
• Low Standby Power
• No Minimum Load Required
• Over Voltage, Over Load, Over Temperature, and Short Circuit Protection
• IEC/ UL/ EN62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CRE40-12S03 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 12200mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 1666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 12200mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 12200mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24S48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 833mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 12200mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 12200mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 833mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48S53 | Input Voltage: 48 | Output Voltage: 53 | Output Current: 755mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-12D24 | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±833mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±833mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CRE40-48D24 | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±833mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1666mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| CREW40-48D24 | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±833mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.40" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 9~36, 18~36, 18~75, 36~75 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | -24, -15, -24, 3.3, 5, 12, 15, 24, 48, 53 |
| Voltage Accuracy: | ±1% |
| Output Current: | ±1666mA, ±1333mA, ±833mA, 755mA, 833mA, 1666mA, 2666mA, 3333mA, 8000mA, 12200mA |
| Output Power (Watts): | 40 |
| Output Trim/Adjustability: | 15Vout, 24Vout: ±20% Others: ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | 115°C |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.2oz (34g) |
| Dimensions: | 2in x 1in x 0.40in (50.8mm x 25.4mm x 10.2mm) |
| Case Material: | Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. |
| Safety Approvals: | IEC/UL/EN62368-1 |
| RoHS Compliance: | Yes |
