CMSP & CMSPW
The CMSP & CMSPW series consists of single output half brick DC/DC converters on a chassis mount that offer up to 100 watts of output power in an industry standard package and footprint. It is intended to provide power and isolation for pc board and chassis mount applications requiring high power density. Some features include wide input voltage ranges, positive or negative remote on/off, remote sense, output trim, short circuit protection, and over voltage protection. Being encapsulated, these supplies have improved thermal dissipation and protection for ruggedized environments. All models are 100% burned-in.
● CE Mark
● 100% Burn In
● Isolated and Regulated
● Wide Input Voltage Ranges
● Fixed Operating Switching Frequency
● Short Circuit and Over Voltage Protected
● Input and Output Filtering Integral to Supply
● UL1950, cUL950, TUV EN60950 File E155800
● 50, 66, 75, and 100 Watt Output Rating from Same Package
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

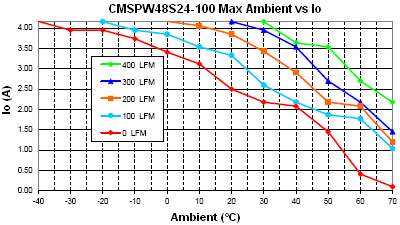

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CMSP24S12-50 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 4.16A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S15-50 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 3.33A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S24-50 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 2.08A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S48-50 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 1.04A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S5-50 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S12-50 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 4.16A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S15-50 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 3.33A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S24-50 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 2.08A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S48-50 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 1.04A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S5-50 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S6-50 | Input Voltage: 48 | Output Voltage: 6 | Output Current: 8.33A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S12-50 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 4.16A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S15-50 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 3.33A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S24-50 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 2.08A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S48-50 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 1.04A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S5-50 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S9-50 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 5.56A | Output Power (W): 50 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S3.3-66 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 20A | Output Power (W): 66 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S3.3-66 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 20A | Output Power (W): 66 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S3.3-66 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 20A | Output Power (W): 66 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S12-75 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 6.25A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S15-75 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 5A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S24-75 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 3.12A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S3.3-75 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 22.7A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S48-75 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 1.56A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S5-75 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 15A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S12-75 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 6.25A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S15-75 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 5A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S24-75 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 3.12A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S3.3-75 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 22.7A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S48-75 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 1.56A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S5-75 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 15A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S6-75 | Input Voltage: 48 | Output Voltage: 6 | Output Current: 12.5A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S12-75 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 6.25A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S15-75 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 5A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S24-75 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 3.12A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S3.3-75 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 22.7A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S5-75 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 15A | Output Power (W): 75 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S12-100 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S15-100 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 6.66A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S24-100 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S48-100 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 2.08A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP24S5-100 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S12-100 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S15-100 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 6.66A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S24-100 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S28-100 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 3.57A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S48-100 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 2.08A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S5-100 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSP48S6-100 | Input Voltage: 48 | Output Voltage: 6 | Output Current: 16.67A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S12-100 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S15-100 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 6.67A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S24-100 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 4.16A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S28-100 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 3.57A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| CMSPW48S5-100 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Chassis Mount | Size: 5.7" × 3.4" × 1.34" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-36, 18-75, 36-75 |
| Input Filter: | Pi Filter |
| Remote ON/OFF: | Positive or Negative |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 6, 9, 12, 15, 24, 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1.04A, 1.56A, 2.08A, 3.12A, 3.33A, 3.57A, 4.16A, 4.17A, 5A, 6.25A, 6.66A, 8.33A, 10A, 12.5A, 16.67A, 20A, 22.7A |
| Output Power (Watts): | 50, 66, 75, 100 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | continuous |
| Over Voltage Protection: | 120% Vout |
| General | |
| Efficiency: | 85% typ. |
| Isolation: | 1500VDC min. |
| Environmental | |
| Operating Temperature: | -40 to 100°C |
| Storage Temperature: | -55 to 125°C |

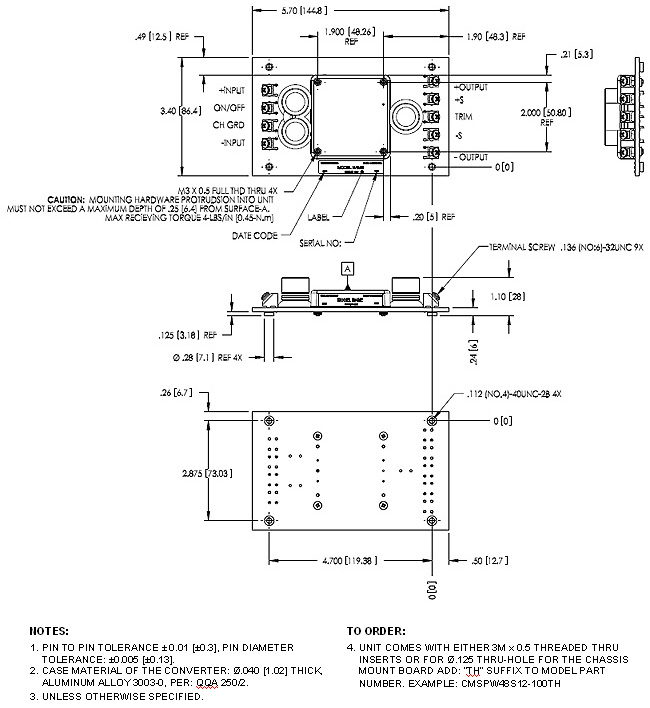

| Physical | |
| Weight: | 8 oz. |
| Dimensions: | 5.7in. × 3.4in. × 1.34in. |
| Case Material: | non-metallic with aluminum baseplate |
| Notes & safety | |
| Notes: | 1. Auto off power train protection. 2. All case, pin to case, and pin to header dimensions reference only unless otherwise noted. 3. 48VDC input with 48VDC output not available in 75 and 100 watt models. 4. Through-hole instead of threaded inserts available (0.125" diameter), add suffix "TH" 5. Positive Remote ON/OFF control is standard. To order negative logic Remote ON/OFF control add the suffix "R" to the part number (Ex: CMSP48S48-100R). 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL1950, cUL950, TUV EN60950 File E155800 |
