CMKR/CMKRW
The CMKR/CMKRW series of dc/dc chassis mount converters has a wide input voltage range of 2:1 and 4:1 and a single output. This series also has triple output protection including over load, over voltage, and current limiting which makes the CMKR/KRW series an ideal choice for a variety of commercial applications. Chassis mounts come in open frame, U channel, and enclosed types.
● Output Current up to 1A ● High Efficiency up to 83% ● Fixed Switching Frequency ● Six-Sided Continuous Shield ● 2:1 and 4:1 Wide Input Voltage Range ● ISO9001 Certified Manufacturing Facilities ● Call Factory for More Output Power Options ● Compliant to RoHS EU Directive 2002/95/EC ● Chassis Mount Options: Open Frame, U Channel, and Enclosed Types Available ● Options: Positive Logic and Negative Logic Remote ON/OFF, Industrial Temperature
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CMKR12S33-1000 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR24S33-1000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR48S33-1000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW24S33-1000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW48S33-1000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR12S5-1000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR24S5-1000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR48S5-1000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW24S5-1000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW48S5-1000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR12S12-470 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR24S12-470 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR48S12-470 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW24S12-470 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW48S12-470 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR12S15-400 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR48S15-400 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW24S15-400 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKRW48S15-400 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMKR24S15-400 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 18-75, 36-75, 9-18, 9-36 |
| Remote ON/OFF: | Positive or Negative |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1A, 470mA, 400mA |
| Output Power (Watts): | 3.3, 5, 5.6, 6 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -25 - 85°C |
| Storage Temperature: | -55 to +105°C |
| Extended Operating Temp. Option: | -40 - +85°C |
| Physical | |
| Weight: | 6 oz. |
| Dimensions: | 4in. × 2.25in. × 0.81in. |
| Shielding: | Six-Sided |
| Notes & safety | |

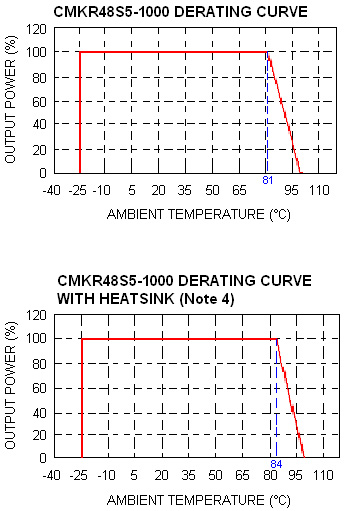

| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). 2. The ON/OFF control pin voltage is referenced to -Vin. To order positive logic ON-OFF control add the suffix "P" (Ex: CMKR48S5-1000P). To order negative logic ON-OFF control add the suffix "R" (Ex: CMKR48S5-1000R). 3. The industrial "I" suffix for the 2:1 input version is more efficient; therefore, it can be operated in a more extensive temperature range than "standard" and "I" suffix 4:1 input versions. To order industrial temperature range (-40°C ~ +85°C) add the suffix "I" to the part number (Ex: CMKR48S5-1000I). 4. Heat sink is optional, consult factory. 5. Chassis Mount Options: No suffix for open frame, "U" suffix for U Channel (add $10.00 to the listed price), and "E" suffix for Enclosed type (add $17.00 to the listed price). 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC60950-1, UL60950-1, EN60950-1 |
| RoHS Compliance: | Yes |
