CMJR
The CMJR series of high efficiency chassis mount dc/dc converters are single output modules with up to 10 watts of output power. This series is designed for a 2:1 input range of 4.5-9VDC, 9-18VDC, 18-36VDC or 36-75VDC. Some features include 1600VDC I/O isolation, positive or negative remote on/off, and short circuit, over load, and over voltage protection. Chassis mounts come in open frame, U channel, and enclosed types.
● 10 Watts Output Power
● High Efficiency up to 86%
● Fixed Switching Frequency
● Six-Sided Continuous Shield
● 2:1 Wide Input Voltage Range
● International Safety Standard Approval
● Call Factory for More Output Power Options
● Options: Add suffix “-I” for Extended Operating Temperature Range
● Chassis Mount Options: Open Frame, U Channel, and Enclosed Types Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CMJR12S33-2000 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR24S33-2000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR48S33-2000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR12S12-830 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR12S15-660 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 660mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR12S5-2000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR24S12-830 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR24S15-660 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 660mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR24S5-2000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR48S12-830 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR48S15-660 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 660mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR48S5-2000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR5S12-830 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR5S15-660 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 660mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMJR5S5-2000 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 4.5-9, 9-18 |
| Remote ON/OFF: | Positive or Negative |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2A, 830mA, 660mA |
| Output Power (Watts): | 6.6, 10 |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1600VDC |
| Environmental | |

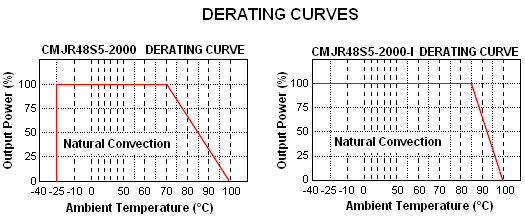

| Operating Temperature: | -25 - 85°C |
| Storage Temperature: | -55 to +105°C |
| Extended Operating Temp. Option: | -40 - +85°C |
| Physical | |
| Weight: | 6 oz. |
| Dimensions: | 4in. × 2.25in. × 0.81in. |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. The CMJR Series requires a minimum 10% loading on the output to maintain specified regulation. Operation under no load condition will not damage these devices, however, they may not meet all listed specifications. 2. The ON/OFF control pin voltage is referenced to -Vin. To order negative logic On/Off control add the suffix "-R" (Ex: CMJR5S5-2000-R). 3. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). 4. "I" Version is more efficient therefore, it can be operated over a more extensive temperature range than the standard version. Please add the suffix "-I" for industrial grade temperature range models. 5. Heat sink is optional, please consult factory for ordering details. 6. Chassis Mount Options: No suffix for open frame, "U" suffix for U Channel (add $10.00 to the listed price), and "E" suffix for Enclosed type (add $17.00 to the listed price). 7. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC60950-1, UL60950-1, EN60950-1 (except for 5V input models) |
