CMDBW
The CMDBW series of high efficiency chassis mount DC/DC converters are single output modules with up to 40 watts of output power. This product is ideal for telecom and networking applications, and is designed for a 4:1 input range of 9VDC-36VDC or 18VDC-75VDC. Some features include 1600VDC isolation, remote on/off, and output adjustability. All models are short circuit, over load, and over voltage protected. Chassis mounts come in open frame, U channel, and enclosed types.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CMDBW24S3.3-33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 10A | Output Power (W): 33 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW48S3.3-33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 10A | Output Power (W): 33 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW24S12-40 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW24S15-40 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW24S5-40 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW48S12-40 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3.333A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW48S15-40 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2.666A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMDBW48S5-40 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Remote ON/OFF: | Positive or Negative |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 10A, 8A, 3.333A, 2.666A |
| Output Power (Watts): | 33, 40 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |

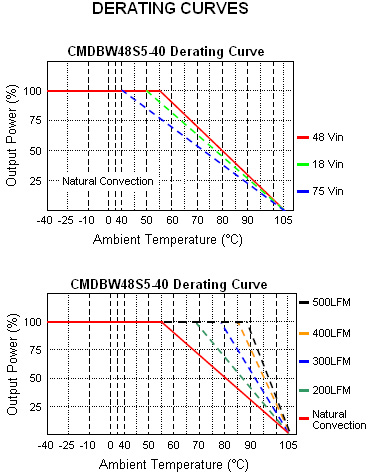

| Operating Temperature: | -55 - +105°C with derating |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 7 oz. |
| Dimensions: | 4in. × 2.25in. × 0.81in. |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. The ON/OFF control function: There are positive (standard) and negative logic (option). The pin voltage is referenced to negative input. To order negative logic ON/OFF control add the suffix "R" to the part number (Ex: CMDBW48S5-40R) 2. MTBF: BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). MIL-STD-217F Notice2 @ Ta=25°C, Full Load (Ground, Benign, controlled environment). 3. Heat sink is optional. Please call factory for ordering details. 4. Output ripple & noise measured with a 0.1µF/50V MLCC. 5. Chassis Mount Options: No suffix for open frame, "U" suffix for U Channel (add $10.00 to the listed price), and "E" suffix for Enclosed type (add $17.00 to the listed price). 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC60950-1, UL60950-1, EN60950-1 |
| RoHS Compliance: | Yes |
