CMCG
The CMCG series of single output low-profile chassis mount DC/DC converters offers 30 watts of output power and operates over input voltage ranges of 18-36VDC and 36-75VDC. Applications include data communications, mobile battery driven equipment, distributed power systems, telecommunications, mixed analog/digital subsystems, process/machine control equipment, computer peripheral systems and industrial robot systems. Chassis mounts come in open frame, U channel, and enclosed types.
● Soft Start
● Lead-Free Design
● Output Trim Function
● I/O Isolation 1500VDC
● Remote On/Off Control (Optional)
● Call Factory for More Output Power Options
● EMI Complies with RN55022 Class A (Only for CMCG-A Series)
● Chassis Mount Options: Open Frame, U Channel, and Enclosed Types Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

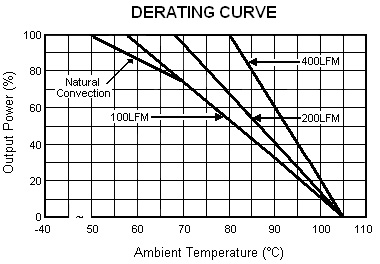

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CMCG24S2.5-6000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 6A | Output Power (W): 15 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S2.5-6000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 6A | Output Power (W): 15 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG24S3.3-6000 | Input Voltage: 24 | Output Voltage: 19.8 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S3.3-6000 | Input Voltage: 48 | Output Voltage: 19.8 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG24S5-5000 | Input Voltage: 24 | Output Voltage: 25 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S5-5000 | Input Voltage: 48 | Output Voltage: 25 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG24S5.1-5000 | Input Voltage: 24 | Output Voltage: 25.5 | Output Current: 5A | Output Power (W): 25.5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S5.1-5000 | Input Voltage: 48 | Output Voltage: 25.5 | Output Current: 5A | Output Power (W): 25.5 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG24S12-2500 | Input Voltage: 24 | Output Voltage: 30 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG24S15-2000 | Input Voltage: 24 | Output Voltage: 30 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S12-2500 | Input Voltage: 48 | Output Voltage: 30 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| CMCG48S15-2000 | Input Voltage: 48 | Output Voltage: 30 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 4" × 2.25" × 0.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-36, 36-75 |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 2.5, 3.3, 5, 5.1, 12, 15 |
| Voltage Accuracy: | ±0.5% typ. |
| Output Current: | 6A, 19.8A, 25A, 25.5A, 30A |
| Output Power (Watts): | 15, 19.8, 25, 25.5, 30 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 - +105°C Case |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 7 oz. |
| Dimensions: | 4in. × 2.25in. × 0.81in. |
| Notes & safety | |
| Notes: | 1. Transient Recovery Time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. Ripple & Noise measurement bandwidth is 0~20MHz. 3. These power converters require a minimum output loading to maintain specified regulation. Operation at no-load will not damage these devices, however they may not meet all listed specifications. 4. Other input and output voltages may be available, please contact factory. 5. To order the converter with Remote On/Off function, please add suffix "-RC" (Ex: CMCG48S5-5000-RC). 6. Chassis Mount Options: No suffix for open frame, "U" suffix for U Channel (add $10.00 to the listed price), and "E" suffix for Enclosed type (add $17.00 to the listed price). Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | OE60950-1, RN60950-1, IEC60950-1 |
