CB
The CB series of DC/DC converters offers 30 Watts of output power in a 2 x 1 x 0.4 inch package. The CB series has a 2:1 wide input voltage range of 9-18VDC, 18-36VDC, or 36-75VDC. This series also offers single and dual output models. Some features include 1600VDC isolation, positive or negative remote on/off, and six-sided shielding. All models are short circuit, over voltage, over current, and over temperature protected. Heatsinks are also available, please call factory for ordering details.
● High Efficiency up to 91%
● Fixed Switching Frequency
● 2:1 Wide Input Voltage Range
● Six-Sided Continuous Shielding
● Standard 2.0 x 1.0 x 0.40 Inches
● Negative Logic Remote ON/OFF Option
● ISO9001 Certified Manufacturing Facilities
● Compliant to RoHS EU Directive 2002/95/EC
● Design Meets UL60950-1, EN60950-1, and IEC60950-1
● CE Mark Meets 2006/95/EC, 93/68/EEC, and 89/336 EEC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CB12S1.5-8500 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 8.5A | Output Power (W): 12.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S1.5-8500 | Input Voltage: 24 | Output Voltage: 1.5 | Output Current: 8.5A | Output Power (W): 12.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S1.5-8500 | Input Voltage: 48 | Output Voltage: 1.5 | Output Current: 8.5A | Output Power (W): 12.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S2.5-8000 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S2.5-8000 | Input Voltage: 24 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S2.5-8000 | Input Voltage: 48 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S3.3-8000 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S3.3-8000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S3.3-8000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12D12-1250 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12D15-1000 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12D5-3000 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S12-2500 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S15-2000 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S5-6000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24D12-1250 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24D15-1000 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24D5-3000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S12-2500 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S15-2000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S5-6000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48D12-1250 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48D15-1000 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48D5-3000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S12-2500 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S15-2000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S5-6000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB12S5.1-6000 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 6A | Output Power (W): 30.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB24S5.1-6000 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 6A | Output Power (W): 30.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CB48S5.1-6000 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 6A | Output Power (W): 30.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 9-18 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Positive or Negative Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.5, 2.5, 3.3, 5. 5.1, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 8.5A, 8A, 6A, 2.5A, 2A |
| Output Power (Watts): | 12.75, 20, 26.4, 30, 30.6 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 1600VDC |
| Environmental | |

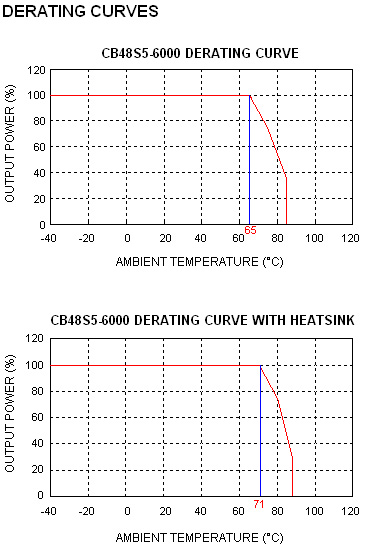

| Operating Temperature: | -40 - +85°C with derating |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 1 oz. |

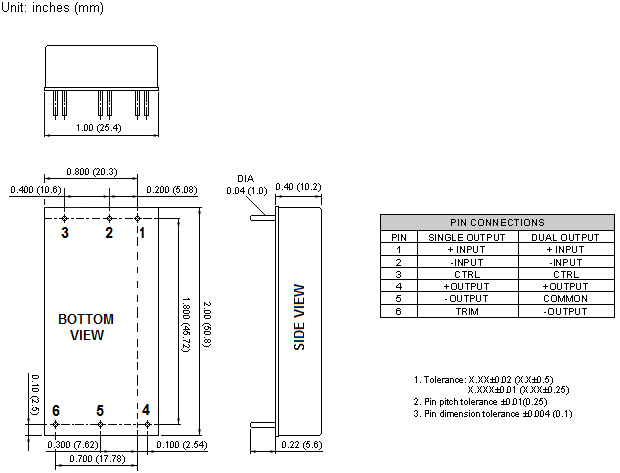

| Dimensions: | 2in. × 1in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C (Ground fixed and controlled environment). MIL-STD-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment). 2. The ON/OFF control pin voltage is referenced to -Vin. To order negative logic ON/OFF control add the suffix "R" (Ex: CB48S5-6000R) 3. Heat sink is optional, consult factory for ordering details. 4. The CB series can meet EN55022 Class A with an external capacitor in parallel with the input pins. Recommended: For 12Vin: 10µF/25V X7R 1812 MLCC. For 24Vin: 4.7µF/50V X7R 1812 MLCC. For 48Vin: 2.2µF/100V X7R 1812 MLCC. 5. An external filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested: 12Vin & 24Vin Nippon chemi-con KY series, 330µF/50V, ESR 55MΩ. For 48Vin Nippon chemi-con KY series, 220µF/100V, ESR 48MΩ. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
