WMSAW30

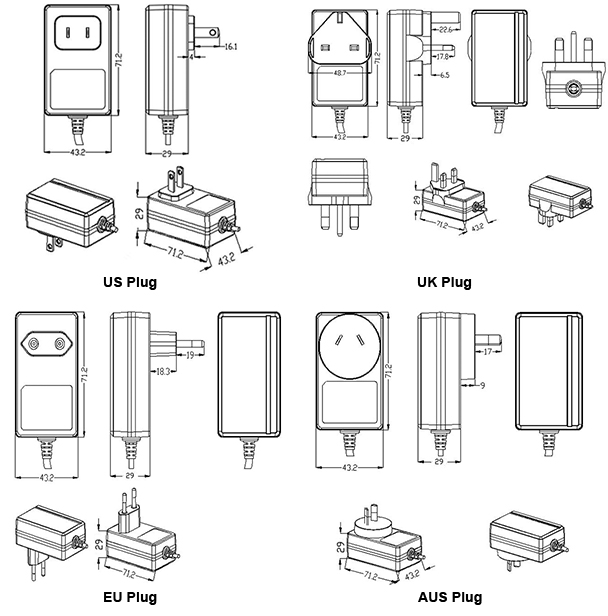

The WMSAW30 series of AC DC wall mount power supplies provides up to 24 watts of output power in a compact 2.80” x 1.70” x 1.08” package. This series consists of single output models with a wide input voltage range of 90~264VAC and multiple output voltages available. Four different plugs are available: US plug, UK plug, EU plug, Aus plug. All models are RoHS Compliant and levels over 5 volts are Energy Efficiency Level VI compliant. Models are also protected against over current and short circuit conditions, and have been drop in and burn-in tested. Please call factory for ordering details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMSAW30-090-2000x | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2000mA | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-120-1500x | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1500mA | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-180-1000x | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1000mA | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-120-2000x | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2000mA | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-240-1000x | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1000mA | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-090-3000x | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 3000mA | Output Power (W): 27 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| WMSAW30-120-2500x | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.7" x 1.14" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 9, 12, 18, 24 |
| Output Current: | 3000mA, 2000mA, 2500mA, 1500mA, 1000mA |
| Output Power (Watts): | 18, 24, 27, 30 |
| Short Circuit Protection: | Yes |
| General | |
| Environmental | |
| Operating Temperature: | 10 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 5.29 oz |
| Dimensions: | 2.80" x 1.70" x 1.14" |
| Notes & safety | |
| Notes: | (1) “x” in model name refers to plug type option. “x” can either be “U” for U type =US plug, “K” for K type =UK plug, “E” for E type =EU plug, or “A” for A type= Aus plug. Ex. WMSAW30-120-2000U. (2) To indicate white case color, add “W” to end of model number. Ex. WMSAW30-120-2000UW. (3) Ripple & Noise is measured by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor. (Tested under rated input and rated output conditions) (4) This product is listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL, CUL, FCC, CE & GS, SAA & C-Tick, CB & BSI1363 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
