WMISPU26

The WMISPU26 Series of Class II AC/DC wall mount power supplies offers up to 25 watts of output power in a 2.95” x 1.71” x 1.58” package. This series consists of single output models ranging from 5 to 48VDC with a wide input voltage range of 90~264VAC. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits and has UL60950-1: 2nd Edition, IEC 60950-1:2005/A2:2013, and EN60905-1:2006/A2:2013 safety approvals. All units are RoHS2 and Energy Star Level VI compliant. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details.

• Double Insulated, Class II • Up to 25 Watts • RoHS2 Compliant • Energy Star 2.0 Efficiency Level VI • Single Output Voltages available from 5VDC to 48VDC • 100% Burn-In Tested • Optional Output Connectors • Wide Input Voltage Range: 90~264VAC, 47~63Hz • Short Circuit Protection • UL60950-1: 2nd Edition, IEC 60950-1:2005/A2:2013, and EN60905-1:2006/A2:2013 Safety Approvals • UL/cUL, TUV/GS, and CE Marking • Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits. • Interchangeable Plug Options: EU, UK, AUS, and US Types
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMISPU26-102 Input Voltage: 100~240 Output Voltage: 5~5.99 Output Current: 2.75A~3.30A Output Power (W): 16.5 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-103 Input Voltage: 100~240 Output Voltage: 6.5~8 Output Current: 2.50A~3.07A Output Power (W): 20 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-104 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 2.00A~2.75A Output Power (W): 22 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-105 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.92A~2.27A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-106 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.56A~1.92A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-107 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 1.19A~1.56A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-108 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.92A~1.19A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-109 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.75A~0.92A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-110 Input Voltage: 100~240 Output Voltage: 33~40 Output Current: 0.62A~0.75A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
WMISPU26-111 Input Voltage: 100~240 Output Voltage: 40~48 Output Current: 0.53A~0.62A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 2.95" x 1.71" x 1.58" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48
Output Current: 0.53A~0.62A, 0.62A~0.75A, 0.75A~0.92A, 0.92A~1.19A, 1.19A~1.56A, 1.56A~1.92A, 1.92A~2.27A, 2.00A~2.75A, 2.50A~3.07A, 2.75A~3.30A
Output Power (Watts): 16.5, 20, 22, 25
Short Circuit Protection: Automatic Recovery
General
Efficiency: Up to 88%
Isolation: 4242VDC (Primary to Secondary)
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 7oz (200g)
Dimensions: 2.95" x 1.71" x 1.58" (75.0 x 43.5 x 40.2 mm)
Notes & safety
Notes: (1) The “x” in the model number can be “U” for US type plug; “E” for EU type plug, “A” for AUS type plug, or “K” for UK type plug.
(2) The output voltage is specified as range (Ex: 40~48VDC); the customer must specify what they want the voltage set at.

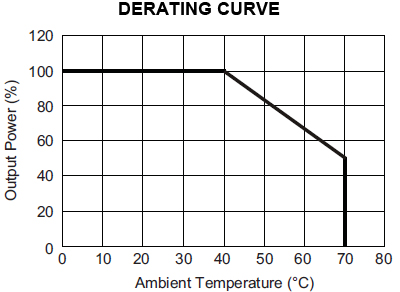

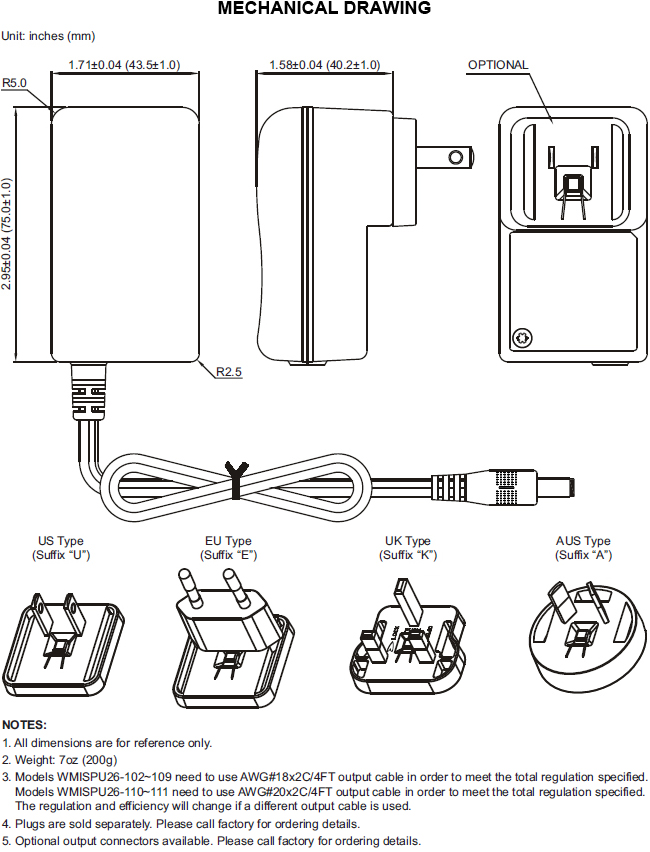

(3) Models WMISPU26-102~109 need to use AWG#18x2C/4FT output cable in order to meet the total regulation specified.
Models WMISPU26-110~111 need to use AWG#20x2C/4FT output cable in order to meet the total regulation specified.
The regulation and efficiency will change if a different output cable is used.
(4) Plugs are sold separately; please contact factory for offering details.
(5) Output can provide up to peak load when power supply starts up. Staying in rated load continually is not allowed.
(6) Each output is checked to be within voltage accuracy at factory in 60% rated load.
(7) Line regulation is defined by changing ±10%of input voltage from nominal line at rated load.
(8) Load regulation is defined by changing ±40% of measured output load from 60% rated load.
(9) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
(10) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
(11) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60905-1:2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS (EN60950-1:2nd Edition)
Energy Star Compliance: Level VI
