WMISPU15
The WMISPU15 Series of Class II AC/DC wall mount power supplies offers up to 15 watts of output power in a 2.36” x 1.71” x 1.58” package. This series consists of single output models ranging from 5 to 48VDC with a wide operate input voltage range of 90~264VAC. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits and has IEC 62368-4 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 NO.62368-1-14, EN 62368-1:2014, and J 62368-1 safety approvals. All units are RoHS and Energy Star Level VI compliant. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately, so please contact factory for ordering details.
• Double Insulated, Class II
• Up to 15 Watts
• RoHS Compliant
• Efficiency Level VI Compliant
• Single Output Voltages Available from 5VDC to 48VDC
• 100% Burn In and Tested
• Short Circuit Protection
• Wide Operate Input Voltage Range: 90~264VAC
• MTBF>100,000 Hours
• IEC 62368-4 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 NO.62368-1-14, EN 62368-1:2014, and J 62368-1 Safety Approvals
• Meets FCC Part 15 Class B and CISPR-22 Class B Emission Limits
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMISPU15-102x | Input Voltage: 100~240 | Output Voltage: 5~5.99 | Output Current: 2.40 ~ 2.00 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-103x | Input Voltage: 100~240 | Output Voltage: 6.5~8 | Output Current: 1.85 ~ 1.50 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-104x | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.68 ~ 1.22 A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-105x | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36 ~ 1.15 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-106x | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15 ~ 0.94 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-107x | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94 ~ 0.72 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-108x | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72 ~ 0.55 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-109x | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55 ~ 0.45 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-110x | Input Voltage: 100~240 | Output Voltage: 33~40 | Output Current: 0.45 ~ 0.37 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMISPU15-111x | Input Voltage: 100~240 | Output Voltage: 40~48 | Output Current: 0.37 ~ 0.32 A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 2A~2.4A, 1.50A~1.84A, 1.22A~1.68A, 1.15A~1.36A, 0.94A~1.15A, 0.72A~0.94A, 0.55A~0.72A, 0.45A~0.55A, 0.37A~0.45A, 0.32A~0.37A |
| Output Power (Watts): | 12, 13.5, 15 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 4242VDC min. (primary to secondary) |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.8oz (165g) |

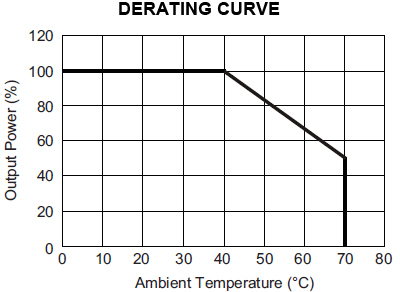

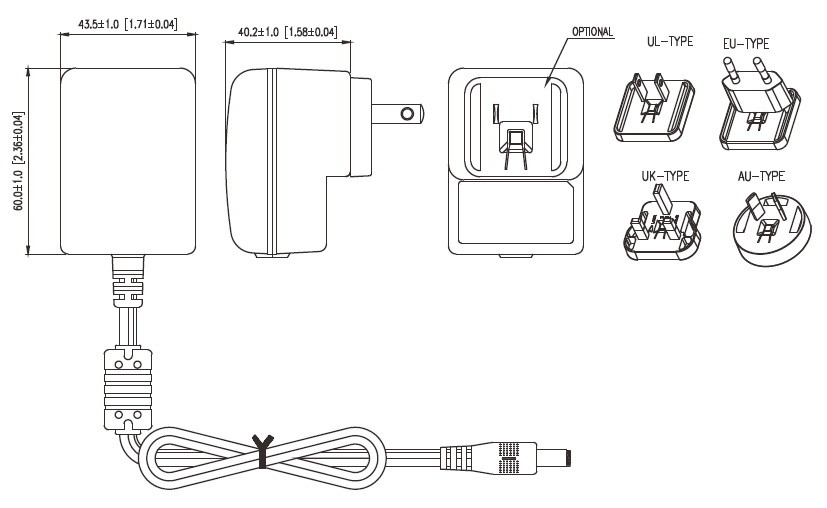

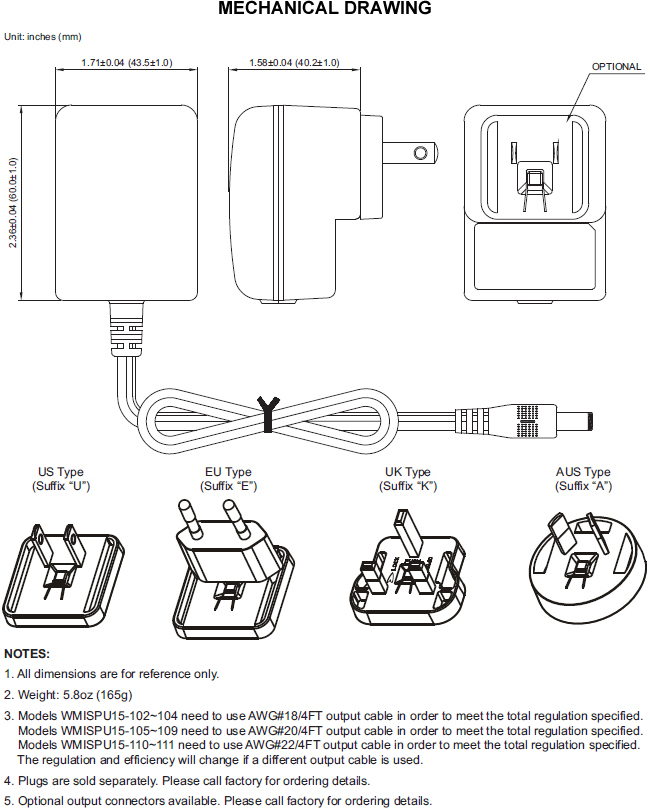

| Dimensions: | 2.36" x 1.71" x 1.58" (60 x 43.5 x 40.2 mm) |
| Notes & safety | |
| Notes: | (1) The “x” in the model number can be “U” for US type plug; “E” for EU type plug, “A” for AUS type plug, or “K” for UK Type plug. (2) Factory setting, cannot be adjusted. (3) This product is Listed to applicable standards and requirements by UL. (4) Output can provide up to peak load when the power supply starts up. Continually staying in more than the rated load is not allowed. (5) At factory, in 60% rated load condition, each output is checked to be within voltage accuracy. (6) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (7) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (8) The ripple is measured from peak to peak with a bandwidth-limit of 10MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor. (9) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (10) Efficiency is measured at rated load and nominal line. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22 No. 62368-1-14, EN 62368-1:2014, J 62368-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
