WMIPEM1036
The WMIPEM1036 series of wall mount AC/DC power supplies offers up to 36 Watts of output power in a 3.88” x 1.79” x 1.29” package. This series consists of single output models ranging from 9 to 15VDC with an input voltage range of 100~240VAC. These supplies are also protected against over voltage and short circuit conditions. This series is CEC and RoHS compliant and has UL60601-1 medical approvals. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details. Optional output connectors are also available.
• 100-240VAC Input Voltage Range
• 15~36 Watts Output Power
• Single Outputs
• Short Circuit and Over Voltage Protection
• MTBF: > 30,000 Hours
• Optional Output Connectors
• CEC & RoHS Compliance
• High Operating Temperature up to + 50°C
• UL60601-1 Medical Approvals
• US, EU, UK, and AUS Interchangeable Plugs Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIPEM1036EU | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036EE | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036EK | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036EA | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036DU | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036DE | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036DK | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036DA | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036CU | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036CE | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036CK | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036CA | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036BU | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036BE | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036BK | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036BA | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036AU | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036AE | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036AK | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| WMIPEM1036AA | Input Voltage: 100~240 | Output Voltage: 9~15 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.88" x 1.79" x 1.29" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 9~15 |
| Output Current: | 1A, 1.5A, 2A, 2.5A, 3A |
| Output Power (Watts): | 15, 18, 24, 30, 36 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 82% |
| Environmental | |
| Operating Temperature: | 0 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.76oz (220g) |

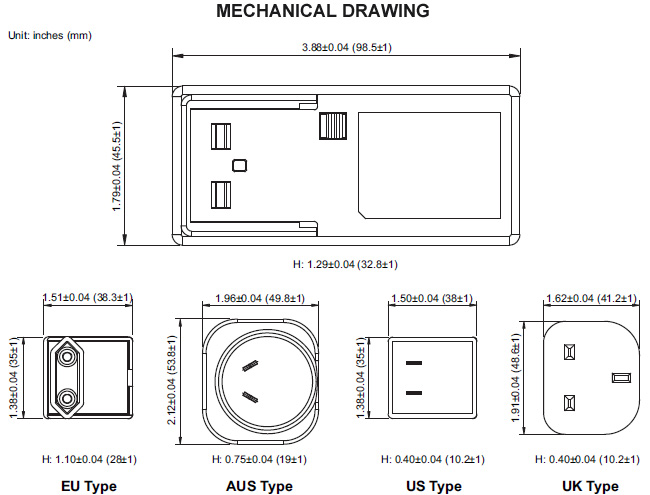

| Dimensions: | 3.88" x 1.79" x 1.29" (98.5 x 45.5 x 32.8 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (Ex: 9~15VDC); the customer must specify what they want the voltage set at. 2. Optional output connectors are available. Please call factory for more details. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60601-1 |
| RoHS Compliance: | Yes |
