WMIPEM1024
The WMIPEM1024 series of medical AC/DC wall mount power supplies provides up to 36 watts of output power in a 2.90” x 1.69” x 1.28” package. This series consists of single output models ranging from 5VDC to 48VDC with an input voltage range of 90~264VAC. This series is RoHS compliant and meets CEC Level V, VI requirements. This series also has UL/cUL, UL60601, CB 60601, CE and FCC safety approvals. These supplies are protected against over voltage and short circuit conditions. Interchangeable plugs are sold separately and are available in United States (U suffix), China (C suffix), United Kingdom (K suffix), Europe (E suffix), Australia (A suffix), and South Africa (S suffix) types.
• RoHS Compliant
• 90-264VAC Input Voltage Range
• 16~36 Watts Output Power
• Over Voltage & Short Circuit Protection
• 0 to +40°C Operating Temperature Range
• CEC Level V, VI Compliant
• Single Outputs Ranging from 5VDC to 48VDC
• UL/cUL, UL60601, CB 60601, CE, & FCC Safety Approvals
• United States, China, United Kingdom, Europe, Australia, and South Africa Plug Types Available
• Several Output Connector Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIPEM1024Ax | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.0A | Output Power (W): 16 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Dx | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Bx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3.0A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Gx | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Mx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Cx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 4.0A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Ex | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 2.0A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Jx | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.33A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Qx | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 2.0A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Fx | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 3.0A | Output Power (W): 27 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Hx | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Kx | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.66A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Nx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.83A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Px | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 3.0A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| WMIPEM1024Rx | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 1.5A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.9" x 1.69" x 1.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60Hz |
| Output | |
| Output Voltage: | 5~8, 9~11, 12, 12~17, 18~24, 24, 36~48 |
| Output Current: | 4A, 2A, 3A, 1.5A, 1.66A, 2.5A, 1.33A, 550mA, 830mA |
| Output Power (Watts): | 16, 18, 20, 24, 27, 30, 36 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Isolation: | 4000VAC min. (primary to secondary) |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.05oz (200g) |

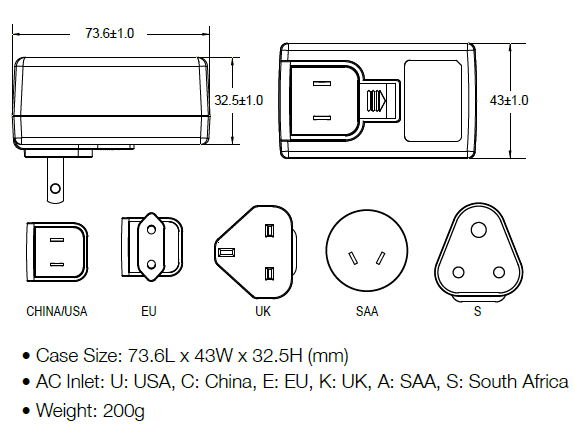

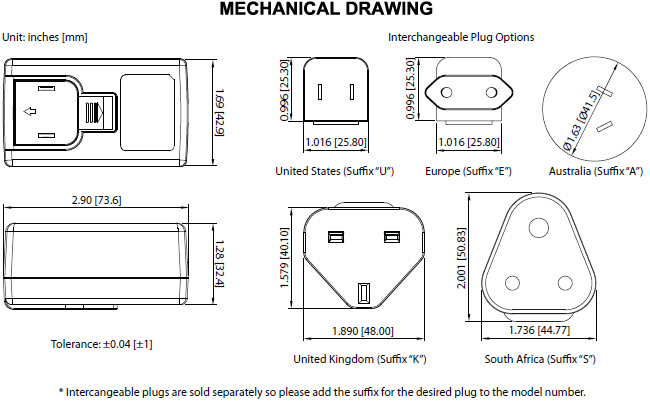

| Dimensions: | 2.90" x 1.69" x 1.28" (73.6 x 43 x 32.5 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number represents the type of AC plug: “x” can be “U” for United States type, “C” for China type, “K” for United Kingdom type, “E” for Europe type, “A” for Australia type, or “S” for South Africa type. 2. The output voltage is specified as a range (Ex: 36~48 VDC); the customer must specify what they want the voltage set at. 3. Ripple and Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 4. Optional output connectors are available. Please call factory for ordering details. 5. Certificates listed are for reference only, please contact factory for details. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice |
| Safety Approvals: | UL/cUL, UL60601, CB 60601, CE, FCC |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/SUD EN/IEC 60601-1: 3rd Edition |
| Energy Star Compliance: | Level V, VI |
