WMIPEA1020
The WMIPEA1020 series offers 20 watts in a single output wall mount power supply with interchangeable plugs. All units are short circuit and over voltage protected. Output voltages range from 5 to 35VDC. Plugs come in United States/Japan (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIPEA1020R | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.86" x 1.77" x 1.32" | Get a Quote |
| WMIPEA1020AR | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.86" x 1.77" x 1.32" | Get a Quote |
| WMIPEA102CR | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.54 A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.86" x 1.77" x 1.32" | Get a Quote |
| WMIPEA102DR | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 950 mA | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.86" x 1.77" x 1.32" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 9, 13, 21 |
| Output Current: | 1.54A, 2A, 4A, 950mA |
| Output Power (Watts): | 18, 20 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 80% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.76 oz. |

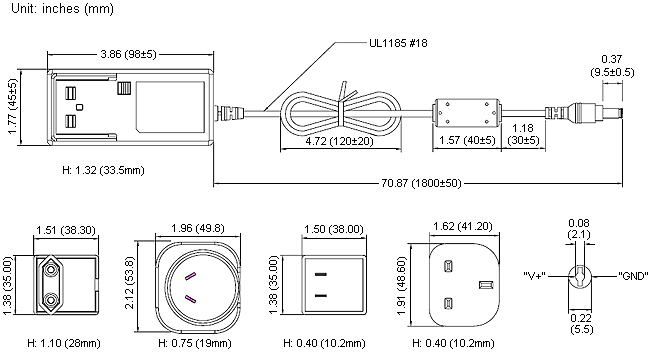

| Dimensions: | 3.86" x 1.77" x 1.32" (98 x 45 x 33.5 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (Ex: 21 ~ 35VDC); the preset voltage will be set as standard models if nothing different is requested. Please contact factory for ordering details. 2. This wall mount power supply has four interchangeable AC plug options available: EU, UK, AUS, and US types. AC plugs are sold separately. Please call factory for ordering details. 3. Other DC plug types and sizes are available. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CUL, CE, CCC, FCC, DolR+C-Tick |
| RoHS Compliance: | Yes |
