WMIIPU26
The WMIIPU26 series of Class II AC/DC wall mount power supplies offers up to 25 watts of output power in a 2.95” x 1.71” x 1.58” package. This series consists of single output models ranging from 5VDC to 48VDC with a 90~264VAC input voltage range and a -20°C to +70°C operating temperature. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission limits and has UL/cUL UL60950-1: 2nd edition and TUV/GS EN60950-1: 2nd edition safety approvals. All units are RoHS2 and Energy Star Level VI compliant. Interchangeable plugs are available in United States (“U” suffix), Europe (“E” suffix), Australia (“A” suffix), and United Kingdom (“K” suffix) types. Plugs are sold separately so please contact factory for ordering details.
• Class II System
• RoHS2 Compliant
• Up to 25 Watts Output Power
• Up to 88% High Efficiency
• Energy Star 2.0, Efficiency Level VI
• 90-264VAC Input Voltage Range
• 100% Burn-In Tested
• Single Outputs Ranging from 5VDC to 48VDC
• -20°C to +70°C Operating Temperature Range
• Meets FCC Part-15 Class B & CISPR-22 Class B Emission Limits
• UL/cUL UL60950-1: 2nd Ed. & TUV/GS EN60950-1: 2nd Ed.
• Interchangeable Plug Options: United States, Europe, Australia, & United Kingdom Types
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIIPU26-102x | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 3.3~2.75A | Output Power (W): 16 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-103x | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 3.33~2.50A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-104x | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 2.75~2.0A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-105x | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-106x | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-107x | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-108x | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 1.19~0.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-109x | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.92~0.75A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-110x | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.75~0.62A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIIPU26-111x | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.62~0.53A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 3.3~2.75A, 3.33~2.5A, 2.75~2.0A, 2.27~1.92A, 1.92~1.56A, 1.56~1.19A, 1.19~0.92A, 0.92~0.75A, 0.75~0.62A, 0.62~0.53A |
| Output Power (Watts): | 16, 20, 22, 25 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | 77-85% |
| Isolation: | 4242VDC |
| Environmental | |

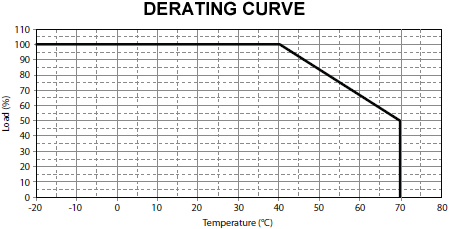

| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7.05oz (200g) |

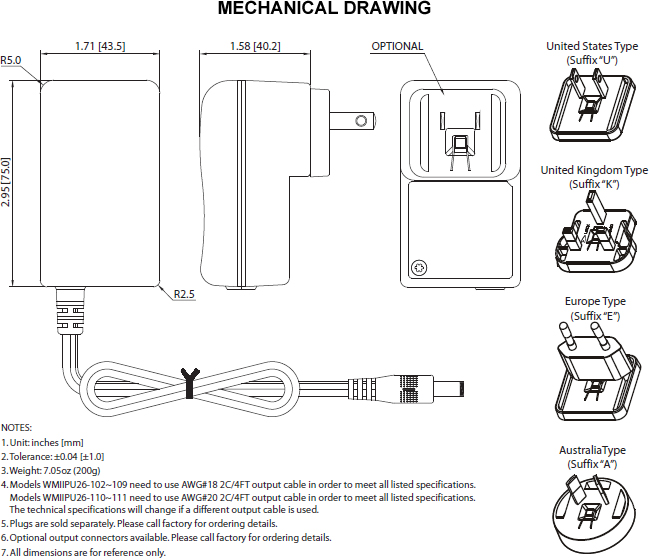

| Dimensions: | 2.95" x 1.71" x 1.58" (75.0 x 43.5 x 40.2 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number can be “U” for United States type plug; “E” for Europe type plug, “A” for Australia type plug, or “K” for United Kingdom type plug. Plugs are sold separately so please contact factory for ordering details. 2. At factory, in 60% rated load condition, each output is checked to be within voltage accuracy. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 5. Ripple & noise is measured by using 20MHz limited bandwidth and with 0.47F capacitor in parallel across the output at nominal line and rated load. 6. Hold-up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 7. Optional output connectors are available for this series. Please call factory for ordering details. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL60950-1: 2nd edition), TUV/GS (EN 60950-1: 2nd edition), CE, FCC, CB, PSE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1:2nd Edition) |
| Energy Star Compliance: | Level VI |
