WMIIPU15

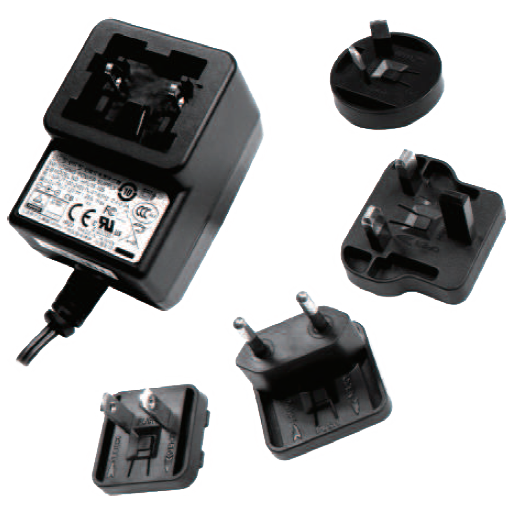

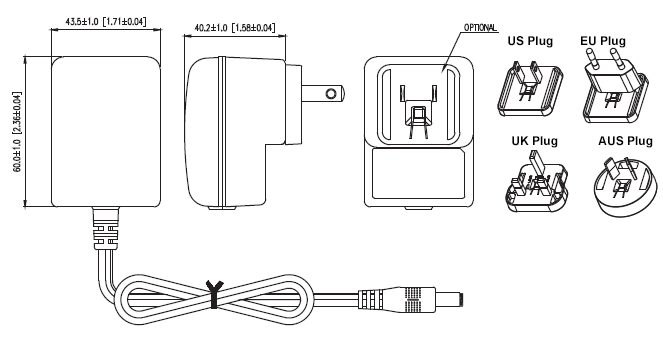

The WMIIPU15 series of AC/DC wall mount with interchangeable plugs offers up to 15 watts of output power in a 1.71” x 2.36” x 1.58” package. This series consists of single output models with a wide operating voltage range of 90~264VAC. Four interchangeable plugs are available for this series: US, UK, EU, or AUS plug and optional output connectors are also available. Each model in this series has short circuit protection, Level VI and RoHS2 compliance, and is a class II system. This series also has UL/cUL (UL60950-1:2nd Edition), TUV/GS (EN 60950-1:2nd Edition), CB, CE, FCC, CCC, PSE, and RCM safety approvals
• Wide Operating Voltage 90 to 264VAC
• 4 Interchangeable Plugs Available: US, UK, EU, AUS
• Optional Output Connectors Available
• Level VI, CoC V5 Compliant
• RoHS2 Compliant
• Class II System
• Short Circuit Protection
• Cooling by Free Air Convection
• Models meet FCC Part 15 Class B and CIRSPR-22 Class B Emission Limits
• UL/cUL (UL60950-1:2nd Edition), TUV/GS (EN 60950-1:2nd Edition), CB, CE, FCC, CCC, PSE, and RCM Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIIPU15x-102 | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.00A~2.40A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-103 | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.50A~1.84A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.22A~1.68A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.15A~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.94A~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.72A~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.55A~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.45A~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.37A~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| WMIIPU15x-111 | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.32A~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.71" x 2.36" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 0.37A, 0.45A, 0.55A, 0.72A, 0.94A, 1.15A, 1.36A, 1.68A, 1.84A, 2.40A |
| Output Power (Watts): | 12, 13.5, 15 |
| General | |
| Efficiency: | 74.7~85% |
| Environmental | |
| Operating Temperature: | -20 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 6oz (170g) |
| Dimensions: | 1.71in x 2.36in x 1.58in (43.5mm x 60mm x 40.2mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates plug type. “X” can either be “U” for US Plug, “K” for UK Plug, “E” for EU Plug, or “A” for AUS Plug. 2. Output can provide up to peak load when the power supply starts. Staying in more than rated load continually is not allowed. 3. Each output is checked to be within voltage accuracy at factory in 60% rated load condition. 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 6. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 8. WMIIPU15-102~107 are required to use AWG#18/4FT output cable. WMIIPU15-108~111 are required to use AWG#20/4FT output cable. Regulation and efficiency will be changed by a modified output cable. 9. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL60950-1:2nd Edition, TUV/GS (EN60950-1:2nd Edition), CB, CE, FCC, CCC, PSE, RCM |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN60950-1:2nd Edition) |
| Energy Star Compliance: | Level VI |
