WMIHPU15

The WMIHPU15 series of Class II medical AC/DC wall mount power supplies offers up to 15 watts of output power in a 2.36” x 1.71” x 1.58” package. This series consists of single output models ranging from 3VDC to 55VDC with an 80~275VAC input voltage range and a -10°C to +70°C operating temperature. This series meets FCC Part-18 Class B and CISPR-11 EN55011 Class B Emission Limits and has ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd edition) and CE safety approvals. All units are RoHS and Energy Star Level V compliant. Plugs come in United States (“U” suffix), Europe (“E” suffix), Australia (“A” suffix), and United Kingdom (“K” suffix) types. Plugs are sold separately so please contact factory for ordering details.

• Class II System • RoHS Compliant • Up to 15 Watts Output Power • 86% High Efficiency • Energy Star 2.0, Efficiency Level V • 80-275VAC Input Voltage Range • Over Voltage & Over Load Protection • Input to Output: 2MOPP • Single Outputs Ranging from 3VDC to 55VDC • -10°C to +70°C Operating Temperature Range • Meets FCC Part-18 Class B & CISPR-11 EN55011 Class B Emission Limits • UL/cUL 3rd Edition Medical Approvals • Interchangeable Plug Options: United States, Europe, Australia, & United Kingdom Types • Optional Output Connectors Available

Get a Quote Custom Solutions

Models
Specifications

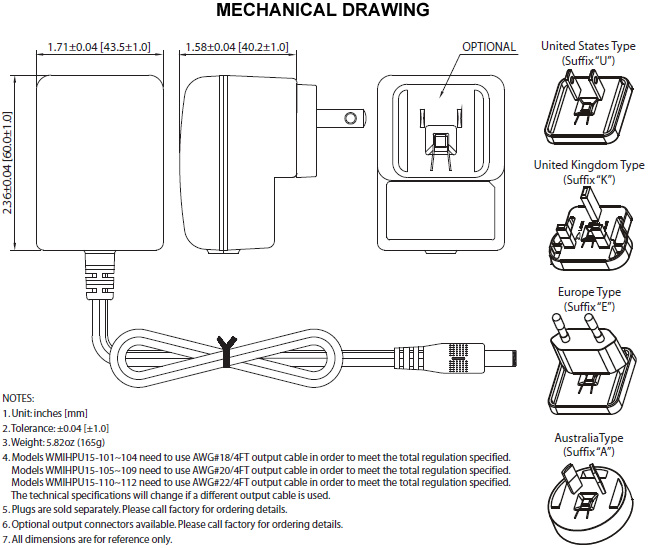

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
WMIHPU15-101A	Input Voltage: 80~275	Output Voltage: 3.0~4.99	Output Current: 1.44~2.4A	Output Power (W): 7.2	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-101E	Input Voltage: 80~275	Output Voltage: 3.0~4.99	Output Current: 1.44~2.4A	Output Power (W): 7.2	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-101K	Input Voltage: 80~275	Output Voltage: 3.0~4.99	Output Current: 1.44~2.4A	Output Power (W): 7.2	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-101U	Input Voltage: 80~275	Output Voltage: 3.0~4.99	Output Current: 1.44~2.4A	Output Power (W): 7.2	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-102K	Input Voltage: 80~275	Output Voltage: 5.0~5.99	Output Current: 2.0~2.4A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-102U	Input Voltage: 80~275	Output Voltage: 5.0~5.99	Output Current: 2.0~2.4A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-102A	Input Voltage: 80~275	Output Voltage: 5.0~5.99	Output Current: 2.0~2.4A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-102E	Input Voltage: 80~275	Output Voltage: 5.0~5.99	Output Current: 2.0~2.4A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-103K	Input Voltage: 80~275	Output Voltage: 6.5~8	Output Current: 1.5~1.84A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-103E	Input Voltage: 80~275	Output Voltage: 6.5~8	Output Current: 1.5~1.84A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-103A	Input Voltage: 80~275	Output Voltage: 6.5~8	Output Current: 1.5~1.84A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-103U	Input Voltage: 80~275	Output Voltage: 6.5~8	Output Current: 1.5~1.84A	Output Power (W): 12	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-104K	Input Voltage: 80~275	Output Voltage: 8~11	Output Current: 1.22~1.68A	Output Power (W): 13.5	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-104A	Input Voltage: 80~275	Output Voltage: 8~11	Output Current: 1.22~1.68A	Output Power (W): 13.5	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-104U	Input Voltage: 80~275	Output Voltage: 8~11	Output Current: 1.22~1.68A	Output Power (W): 13.5	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-104E	Input Voltage: 80~275	Output Voltage: 8~11	Output Current: 1.22~1.68A	Output Power (W): 13.5	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-105K	Input Voltage: 80~275	Output Voltage: 11~13	Output Current: 1.15~1.36A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-105E	Input Voltage: 80~275	Output Voltage: 11~13	Output Current: 1.15~1.36A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-105U	Input Voltage: 80~275	Output Voltage: 11~13	Output Current: 1.15~1.36A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-105A	Input Voltage: 80~275	Output Voltage: 11~13	Output Current: 1.15~1.36A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-106A	Input Voltage: 80~275	Output Voltage: 13~16	Output Current: 0.94~1.15A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-106U	Input Voltage: 80~275	Output Voltage: 13~16	Output Current: 0.94~1.15A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-106E	Input Voltage: 80~275	Output Voltage: 13~16	Output Current: 0.94~1.15A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-106K	Input Voltage: 80~275	Output Voltage: 13~16	Output Current: 0.94~1.15A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-107U	Input Voltage: 80~275	Output Voltage: 16~21	Output Current: 0.72~0.94A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-107E	Input Voltage: 80~275	Output Voltage: 16~21	Output Current: 0.72~0.94A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-107A	Input Voltage: 80~275	Output Voltage: 16~21	Output Current: 0.72~0.94A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-107K	Input Voltage: 80~275	Output Voltage: 16~21	Output Current: 0.72~0.94A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-108U	Input Voltage: 80~275	Output Voltage: 21~27	Output Current: 0.55~0.72A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-108E	Input Voltage: 80~275	Output Voltage: 21~27	Output Current: 0.55~0.72A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-108A	Input Voltage: 80~275	Output Voltage: 21~27	Output Current: 0.55~0.72A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-108K	Input Voltage: 80~275	Output Voltage: 21~27	Output Current: 0.55~0.72A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-109U	Input Voltage: 80~275	Output Voltage: 27~33	Output Current: 0.45~0.55A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-109E	Input Voltage: 80~275	Output Voltage: 27~33	Output Current: 0.45~0.55A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-109A	Input Voltage: 80~275	Output Voltage: 27~33	Output Current: 0.45~0.55A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-109K	Input Voltage: 80~275	Output Voltage: 27~33	Output Current: 0.45~0.55A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-110U	Input Voltage: 80~275	Output Voltage: 33~40	Output Current: 0.37~0.45A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-110E	Input Voltage: 80~275	Output Voltage: 33~40	Output Current: 0.37~0.45A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-110A	Input Voltage: 80~275	Output Voltage: 33~40	Output Current: 0.37~0.45A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-110K	Input Voltage: 80~275	Output Voltage: 33~40	Output Current: 0.37~0.45A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-111U	Input Voltage: 80~275	Output Voltage: 40~48	Output Current: 0.32~0.37A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-111E	Input Voltage: 80~275	Output Voltage: 40~48	Output Current: 0.32~0.37A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-111A	Input Voltage: 80~275	Output Voltage: 40~48	Output Current: 0.32~0.37A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-111K	Input Voltage: 80~275	Output Voltage: 40~48	Output Current: 0.32~0.37A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-112E	Input Voltage: 80~275	Output Voltage: 48~55	Output Current: 0.28~0.32A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-112A	Input Voltage: 80~275	Output Voltage: 48~55	Output Current: 0.28~0.32A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-112K	Input Voltage: 80~275	Output Voltage: 48~55	Output Current: 0.28~0.32A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote
WMIHPU15-112U	Input Voltage: 80~275	Output Voltage: 48~55	Output Current: 0.28~0.32A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount with Interchangeable Plugs	Size: 2.36" x 1.71" x 1.58"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	80~275
Input Frequency:	47-63Hz
Output
Output Voltage:	3.0~4.99, 5.0~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48, 48~55
Output Current:	0.28~0.32A, 0.32~0.37A, 0.37~0.45A, 0.45~0.55A, 0.55~0.72A, 0.72~0.94A, 0.94~1.15A, 1.15~1.36A, 1.22~1.68A, 1.5~1.84A, 2.0~2.4A, 1.44~2.4A
Output Power (Watts):	7.2, 12, 13.5, 15
Short Circuit Protection:	Automatic Recovery

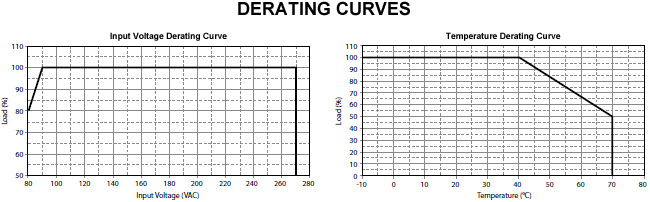

General
Efficiency:	Up to 86%
Isolation:	5656VDC min. (primary to secondary)
Environmental
Operating Temperature:	-10 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	5.82oz (165g)
Dimensions:	2.36" x 1.71" x 1.58" (60.0 x 43.5 x 40.2 mm)
Notes & safety
Notes:	1. The “x” in the model number can be “U” for United States type plug; “E” for Europe type plug, “A” for Australia type plug, or “K” for United Kingdom type plug. Plugs are sold separately so please contact factory for ordering details. 2. Output can provide up to peak load when power supply starts up. Continuous staying in more than rated load is not allowed. 3. At factory, in 60% rated load condition, each output is checked to be within voltage accuracy. 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 6. Ripple & noise is measured by using 20MHz limited bandwidth and with 0.47F capacitor in parallel across the output at nominal line and rated load. 7. Hold-up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 8. Optional output connectors are available for this series. Please call factory for ordering details. 9. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	ANSI/AAMI ES 60601-1:2005 (UL/cUL 3rd ed.), IEC60601-1 3rd edition, CE
RoHS Compliance:	Yes
Energy Star Compliance:	Level V
