WMIGPSU40

The WMIGPSU40 series of AC DC interchangeable wall mount power supplies provides up to 40 watts of output power in a small package. This series consists of single output models with output voltages ranging from 5~58VDC and universal input voltage range of 100~240VAC. There are six interchangeable plugs available for this series: US Plug, EU Plug, 2-Pin AUS Plug, UK Plug, Korean Plug, and Argentina Plug. Each model in this series is protected against short circuit, over voltage, and over current conditions and has UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, and J60950 safety approvals. The 5~6, and 8~58V models are Energy Level VI compliant. Please call factory for order details.

• Universal Input Voltage of 100~240VAC • Single Output • Optional Output Connectors Available • 5~6, 8~58V Models Meet EISA 2007/DoE (VI) & ErP/CoC (5) • Short Circuit, Over Voltage, and Over Current Protection • Six Interchangeable Plugs Available: US Plug, EU Plug, 2-Pin AUS plug, UK Plug, Korean Plug, and Argentina Plug • UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, CCC and J60950 Safety Approvalss • 40.6 Maximum Output Power
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMIGPSU40U-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5.00~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40U-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40E-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40SA-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40BS-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40KR-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGPSU40AR-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70A Output Power (W): 40.6 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50-60Hz
Output
Output Voltage: 5~6, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58
Output Current: 5~4.16A, 5~3.64A, 3.64~3.08A, 3.08~2.50A, 2.50~1.90A, 1.90~1.49A, 1.49~1.22A, 1.22~0.70A
Output Power (Watts): 25, 30, 40, 40.04, 40.23, 40.26, 40.6
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 110~140%
Thermal Protection: Automatic Recovery
General
Efficiency: Up to 88.60%
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -40 to 85°C
Physical
Weight: 6.0~6.7oz (170~190g)

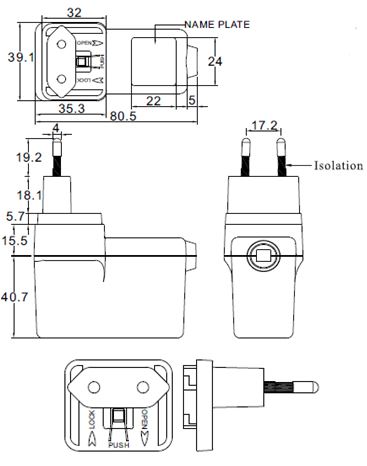

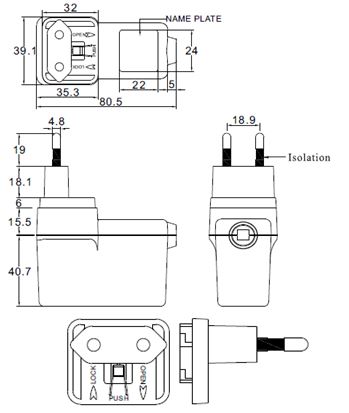

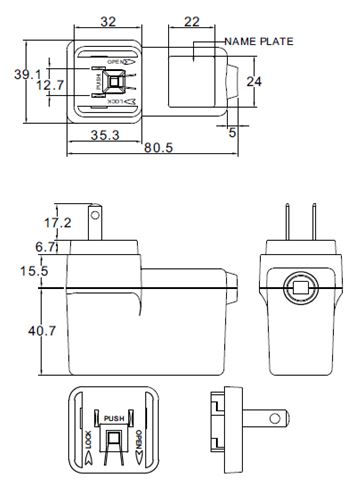

Dimensions: U Type, E Type, and KR Type Models: 3.17" x 1.54" x 1.6"

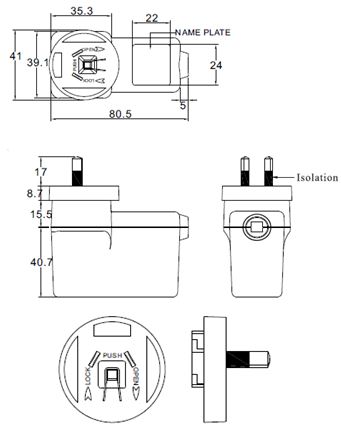

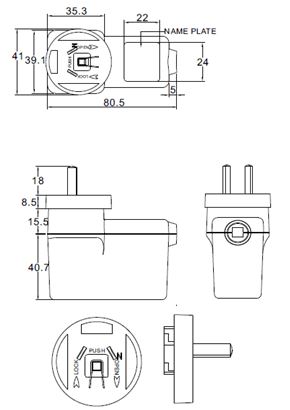

SA and AR Type Models: 3.17" x 1.61" x 1.6"

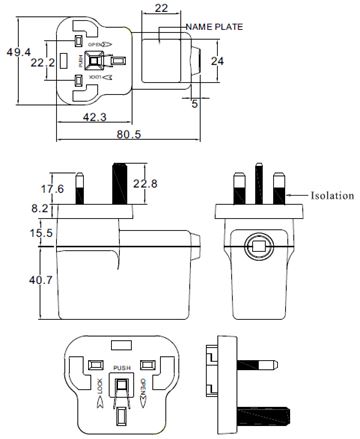

BS Type Models: 3.17" x 1.94" x 1.6"
Notes & safety
Notes: (1) “x” in model number represents interchangeable plug type. “x” can be: “U” = U Type= US Plug, “E”= E Type= EU Plug, “SA” = SA Type= 2-Pin AUS Plug, “BS”= BS Type= UK Plug, “KR”= KR Type= Korea Plug, or “AR”= AR Type= Argentina Plug.
(2) Averages efficiency at 25, 50, 75, and 100% of max. rated output current.
(3) Optional output connectors available. Please call factory for details.
(4) Standard Output Cables:
5~6V: UL1571, 14AWG, 1M
6~8V: UL2468, 18AWG, 1M
8~16V: UL2468, 16AWG, 1M
16~58V: UL2468. 20AWG, 5FT
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, CCC and J60950 Safety Approvals
Energy Star Compliance: Level VI
