WMIGPSU25
The WMIGPSU25 series of AC DC interchangeable wall mount power supplies provides up to 25 watts of output power in a small package. This series consists of single output models with output voltages ranging from 5~58VDC and universal input voltage range of 100~240VAC. There are six interchangeable plugs available for this series: US plug, EU plug, 2-Pin AUS plug, UK plug, Korean plug, and Argentina plug. Each model in this series is protected against short circuit, over voltage, and over current conditions and has UL60950-1; CSA C22.2, IEC 60950-1, EN60950-1, and J60950-1 safety approvals. Each model is also energy Level VI compliant. Please call factory for order details.

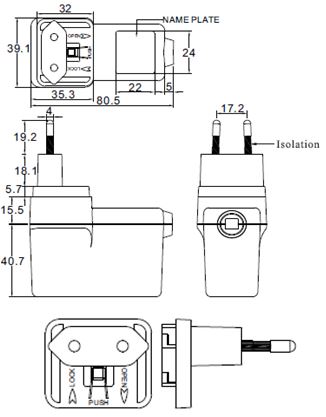

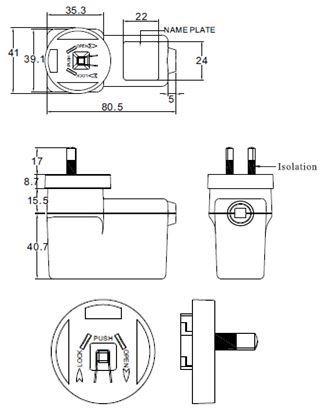

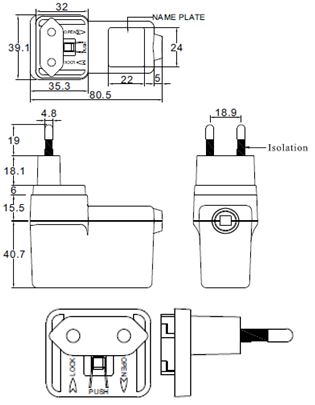

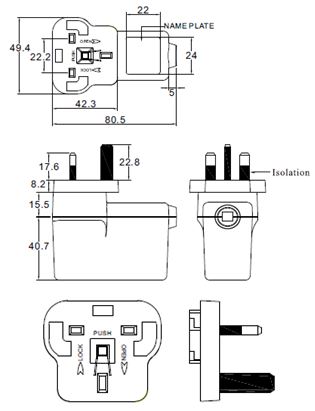

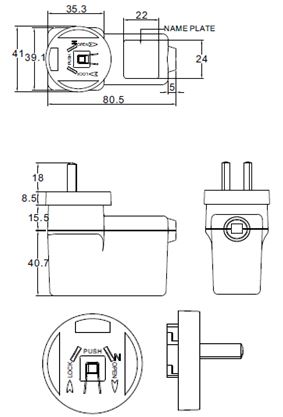

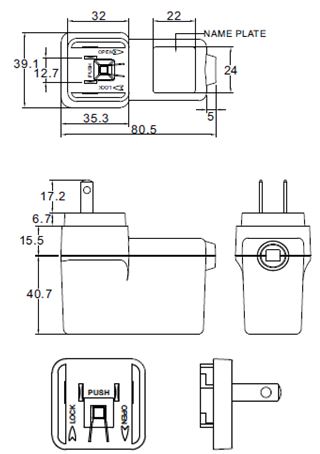

X: “U” for US Plug, “E” for EU Plug, “SA” for 2-Pin AUS Plug, “BS” for UK Plug, “KR” for Korea Plug, or “AR” for Argentina Plug
WMIGPSU25U-1= 5~6V Model with US Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIGPSU25x-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 4~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 3.66~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.125~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.19~0.926A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.926~0.757A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU25x-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.757~0.43A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58 |
| Output Current: | 4~3.33A, 3.66~2.75A, 3.125~2.27A, 2.27~1.92A, 1.92~1.56A, 1.56~1.19A, 1.19~0.926A, 0.926~0.757A, 0.757~0.43A |
| Output Power (Watts): | 20, 22, 25 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected by Zener Diode, 110-140% |
| General | |
| Efficiency: | Up to 86.35% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.29~6oz (150~170g) |
| Dimensions: | U Type, E Type, and KR Type Models: 3.17" x 1.54" x 1.6" SA and AR Type Models: 3.17" x 1.61" x 1.6" BS Type Models: 3.17" x 1.94" x 1.6" |
| Notes & safety | |
| Notes: | (1) “x” in model number represents interchangeable plug type. “x” can be: “U” = U Type= US Plug, “E”= E Type= EU Plug, “SA” = SA Type= 2-Pin AUS Plug, “BS”= BS Type= UK Plug, “KR”= KR Type= Korea Plug, or “AR”= AR Type= Argentina Plug. (2) Averages efficiency at 25, 50, 75, and 100% of max. rated output current. (3) Optional output connectors available. Please call factory for details. (4) Standard Output Cables: 5~13V: UL1571, 16AWG, 1M 13~21V: UL2468, 18AWG, 6FT 21~58V: UL2468, 20AWG, 6FT (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2, IEC60950-1, EN60950-1, J60950-1 |
| Energy Star Compliance: | Level VI |
