WMIGPSU18
The WMIGPSU18 series of AC DC interchangeable wall mount power supplies offers up to 18 watts of continuous output power. This series consists of single output models with output voltages ranging from 5 to 58VDC and a universal input voltage of 100~240VAC. Each model has over voltage, over current, and short circuit protection and all models (except for 7.5V models) are efficiency level VI compliant. Six different interchangeable plugs are available for this series: American type, European type, 2-Pin Australian type, UK type, Korean type, and Argentina type. Optional output connectors are also available for this series. Please call factory for ordering details.
• Universal Input Voltage of 100~240VAC
• Output Voltages Ranging from 5~58VDC
• Efficiency Level VI Compliant
• Single Output
• Optional Output Connectors Available
• Six Different Interchangeable Plugs Available
• Over Voltage, Over Current, and Short Circuit Protection
• UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, and J60950 Safety Approvals
• Low Leakage Current of <0.1mA
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIGPSU18U-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3~2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25~1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64~1.38A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38~1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13~0.86A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86~0.67A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67~0.55A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18U-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18E-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18SA-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| WMIGPSU18BS-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.94" x 1.6" | Get a Quote |
| WMIGPSU18KR-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 1.6" | Get a Quote |
| WMIGPSU18AR-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55~0.32A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.14" x 1.61" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5~6, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58 |
| Output Current: | 0.55~0.32A, 0.67~0.55A, 0.86~0.67A, 1.13~0.86A, 1.38~1.13A, 1.64~1.38A, 2.25~1.64A, 3.00~2.50A |
| Output Power (Watts): | 15, 18.04, 18.08, 18.09, 18.15, 18.56 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected by Zener Diode, 110-140% |
| General | |
| Efficiency: | Up to 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 4.94~5.64oz (140~160g) |

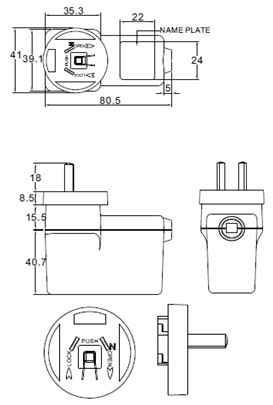

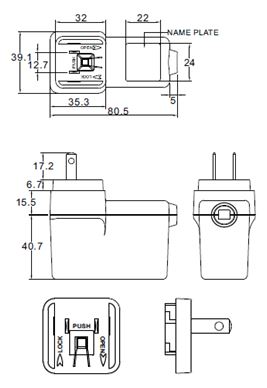

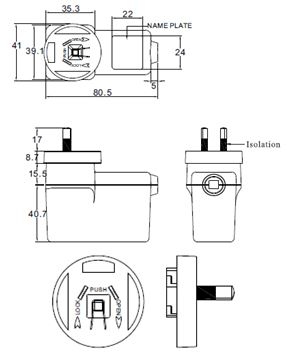

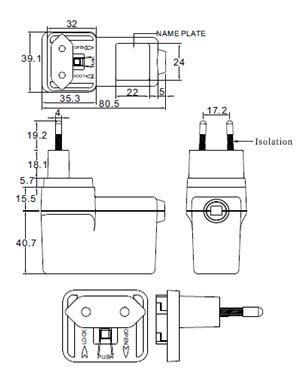

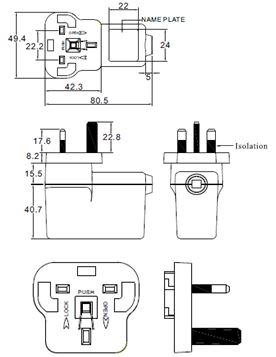

| Dimensions: | U Type, E Type, and KR Type Models: 3.17" x 1.54" x 1.6" BS Type Models: 3.17" x 1.94" x 1.6" SA Type and AR Type Models: 3.14" x 1.61" x 1.6" |
| Notes & safety | |
| Notes: | (1) “x” in each model name indicates the interchangeable plug type: “U”= U Type= American Plug, “E”= E Type= European Plug, “SA”=SA Type = 2-Pin Australian Plug, “BS”= BS Type = UK Plug, “KR”= KR Type = Korean Plug, “AR”= AR Type” = Argentina Plug. Please call factory for ordering details. (2) Averages the efficiency at 20, 50, 75, 100 of max. rated output current. (3) Standard Output Cables: 5~11V: UL1571, 16AWG, 1M 11~13V: UL2468, 18AWG, 1M 13~58V: UL2468, 22AWG 5FT (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, J60950 |
| Energy Star Compliance: | Level VI |
