WMIEPU26
The WMIEPU26 Series of Class II AC/DC wall mount power supplies offers up to 25 watts of output power in a 2.95” x 1.71” x 1.58” package. This series consists of single output models ranging from 5 to 48VDC with a wide input voltage range of 90~264VAC. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits and has UL60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 safety approvals. All units are RoHS2 and Energy Star Level VI compliant. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details.
• Class II
• Economy Version of our WMISPU26 Series
• Up to 25 Watts
• RoHS2 Compliant
• Energy Star 2.0, Efficiency Level VI Compliant
• 100% Burn In Tested
• 1 Year Warranty
• Wide Input Voltage Range: 90~264VAC, 47~63Hz
• MTBF>100,000 Hours
• UL60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 Safety Approvals
• Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits
• Interchangeable Plug Options: EU, UK, AUS, and US Types
• Optional Output Connectors
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEPU26-102x | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.75~3.30A | Output Power (W): 16.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-103x | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.50~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-104x | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 2.00~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-105x | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.92~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-106x | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.56~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-107x | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.19~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-108x | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.92~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-109x | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.75~0.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-110x | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.62~0.75A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| WMIEPU26-111x | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.53~0.62A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.95" x 1.71" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 0.53~0.62A, 0.62~0.75A, 0.75~0.92A, 0.92~1.19A, 1.19~1.56A, 1.56~1.92A, 1.92~2.27A, 2.00~2.75A, 2.50~3.07A, 2.75~3.30A |
| Output Power (Watts): | 16.5, 20, 22, 25 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7oz (200g) |

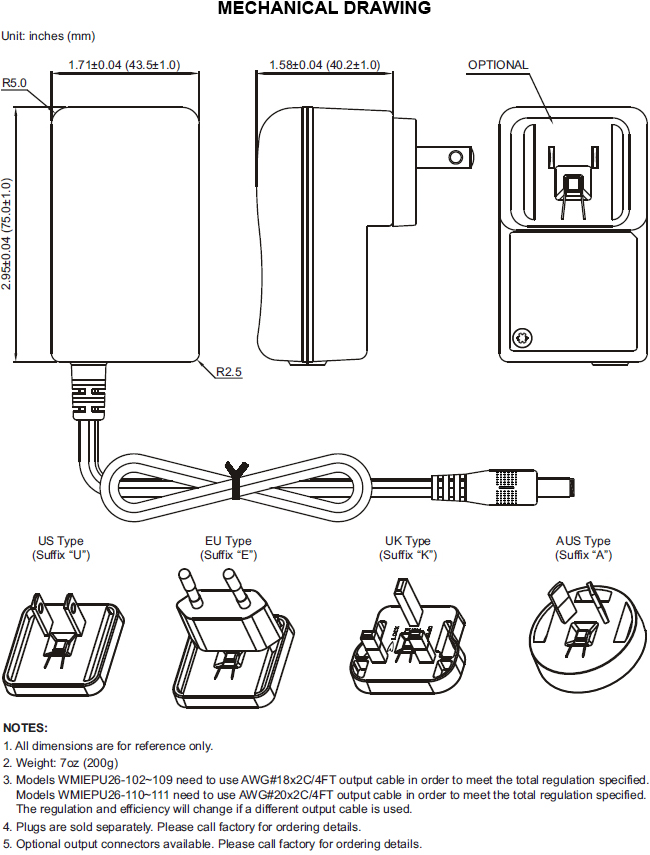

| Dimensions: | 2.95" x 1.71" x 1.58" (75.0 x 43.5 x 40.2 mm) |
| Notes & safety | |
| Notes: | (1) The “x” in the model number can be “U” for US type plug; “E” for EU type plug, “A” for AUS type plug, or “K” for UK type plug. (2) The output voltage is specified as a range (Ex: 40~48VDC); the customer must specify what they want the voltage set at. (3) Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is not allowed (4) At factory, each output is checked to be within voltage accuracy in 60% rated load condition. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Ripple & noise is measured by 20MHz BW limited oscilloscope & terminated each output with a 0.47uF capacitor @rated load and nominal line. (8) Hold up time is measured from end of last charging pulse to when main output drops down to low limit of main output @rated load and nom line. (9) Models WMIEPU26-102~109 need to use AWG#18x2C/4FT output cable in order to meet the total regulation specified. Models WMIEPU26-110~111 need to use AWG#20x2C/4FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. (10) Plugs are sold separately, please contact factory for ordering details. (11) Optional output connectors are available. Please contact factory for more information. (12) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN60950-1:2nd Edition) |
| Energy Star Compliance: | Level VI |
