WMIEPU15
The WMIEPU15 Series of Class II AC/DC wall mount power supplies offers up to 15 watts of output power in a 2.36” x 1.71” x 1.58” package. This series consists of single output models ranging from 5 to 48VDC with a wide input voltage range of 90~264VAC. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits and has UL 60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 safety approvals. All units are RoHS and Energy Star Level VI compliant. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details.
• Class II
• Up to 15 Watts
• RoHS Compliant
• Energy Star 2.0, Efficiency Level VI Compliant
• Single Output Voltages Available from 5VDC to 48VDC
• 100% Burn-In Tested
• Wide Input Voltage Range: 90~264VAC, 47~63Hz
• UL 60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 Safety Approvals
• Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits
• Interchangeable Plug Options: EU, UK, AUS, and US Types
• Optional Output Connectors
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEPU15-102x | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.00~2.40A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-103x | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.50~1.84A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-104x | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.22~1.68A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-105x | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.15~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-106x | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.94~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-107x | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.72~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-108x | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.55~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-109x | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.45~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-110x | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.37~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIEPU15-111x | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.32~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 0.32~0.37A, 0.37~0.45A, 0.45~0.55A, 0.55~0.72A, 0.72~0.94A, 0.94~1.15A, 1.15~1.36A, 1.22~1.68A, 1.50~1.84A, 2.00~2.40A |
| Output Power (Watts): | 12, 13.5, 15 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.8oz (165g) |

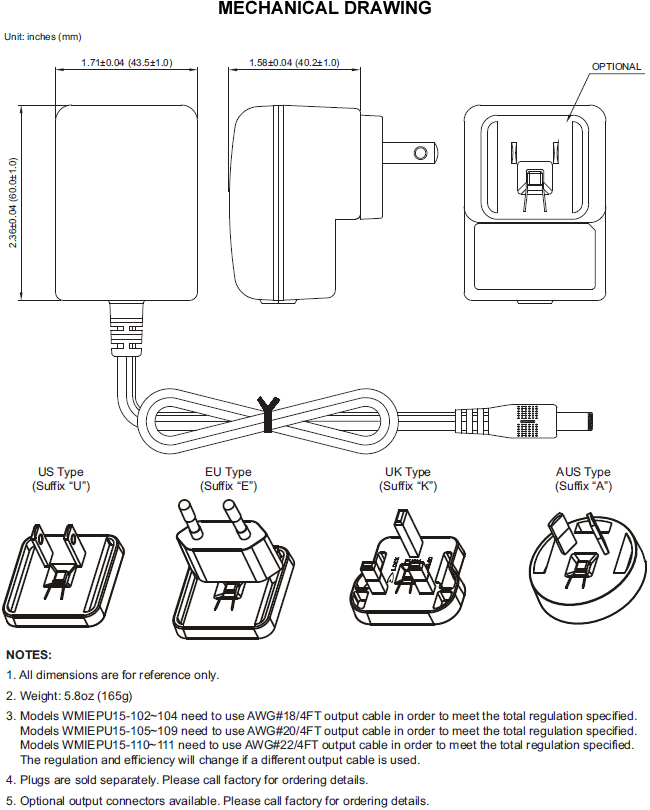

| Dimensions: | 2.36" x 1.71" x 1.58" (60 x 43.5 x 40.2 mm) |
| Notes & safety | |
| Notes: | (1) The “x” in the model number can be “U” for US type plug; “E” for EU type plug, “A” fur AUS type plug, or “K” for UK type plug. (2) The output voltage is specified as a range (Ex: 40~48VDC); the customer must specify what they want the voltage set at. (3) Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is not allowed. (4) At factory, in 60% load condition, each output is checked to be within voltage accuracy. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. (8) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (9) Models WMIEPU15-102~107 need to use AWG#18/4FT output cable in order to meet the total regulation specified. Models WMIEPU15-108~111 need to use AWG#20/4FT output cable in order to meet the total regulation specified. The electrical characteristics will be changed by modified output cable. (10) Plugs are sold separately, please contact factory for ordering details. (11) Optional output connectors are available. Please call factory for more information. (12) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN60950-1:2nd Edition) |
| Energy Star Compliance: | Level VI |
