WMIEA1012
The WMIEA1012 series of AC DC wall mount power supplies provides up to 12 watts of output power in a compact package. This series consists of single output models with input voltage ranging from 100-240VAC and output voltages ranging from 5V to 24V. There are five different interchangeable AC plug types available: US, China, EU, UK, SAA, or South Africa, and there are two output types available: USB or SR. All models in this series are RoHS and Level VI compliant and have over voltage, over current and short circuit protection. Models have UL/cUL UL60950, UL60065, CB, CE, FCC, and CCC safety approvals. Please call factory for order details.
X: “U” for USA Plug, “C” for China Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, “S” for South Africa Plug, or "6" for All Plugs
WMIEA1012AVKS = 5~8VDC Output with UK Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEA1012AVxU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012AVxS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012BVxU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012BVxS | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012CVxU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012CVxS | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012DVxU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEA1012DVxS | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~8, 9~11, 12~17, 18~24 |
| Output Current: | 0.66A, 1.0A, 1.33A, 2.4A |
| Output Power (Watts): | 12 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.47oz |

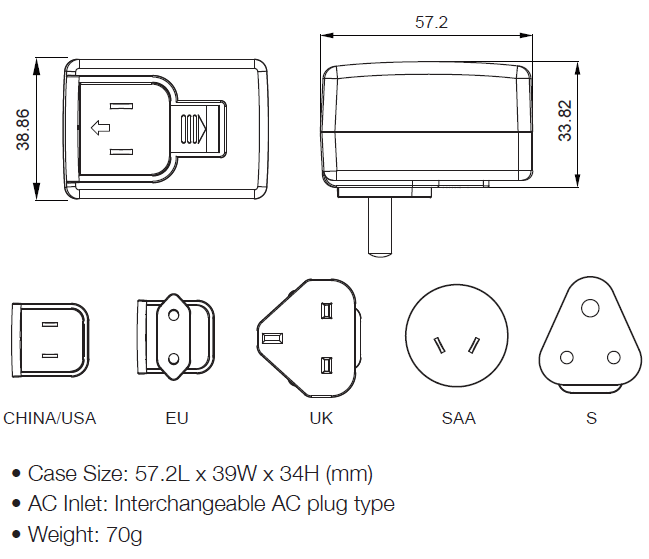

| Dimensions: | 2.25" x 1.54" x 1.34" |
| Notes & safety | |
| Notes: | (1) “x” in model number represents possible AC plug types. “x” can either be “U” for USA Plug, “C” for China, “E” for EU plug, “K” for UK plug, “A” for SAA plug, “S” for South Africa plug, or "6" for all plugs. (2) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Certificates listed are for reference only. Please contact factory for details. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950, UL60065, CB, CE, CCC, FCC |
| RoHS Compliance: | Yes |
