WMIAPU15
The WMIAPU15 series of Class II AC/DC wall mount power supplies offers up to 15 watts of output power in a 2.36” x 1.71” x 1.58” package. This series consists of single output models ranging from 5VDC to 48VDC with a 90~264VAC input voltage range and a -40°C to +70°C operating temperature. This series meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits and has UL/cUL (UL60950-1:2nd Edition), TUV/GS (EN60950-1:2nd Edition), and CE safety approvals. All units are RoHS and Energy Star Level V compliant. Plugs come in United States (“U” suffix), Europe (“E” suffix), Australia (“A” suffix), and United Kingdom (“K” suffix) types. Plugs are sold separately so please contact factory for ordering details
• Class II
• RoHS Compliant
• 12~ 15 Watts Output Power
• 85% High Efficiency
• Energy Star 2.0, Efficiency Level VI (11~48V Models)
• 90-264VAC Input Voltage Range
• 100% Burn-In Tested
• MTBF > 100,000 Hours
• Single Outputs Ranging from 5VDC to 48VDC

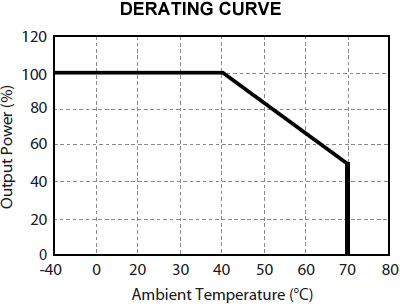

• -40°C to +70°C Operating Temperature Range
• Meets FCC Part-15 Class B & CISPR-22 Class B Emission Limits
• UL/cUL (UL 60950-1: 2nd ed.) & TUV/GS (EN 60950-1: 2nd ed.) Safety Approvals
• Interchangeable Plug Options: United States, Europe, Australia, & United Kingdom Types Available
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIAPU15-102K | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.40~2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-102A | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.40~2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-102E | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.40~2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-102U | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2.40~2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-103K | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.85~1.50A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-103U | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.85~1.50A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-103E | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.85~1.50A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-103A | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 1.85~1.50A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-104K | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.68~1.22A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-104A | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.68~1.22A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-104E | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.68~1.22A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-104U | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.68~1.22A | Output Power (W): 13.5 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-105E | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-105U | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-105K | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-105A | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-106U | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-106A | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-106E | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-106K | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-107U | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-107E | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-107A | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-107K | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-108A | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-108U | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-108E | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-108K | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-109U | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-109E | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-109A | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-109K | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-110U | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.45~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-110E | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.45~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-110A | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.45~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-110K | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.45~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-111U | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.37~0.32A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-111A | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.37~0.32A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-111K | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.37~0.32A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| WMIAPU15-111E | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.37~0.32A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.36" x 1.71" x 1.58" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 0.37~0.32A, 0.45~0.37A, 0.55~0.45A, 0.72~0.55A, 0.94~0.72A, 1.15~0.94A, 1.36~1.15A, 1.68~1.22A, 1.85~8A, 2.4~2.0A |
| Output Power (Watts): | 12, 13.5, 15 |
| General | |
| Efficiency: | 74.7-85% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.8oz (165g) |

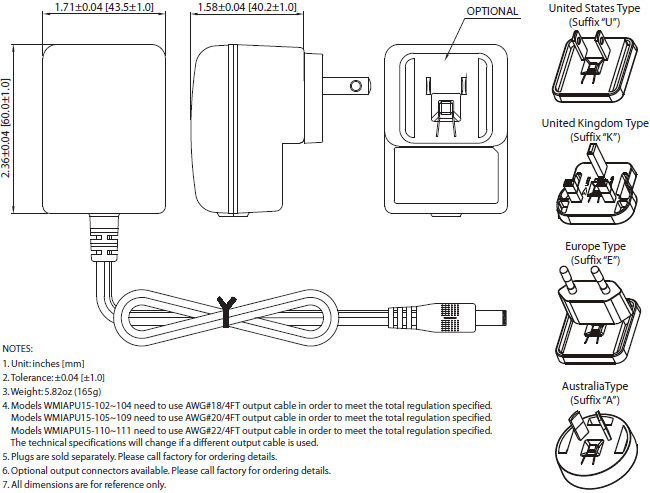

| Dimensions: | 2.36" x 1.71" x 1.58" (60.0 x 43.5 x 40.2 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number can be “U” for United States type plug; “E” for Europe type plug, “A” for Australia type plug, or “K” for United Kingdom type plug. Plugs are sold separately so please contact factory for ordering details. 2. The output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at. 3. Models WMIAPU15A-102~104 need to use AWG#18/4FT output cable in order to meet the total regulation specified. Models WMIAPU15A-105~109 need to use AWG#20/4FT output cable in order to meet the total regulation specified. Models WMIAPU15A-110~111 need to use AWG#22/4FT output cable in order to meet the total regulation specified. The technical specifications will change if a different output cable is used. 4. Optional output connectors are available for this series. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950-1: 2nd edition, TUV/GS EN60950-1: 2nd edition, CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd ed.) |
| Energy Star Compliance: | Level V |
