WMGPSU25
The WMGPSU25 series of AC DC wall mount power supplies offers up to 25 watts of continuous output power. This series consists of single output models with a universal input voltage range of 100~240VAC and output voltages ranging from 5~58VDC. Four different plugs are available to choose from: American, European, 2-Pin Australian, and UK types. Optional output connectors are also available. Each model is Efficiency Level VI compliant, and each model has short circuit, over voltage, and over current protection. Each model also has UL60950-1, CSA C22.2, IEC 60950-1, and EN60950-1 safety approvals. Please call factory for ordering details.
• Universal Input Voltage of 100~240VAC
• Meets EISA 2007/DoE (VI) & EU ErP/CoC (5)
• Single Output
• Optional Output Connectors Available
• Output Voltages Ranging from 5~58VDC
• Maximum Output Power of 25 Watts
• Short Circuit, Over Voltage, and Over Current Protection
• Low Leakage Current: <0.25mA
• American, European, 2-Pin Australian, and UK Plug Types Available
• UL60950-1, CSA C22.2, IEC 60950-1, EN60950-1, and J60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMGPSU25U-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 4~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 4~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 4~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 4~3.33A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 3.66~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 3.66~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 3.66~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 3.66~2.75A | Output Power (W): 22 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.125~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.125~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.125~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.125~2.27A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.27~1.92A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.92~1.56A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.56~1.19A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.19~0.926A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.19~0.926A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.19~0.926A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.19~0.926A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.926~0.757A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.926~0.757A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.926~0.757A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.926~0.757A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| WMGPSU25U-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.757~0.43A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25E-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.757~0.43A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.26" x 1.87" | Get a Quote |
| WMGPSU25SA-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.757~0.43A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.57" x 1.87" | Get a Quote |
| WMGPSU25BS-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.757~0.43A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 2.97" x 1.92" x 1.87" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58 |
| Output Current: | 4~3.33A, 3.66~2.75A, 3.125~2.27A, 2.27~1.92A, 1.56~1.19A, 1.19~0.926A, 0.926~0.757A, 0.757~0.43A |
| Output Power (Watts): | 20, 22, 25 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected by Zener Diode, 110-140% |
| General | |
| Efficiency: | Up to 86.35% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.29~6oz (150~170g) |

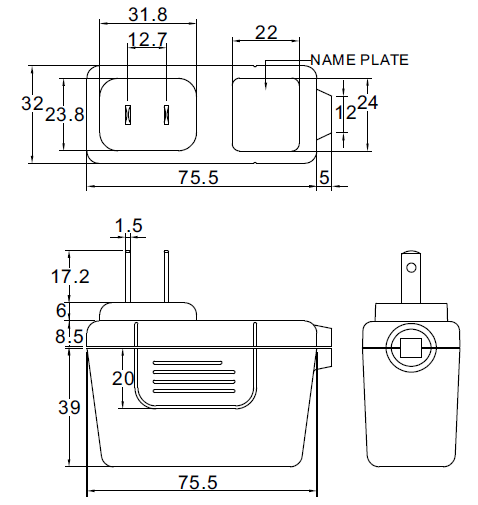

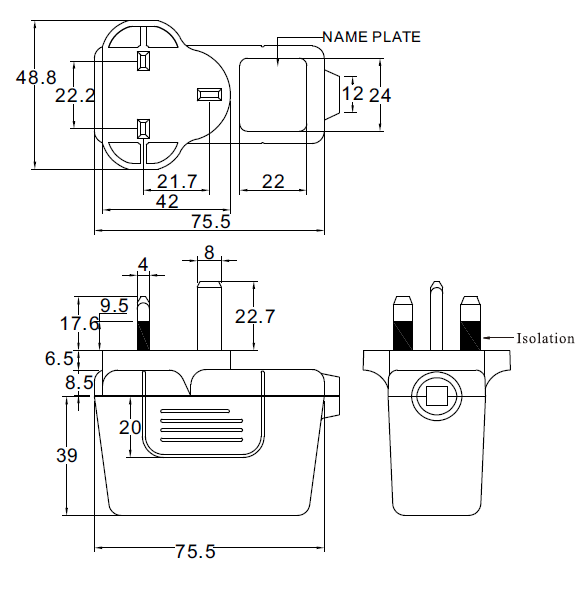

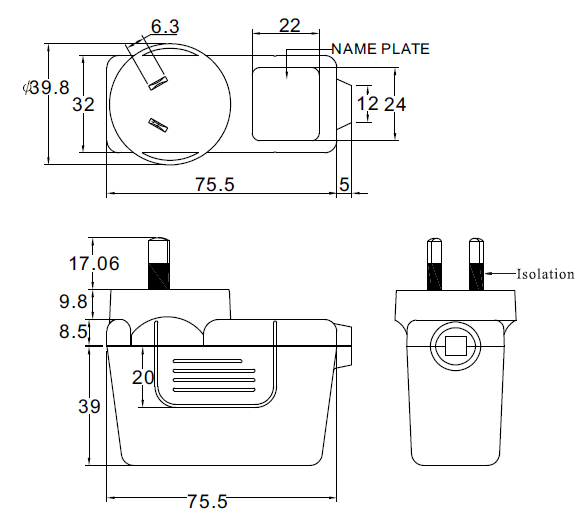

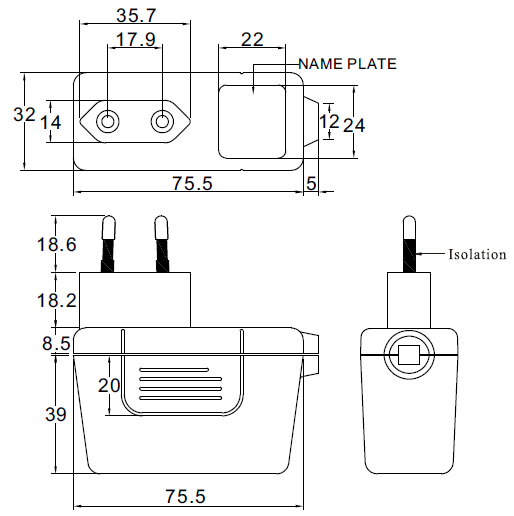

| Dimensions: | U Type and E Type Models: 2.97" x 1.26" x 1.87" SA Type Models: 2.97" x 1.57" x 1.87" BS Type Models: 2.97" x 1.92" x 1.87" |
| Notes & safety | |
| Notes: | (1) “x” in model name indicates plug type. “U”=U Type= US Plug, “E”=E Type= EU plug, “SA”=SA Type= Aus Plug, “BS”=BS Type=UK Plug. (2) Average Efficiency 25, 50, 75, 100% load (3) Optional Output Connectors available. Please call factory for ordering details. (4) Standard Output Cable: 5~13V: 16AWG/UL1571/1M 13~21V: 18AWG/UL2468/6FT 21~58V: 20AWG/UL2468/6FT (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, CSA C22.2, IEC 60950-1, EN60950-1 |
| Energy Star Compliance: | Level VI |
