WMEM1012

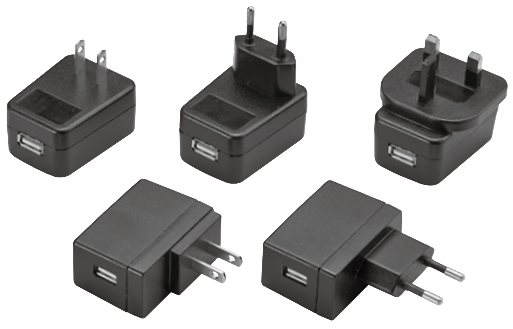

The WMEM1012 series of AC/DC medical wall mount power supplies offers up to 12 watts of output power in a compact vertical or horizontal package. This series consists of single output models with a wide input range of 100 to 240VAC. Many options are available for this series including USB or SR type, vertical or horizontal package, and US, EU, or UK plug. This series is RoHS compliant, meets CEC Level VI, and has over voltage, short circuit and over current protection. It also has UL/cUL, UL60601, CB 60601, CE, and FCC safety approvals.

• Input Range of 100 to 240VAC • Vertical Or Horizontal Package • USB or SR Type • US and EU Plugs Available for all Package Types • UK Plugs Available for Vertical Package Type • Meets CEC Level VI • RoHS Compliant • Over Voltage, Short Circuit, and Over Current Protection • UL/cUL, UL60601, CB 60601, CE, and FCC Safety Approvals
Part Number Setup:
X: “V” for Vertical or “H” or Horizontal.
Y: “U” for US Plug, “E” for EU Plug, or “K” for UK Plug. UK plug is not available for horizontal mount.
Z: “USB” for USB output, or “SR” for SR output.
Example:
WMEM1012A-VKUSB = 5~8VDC Vertical model with UK plug and USB output
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMEM1012A-xyx Input Voltage: 100~240 Output Voltage: 5~8 Output Current: 2.4A Output Power (W): 12 No. Outputs: S Case: Wall Mount Size: See Series Page Get a Quote
WMEM1012B-xyz Input Voltage: 100~240 Output Voltage: 9~11 Output Current: 1.33A Output Power (W): 12 No. Outputs: S Case: Wall Mount Size: See Series Page Get a Quote
WMEM1012C-xyz Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 1.0A Output Power (W): 12 No. Outputs: S Case: Wall Mount Size: See Series Page Get a Quote
WMEM1012D-xyz Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 0.66A Output Power (W): 12 No. Outputs: S Case: Wall Mount Size: See Series Page Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50-60Hz
Output
Output Voltage: 5~8, 9~11, 12~17, 18~24
Output Current: 0.66A, 1.0A, 1.33A, 2.4A
Output Power (Watts): 12
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -20 to 85ºC
Physical
Weight: 2.47oz (70g)

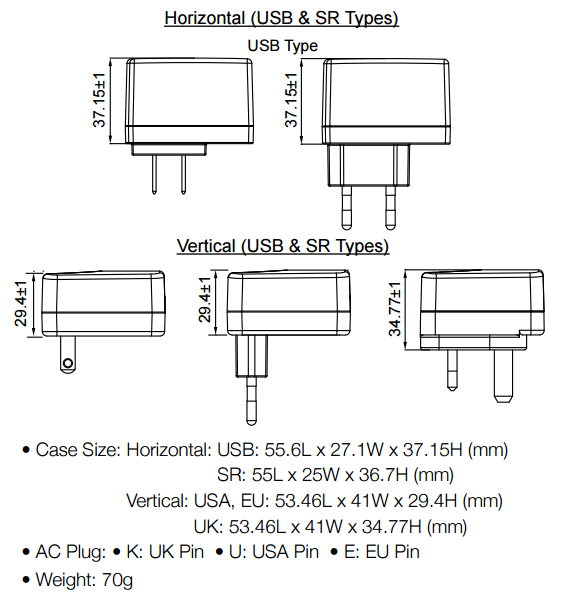

Dimensions: USB Horizontal Case: 2.19in x 1.07in x 1.46in
SR Horizontal Case: 2.17in x 0.98in x 1.44in
USA and EU Plug Vertical Case: 2.10in x 1.61in x 1.16in
UK Plug Vertical Case: 2.10in x 1.61in x 1.37in
Notes & safety
Notes: 1. “X” in model number indicates case direction. “X” can either be “V” for Vertical or “H” or Horizontal. “Y” in model number indicates plug type.
“Y” can either be “U” for US plug, “E” for EU plug, or “K” for UK plug. Please note that UK plug is not available for horizontal mount.
“Z” in model number indicates output type. “Z” can either be “USB” for USB output, or “SR” for SR output. Example: WMEM1012A-VKUSB would be a Vertical model with UK plug and USB output.
2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.\
3. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, UL60601, CB 60601, CE, FCC
Energy Star Compliance: Level VI
