WMEA1012
The WMEA1012 series of AC DC wall mount power supplies provides up to 12 watts of output power in a compact package. This series consists of single output models with input voltage ranging from 100-240VAC and output voltages ranging from 5V to 24V. There are three different AC plug types available, US, EU or UK plugs, and there are two output types available, USB or Strain Relief. The case type is also available in horizontal or vertical form. All models in this series are RoHS and Level VI compliant and have over voltage, over current and short circuit protection. Models have UL/cUL UL60950, UL60065, CB, CE, and FCC safety approvals.
• 12 Watts of Output Power
• Input Voltage Range of 100 to 240VAC
• Output Voltages Ranging from 5~24V
• RoHS Compliant
• Level VI Compliant
• Over Voltage, Over Current, and Short Circuit Protection
• USA, UK, and EU AC Plugs Available
• Horizontal or Vertical Package Available
• USB or SR (Strain Relief) Output Types Available
• UL/cUL UL60950, UL60065, CB, CE, and FCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1012AVUU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012AVEU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012AVKU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012AVUS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012AVES | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012AVKS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012BVUU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012BVEU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012BVKU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012BVUS | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012BVES | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012BVKS | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012CVUU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012CVEU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012CVKU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012CVUS | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012CVES | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012CVKS | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012DVUU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012DVEU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012DVKU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012DVUS | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012DVES | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.11" | Get a Quote |
| WMEA1012DVKS | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.19" x 1.07" x 1.37" | Get a Quote |
| WMEA1012AHUU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012AHEU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012AHUS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012AHES | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012BHUU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012BHEU | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012BHUS | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012BHES | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012CHUU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012CHEU | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012CHUS | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012CHES | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012DHUU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012DHEU | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012DHUS | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| WMEA1012DHES | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.1" x 1.61" x 1.46" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~8, 9~11, 12~17, 18~24 |
| Output Current: | 0.66A, 1.0A, 1.33A, 2.4A |
| Output Power (Watts): | 12 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.47oz |

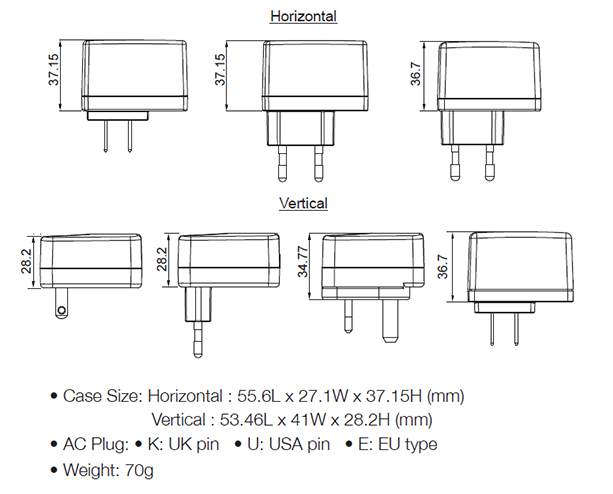

| Dimensions: | Vertical US and EU Models: 2.19" x 1.07" x 1.11" Vertical UK Models: 2.19" x 1.07" x 1.37" Horizontal US and EU Models: 2.1" x 1.61" x 1.46" |
| Notes & safety | |
| Notes: | (1) “x” in model number represents possible AC plug types. “x” can either be “U” for USA Plug, “E” for EU plug, or “K” for UK plug. Please note that UK plug is only available in vertical case form. (2) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Certificates listed are for reference only. Please contact factory for details. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950, UL60065, CB, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
