WMCTN100

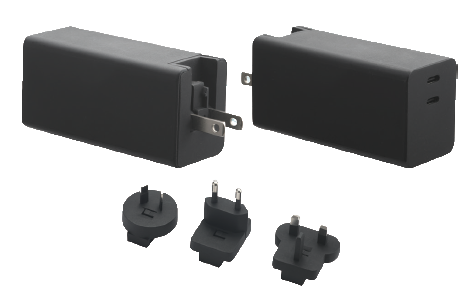

The WMCTN100 series of AC/DC wall mount power supplies offers 15-100 watts of output power in a 1.73” x 1.38” x 3.43” package. This series consists of single output models with an input range of 100-240VAC. Three types of AC plugs are available for this series: USA, Japan and Taiwan. Each model in this series has over voltage, short circuit, and over current protection, and has IEC/EN/UL 62368-1 3rd edition, EMC: IEC60601-1-2 (Edition 4.1), and IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2) safety approvals.
“x” in model number indicates plug type. “x” can either be “U” for US/changeable plug or “V” for changeable plug.
WMCTN100-200V = Model with Changeable Plug
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMCTN100-200x | Input Voltage: 100~240 | Output Voltage: 5~20 | Output Current: 3~5A | Output Power (W): 15~100 | No. Outputs: S | Case: Wall Mount | Size: 1.73" x 1.38" x 3.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 20 |
| Output Current: | 3A, 5A |
| Output Power (Watts): | 15, 27, 36, 45, 65 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| General | |
| Environmental | |
| Operating Temperature: | -20 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 8.11oz (230g) |
| Dimensions: | 1.73in x 1.38in x 3.43in (44mm x 35mm x 87mm) |
| Notes & safety | |
| Notes: | 1. “x” in model number indicates plug type. “x” can either be “U” for US/changeable plug or “V” for changeable plug. 2. Built in USB-PD chip dynamically negotiates the optimal voltage and current to deliver safe and efficient energy transfer. All five output voltages can be served by one model. 3. This product is Listed to applicable standards and requirements by UL *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL 62368-1 3rd Edition, IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2) |
