WMAPU10

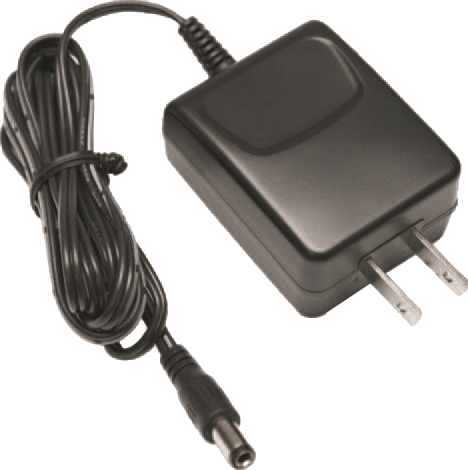

The WMAPU10 series of Class II AC/DC wall mount power supplies provides 10 Watts of continuous output power in a 2.20 x 1.73 x 1.08 inch package. This series consists of single output models ranging from 5VDC to 48VDC with a 90~264VAC input voltage range and a -40°C to +70°C operating temperature. All units are UL 94V-1, RoHS, and CEC & Energy Star Level VI compliant. This series also meets new CE requirements and FCC class B emission limits. All models have UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. All units have been 100% burn-in tested.

• Class II • RoHS Compliant • 10 Watts Output Power • 85% High Efficiency • Energy Star 2.0, Efficiency Level VI • 90-264VAC Input Voltage Range • 100% Burn-In Tested • 2 Prong Plug-in Mains Connector • Single Outputs Ranging from 5VDC to 48VDC • -40°C to +70°C Operating Temperature Range • Meets FCC Class B Emission Limits • UL/cUL (UL 60950-1: 2nd ed.) & TUV/GS (EN 60950-1: 2nd ed.) Safety Approvals • Optional Output Connectors Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMAPU10-102 Input Voltage: 90~264 Output Voltage: 5~5.99 Output Current: 1.60 ~ 1.33 A Output Power (W): 8 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-103 Input Voltage: 90~264 Output Voltage: 6~8 Output Current: 1.33 ~ 1.00 A Output Power (W): 8 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-104 Input Voltage: 90~264 Output Voltage: 8~11 Output Current: 1.25 ~ 0.90 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-105 Input Voltage: 90~264 Output Voltage: 11~13 Output Current: 0.90 ~ 0.76 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-106 Input Voltage: 90~264 Output Voltage: 13~16 Output Current: 0.76 ~ 0.62A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-107 Input Voltage: 90~264 Output Voltage: 16~21 Output Current: 0.62 ~ 0.47 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-108 Input Voltage: 90~264 Output Voltage: 21~27 Output Current: 0.47 ~ 0.37 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-109 Input Voltage: 90~264 Output Voltage: 27~33 Output Current: 0.37 ~ 0.30 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-110 Input Voltage: 90~264 Output Voltage: 33~40 Output Current: 0.30 ~ 0.25 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMAPU10-111 Input Voltage: 90~264 Output Voltage: 40~48 Output Current: 0.25 ~ 0.20 A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48
Output Current: 1.60~1.33A, 1.33~1.00A, 1.25~0.90A, 0.90~0.76A, 0.76~0.62A, 0.62~0.47A, 0.47~0.37A, 0.37~0.30A, 0.30~0.25A, 0.25~0.20A
Output Power (Watts): 8, 10
General
Efficiency: 71-85%
Isolation: 4242VDC min. (primary to secondary)
Environmental

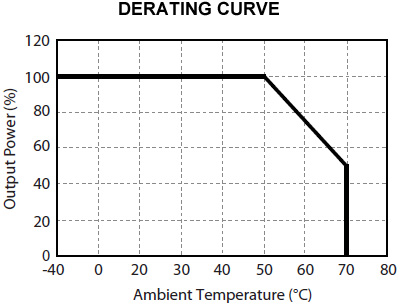

Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 3.17oz (90g)

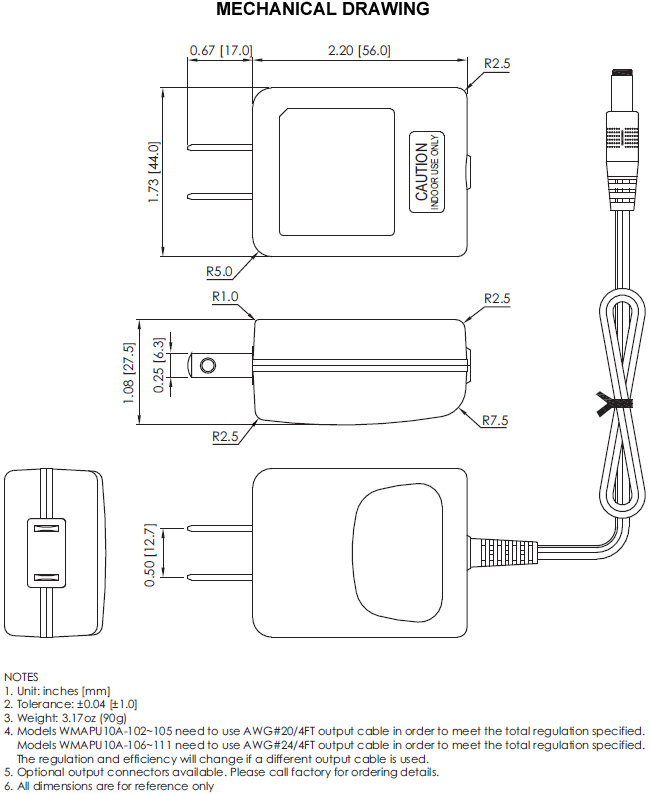

Dimensions: 2.20" x 1.73" x 1.08" (56.0 x 44.0 x 27.5 mm)
Notes & safety
Notes: 1. The output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at.
2. Models WMAPU10A-102~105 need to use AWG#20/4FT output cable in order to meet the total regulation specified.
Models WMAPU10A-106~111 need to use AWG#24/4FT output cable in order to meet the total regulation specified.
The regulation and efficiency will change if a different output cable is used.
3. Optional output connectors are available for this series. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL (UL60950-1: 2nd edition), TUV/GS (EN60950-1: 2nd edition), CE
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS (EN 60950-1: 2nd edition)
Energy Star Compliance: Level VI
