PSYF350

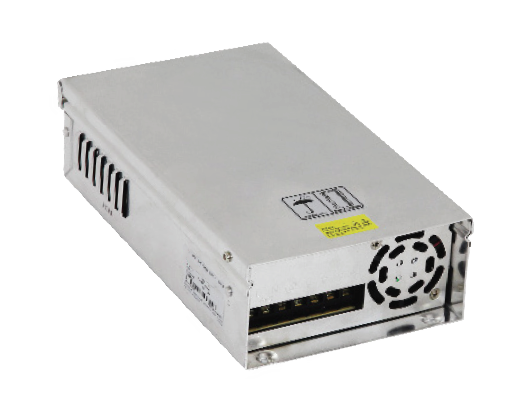

The PSYF350 series of AC/DC power supplies offers 350 watts of output power in a 9.31” x 5.45” x 2.66” enclosed case. This series consists of single output models with a wide input voltage range of 170~264VAC and built-in EMI filter. Each model in this series is suitable for outdoor or damp locations, has IP21 design, and has over load, short circuit, and over temperature protection. This series has GB4943, UL60950, and EN60905 safety approvals. Please contact factory for ordering information.
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
---|---|---|---|---|---|---|---|---|
PSYF350-12S | Input Voltage: 170~264 | Output Voltage: 12 | Output Current: 29A | Output Power (W): 350 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.31" x 5.45" x 2.66" | Get a Quote |
PSYF350-24S | Input Voltage: 170~264 | Output Voltage: 24 | Output Current: 14.6A | Output Power (W): 350 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.31" x 5.45" x 2.66" | Get a Quote |
PSYF350-36S | Input Voltage: 170~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 350 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.31" x 5.45" x 2.66" | Get a Quote |
PSYF350-48S | Input Voltage: 170~264 | Output Voltage: 48 | Output Current: 7.3A | Output Power (W): 350 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.31" x 5.45" x 2.66" | Get a Quote |
Specification | Value |
---|---|
Input | |
Input Voltage (Nominal): | - |
Input Voltage Range: | 170~264 |
Input Frequency: | 47 to 63Hz |
Output | |
Output Voltage: | 12, 24, 36, 48 |
Output Current: | 7.3A, 10A, 14.6A, 29A |
Output Power (Watts): | 350 |
Output Trim/Adjustability: | ±10% |
Short Circuit Protection: | Yes |
Over Voltage Protection: | Yes |
Thermal Protection: | Yes |
General | |
Efficiency: | 86% |
Environmental | |
Operating Temperature: | -20 to 50ºC |
Physical | |
Weight: | 2.31lbs (1.05kg) |

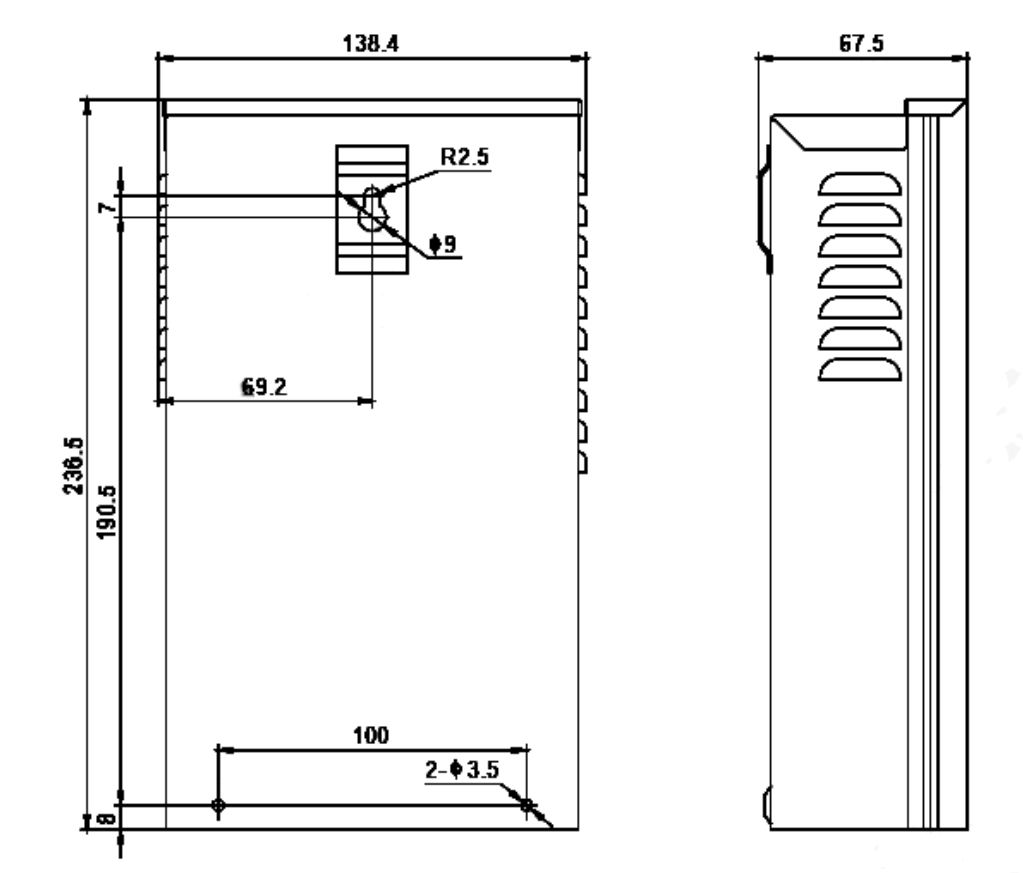

Dimensions: | 9.31in x 5.45in x 2.66in (236.5mm x 138.4mm x 67.5mm) |
Notes & safety | |
Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
