PSTCM30
The PSTCM30 series of medical AC/DC power modules offers up to 30 watts of output power in a fully encapsulated 2.52” x 1.8” x 0.93” plastic case. This series consists of regulated single output models with universal input range of 90~264VAC and low ripple & noise. Each model in this series has over power, over voltage, and short circuit protection, isolation class II, and a screw terminal optional available. This series has CE, CB, UL, and cUL approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSTCM30-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 5000mA | Output Power (W): 25 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSTCM30-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSTCM30-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSTCM30-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 440Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1250mA, 2000mA, 2500mA, 5000mA |
| Output Power (Watts): | 25, 30 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +80ºC |
| Storage Temperature: | -40 to +90ºC |
| Physical | |
| Weight: | 4.76oz (135g) |

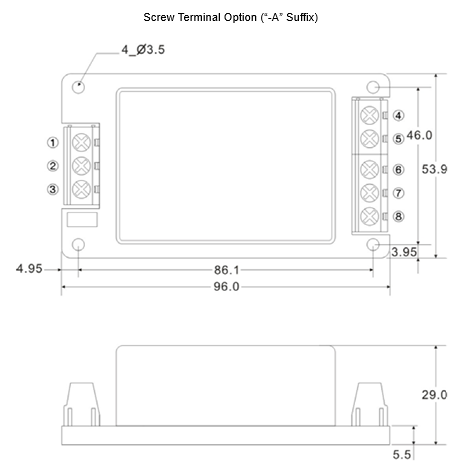

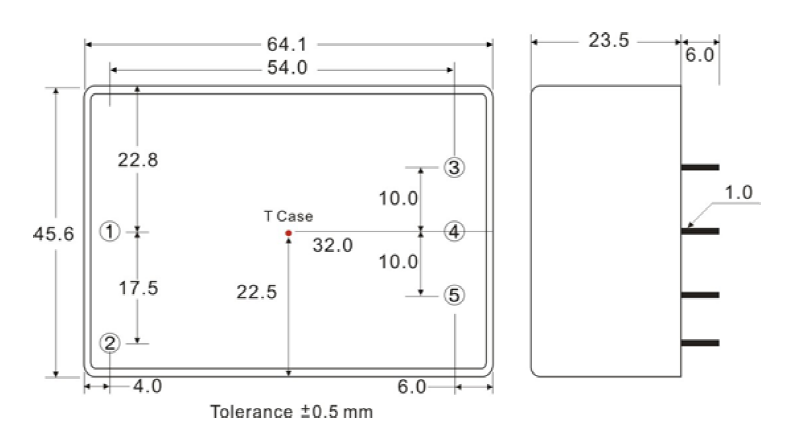

| Dimensions: | Standard: 2.52in x 1.8in x 0.93in Screw Terminal: 3.78in x 2.12in x 1.14in |
| Case Material: | Plastic Resin (Flammability to UL 94V-0) |
| Notes & safety | |
| Notes: | 1. This product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate specific safety and regulatory standards other than the ones listed in this datasheet. 2. To indicate screw terminal, add “-A” to end of model number. Ex. PSTCM30-5S-A 3. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 4. Natural Convection is about 20LFM but is not equal to still air (0 LFM) 5. Safety approvals cover frequency 47-63Hz. 6. Radiation Class A for screw terminal models. 7. It’s recommended to add Varistor 14S471K at L/N input side in parallel. 8. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10), CAN/CSA-C22.2 No. 60601-1 (2008), 2 x MOPP, IEC 60950-1:2005 (2nd Edition) + Am 1:2009 + Am 2:2013, IEC 60601-1:2005 (3rd Edition) + CORR. 1 (2006) + CORR. 2 (2007) + AM1 (2012) or IEC 60601-1 (2012 reprint) |
