PSSUU151

The PSSUU151 series of AC/DC switching mode power supplies provides 150 Watts of continuous output power in a compact, U frame constructed design. This series has single output supplies with a universal input range of 90~264VAC. These units are ideally suited for use in disc drive systems, microprocessor based systems, portable equipment, and many other applications. All models meet FCC Part-15 class B and CISPR-22 class B emission limits. These supplies also comply with UL/cUL (UL 60950-1), TUV/Bauart (EN 60950-1), and new CE requirements. All units are 100% burn-in tested.

● Class I Insulation ● Internal EMI Filter ● 2-pin Input Connector ● Power Factor Correction ● Synchronous Rectification ● Power Fail Detect (Optional) ● Over Voltage Protection (Crowbar Design) ● Input Surge Current and Over Load Protection ● Output Voltage Available from 9VDC thru 48VDC ● 3-pin Input Connector Available (See PSSUU150 Series)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSSUU151-104 Input Voltage: 90~264 Output Voltage: 9 Output Current: 16 A Output Power (W): 144 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-105 Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.5 A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-106 Input Voltage: 90~264 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-107 Input Voltage: 90~264 Output Voltage: 18 Output Current: 8.33 A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-108 Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25 A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-109 Input Voltage: 90~264 Output Voltage: 30 Output Current: 5A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-110 Input Voltage: 90~264 Output Voltage: 36 Output Current: 4.17 A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSSUU151-111 Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.13 A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 9, 12, 15, 18, 24, 30, 36, 48
Output Current: 3.13A, 4.17A, 5A, 6.25A, 8.33A, 10A, 12.5A, 16A
Output Power (Watts): 144, 150
Over Voltage Protection: 112-132%
General
Efficiency: 88%
Isolation: 4242VDC
Environmental
Operating Temperature: -0 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.23 lb.

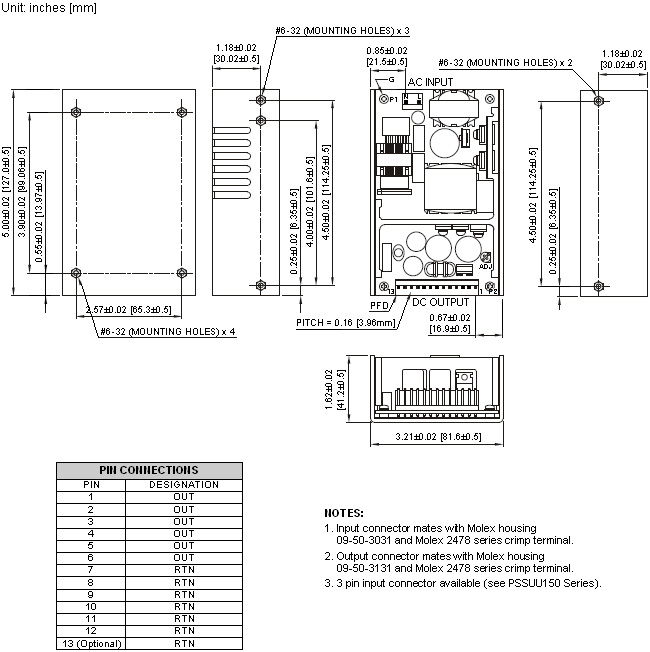

Dimensions: 5" x 3.21" x 1.62" (127 x 81.6 x 41.16 mm)
Notes & safety
Notes: 1. Input connector mates with Molex housing 09-50-3031 and Molex 2478 series crimp terminal.
2. Output connector mates with Molex housing 09-50-3131and Molex 2478 series crimp terminal.
3. 3 pin input connector available: See PSSUU150 Series.
Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
TUV Efficiency Level: TUV/Bauart EN60950-1
