PSSNP-P15
The PSSNP-P15 series of AC/DC open frame medical power supplies offers rated output power of 154 watts, maximum output power of 185 watts, and peak output power of 220 watts in a 5” x 3” x 1.07” package. This series consists of dual output models with a wide input voltage range of 90-264VAC. Each model in this series has high efficiency as well as over load, short circuit, and over voltage protection. This series has UL/CSA/IEC60950-1, 2nd edition and ANSI/AMMI/CSA/IEC60601-1, 3rd edition safety approvals.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-P157-S | Input Voltage: 90~264 | Output Voltage: 12, 5VSB | Output Current: 12A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P158-S | Input Voltage: 90~264 | Output Voltage: 15, 5VSB | Output Current: 9.6A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P155-S | Input Voltage: 90~264 | Output Voltage: 18, 5VSB | Output Current: 8A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P159-S | Input Voltage: 90~264 | Output Voltage: 24, 5VSB | Output Current: 6A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P15G-S | Input Voltage: 90~264 | Output Voltage: 28, 5VSB | Output Current: 5.1V, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P15J-S | Input Voltage: 90~264 | Output Voltage: 36, 5VSB | Output Current: 4A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| PSSNP-P15T-S | Input Voltage: 90~264 | Output Voltage: 48, 5VSB | Output Current: 3A, 2A | Output Power (W): 154 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.07" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48, 5VSB |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 12A, 9.6A, 8A, 6A, 5.1A, 4A, 3A, 2A |
| Output Power (Watts): | 154 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) |
| Environmental | |
| Operating Temperature: | -20 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 9.77oz (277g) |

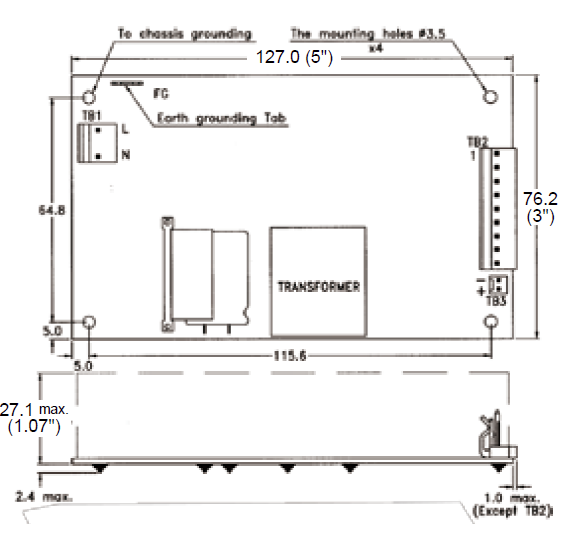

| Dimensions: | 5in x 3in x 1.07in |
| Notes & safety | |
| Notes: | 1. Most power supplies will create audible burst sound at light load, if the application wants to meet input power <0.5W at standby mode. PSSNP-P15x-S is for ITE & Medical applications which require standby mode. 2. Standby Power consumption with system: For computers and displays, energy star in U.S. and ErP Regulation in Europe require the input power should be less than 0.5W at standby mode. 3. Output Load: 154W for convection cooling 4. Peak Load Duration: Peak 220W can last for 5 sec. 5. EMI Grounding: If there is a metal sheet under the power supply, connect the EMI ground to that metal sheet. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/IEC60905-1, 2nd Edition, ANSI/AMMI/CSA/IEC60601-1, 3rd Edition |
