PSSNP-HFA
The PSSNP-HFA series of AC/DC medical open frame power supply offers rated output power of 100 watts, max output power of 130 watts, or peak output power of 150 watts in a compact 4” x 2” x 1.18~1.34” package. This series consists of single output models with input voltage range of 90 to 264VAC. Each model in this series is designed for BF applications and has over load, short circuit, and over voltage protection. This series has UL/CSA/EN60950-1, 2nd edition and ANSI/AMMI/CSA/EN60601-1, 3rd edition safety approvals as well as CE mark.
• Input Voltage Range of 90 to 264VAC
• Design for BF application
• Convection Cooling for Rated Power
• Peak Load (1.5 x rated current, Vo=rated for 5 sec)
• Safety Class II & EMI Class B
• Over Load, Short Circuit, Over Voltage Protection
• UL/CSA/EN60950-1, 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3.1 Edition Safety Approvals
• CE Mark
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-HFA7 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.32" | Get a Quote |
| PSSNP-HFA7-A | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.32" | Get a Quote |
| PSSNP-HFA8 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 6.6A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.34" | Get a Quote |
| PSSNP-HFA8-A | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 6.6A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.34" | Get a Quote |
| PSSNP-HFA9 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.18" | Get a Quote |
| PSSNP-HFA9-A | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.18" | Get a Quote |
| PSSNP-HFAT | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.2" | Get a Quote |
| PSSNP-HFAT-A | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.2" | Get a Quote |
| PSSNP-HFA7-H | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.32" | Get a Quote |
| PSSNP-HFA8-H | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 6.66A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.34" | Get a Quote |
| PSSNP-HFA9-H | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.18" | Get a Quote |
| PSSNP-HFAT-H | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.2" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 48 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 8.5A, 6.66A, 4.17A, 2.1A |
| Output Power (Watts): | 100 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | Approx. 5.82oz (165g) |

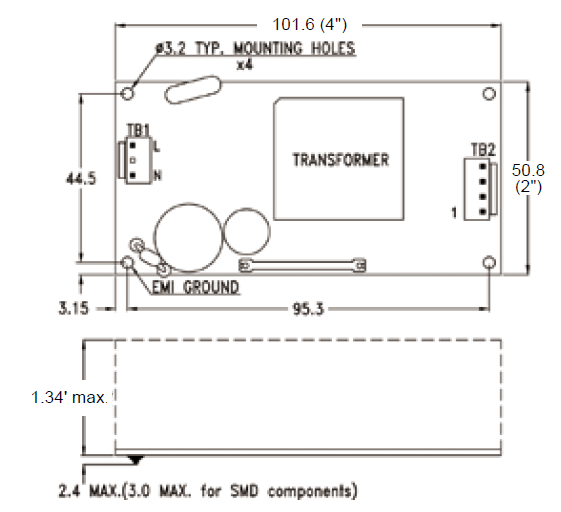

| Dimensions: | PSSNP-HFA7/-A/-H: 4in x 2in x 1.32in (101.6mm x 50.8mm x 33.53mm) PSSNP-HFA8/-A/-H: 4in x 2in x 1.34in (101.6mm x 50.8mm x 34.04mm) PSSNP-HFA9/-A/-H: 4in x 2in x 1.18in (101.6mm x 50.8mm x 29.97mm) PSSNP-HFAT/-A/-H: 4in x 2in x 1.20in (101.6mm x 50.8mm x 30.48mm) |
| Notes & safety | |
| Notes: | 1. Most power supplies will create audible burst sound at light load, if the application meets input power <0.5W at standby mode PSSNP-HFAx is for ITE & Medical applications which require standby mode. PSSNP-HFAx-A is for ITE & Medical applications but without burst sound and no standby mode. PSSNP-HFAx-H is for Home Healthcare application, input class II and EMI class B. 2. Standby Power Consumption with system: For computers and displays, Energy Star in U.S. and ErP regulation in Europe require the input power should be less than 0.5W at standby mode. 3. Output Load: 100W for Convection cooling, 130W for forced air cooling. 4. Peak Load Duration: Peak 150W can last for 5 sec. 5. EMI Grounding: if there is metal sheet under the power supply, connect the EMI ground to that metal sheet. 6. Safety application will be proceeded upon request. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN60950-1, 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File |
| Energy Star Compliance: | 6.0 for Computers and Displays |
