PSSNP-HF8

The PSSNP-HF8 series of AC/DC medical open frame power supply offers a maximum of 100 watts of output power in a 4” x 2” x 1.12” package. This series consists of single output models with a wide input voltage range of 90-264VAC. Each model in this series has over load, short circuit, and over voltage protection and a high mechanical torque startup. This series has UL/CSA/EN60950-1 2nd edition and ANSI/AMMI/CSA/EN60601-1, 3.1 edition safety approvals. Please call factory for order details.

• Input Voltage Range of 90-264VAC • Design for BF application • Meets 2 X MOPP and Contact Leakage <100uA • Follows ErP Directive of EU • High Mechanical Torque Startup • Safety Class II & EMI Class B • Convection Cooling for Rated Load • Forced Air for Max. Load • Over Load, Short Circuit, Over Voltage Protection • UL/CSA/EN60950-1, 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3.1 edition Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSSNP-HF87 Input Voltage: 90~264 Output Voltage: 12 Output Current: 6.66A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF87A Input Voltage: 90~264 Output Voltage: 12 Output Current: 6.66A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF88 Input Voltage: 90~264 Output Voltage: 15 Output Current: 5.33A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF88A Input Voltage: 90~264 Output Voltage: 15 Output Current: 5.33A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF89 Input Voltage: 90~264 Output Voltage: 24 Output Current: 3.33A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF89A Input Voltage: 90~264 Output Voltage: 24 Output Current: 3.33A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF8T Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.67A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
PSSNP-HF8TA Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.67A Output Power (W): 80 No. Outputs: S Case: Open Frame Size: 4" x 2" x 1.12" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: See Datasheet
Output Current: 6.66A, 5.33A, 3.33A, 1.67A
Output Power (Watts): 80
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: Up to 87%
Isolation: Primary to Ground: 1MOPP (1500VAC)
Primary to Secondary: 2MOPP (4000VAC)
Secondary to Ground: 1MOPP (1500VAC)
Environmental
Operating Temperature: -40 to +70ºC
Storage Temperature: -40 to +85ºC
Physical
Weight: 5.64oz (160g)

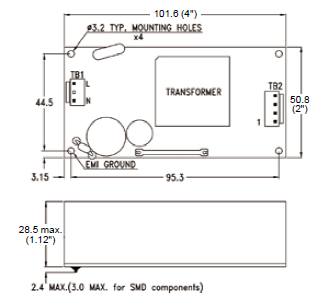

Dimensions: 4in x 2in x 1.12in
Notes & safety
Notes: 1. Most power supplies will create audible burst sound at light load, if the application wants to meet input power <0.5W at standby mode.
PSSNP-HF8x is for ITE & Medical applications which require standby mode.
PSSNP-HF8x-A is for ITE & Medical applications but without burst sound and no standby mode.
2. The safety application will be proceeded upon request.
3. Standby power consumption with system: for computers and displays, Energy Star in U.S. and ErP regulation in Europe require the input power should be less than 0.5W at standby mode.
4. Output Load: 80W for convection cooling; 100W for forced air cooling.
5. Peak load duration: peak 120W can last for 5 sec.
6. EMI Grounding: if there is a metal sheet under the power supply, connect the EMI ground to that metal sheet.
7. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CSA/EN60950-1, 2nd Edition, ANSI/AAMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File
Energy Star Compliance: 6.0 for Computers and Displays
