PSSNP-HF6
The PSSNP-HF6 series of AC/DC medical open frame power supplies offers rated output power of 60 watts, a max output power of 72 watts, and a peak output power of 96 watts in a 3.17” x 2” x 0.95” package. This series consists of single output models with a wide input voltage range of 90-264VAC. Each model in this series has high mechanical torque start-up as well as over load, short circuit, and over voltage protection. This series has UL/CSA/EN60950-1, 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3.1 edition safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-HF67 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF67A | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF68 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF68A | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF69 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF69A | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF6T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| PSSNP-HF6TA | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 3.17" x 2" x 0.95" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 5A |
| Output Power (Watts): | 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) 2MOPP (4000VAC) 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 4.02oz (114g) |

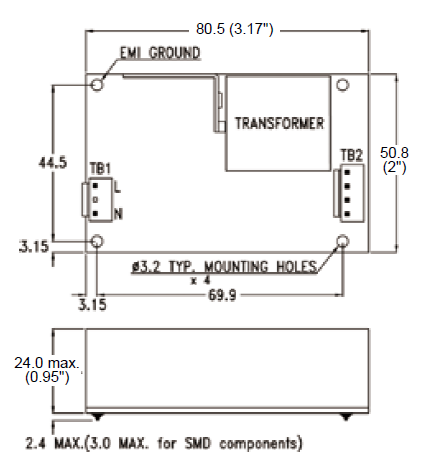

| Dimensions: | 3.17in x 2in x 0.95in |
| Notes & safety | |
| Notes: | 1. Most of the power supplies will create audible burst sound at light load, if the application wants to meet input power <0.5W at standby mode. PSSNP-HF6x is for ITE & Medical applications which require standby mode. PSSNP-HF6xA is for ITE & Medical applications but without burst sound and no standby mode. 2. The safety application will be proceeded upon request. 3. Standby power consumption with system: for computers and displays, Energy Star in U.S. and ErP regulation in Europe require the input power to be less than 0.5W at standby mode. 4. Output Load: 60W for convection cooling; 72W for forced air cooling 5. Peak load duration: Peak 96W can last for 5 sec. 6. EMI Grounding: If there is a metal sheet under the power supply, connect the EMI ground to that metal sheet. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN60950-1, 2nd Edition ANSI/AMMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File |
