PSSNP-HF3

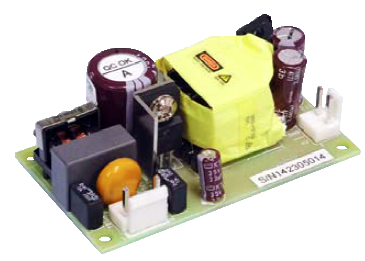

The PSSNP-HF3 series of AC/DC medical open frame power supplies offers rated output power of 30 watts, max output power of 40 watts, or peak output power of 45 watts in a 2.76” x 1.57” x 0.93” package. This series consists of single output models with a wide input voltage range of 90 to 264VAC. Each model in this series has high mechanical torque start-up as well as over load, short circuit, and over voltage protection. This series has UL/CSA/EN60950-1, 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3rd Edition safety approvals. Please call factory for order details.

• 90 to 264VAC Input Voltage Range • Design for BF Application • High Mechanical Torque Start-Up • Safety Class II & EMI Class B • Meets 2 X MOPP and Contact Leakage <100uA • Follows ErP Directive of EU • Convection Cooling for Rated Load • Forced Air for Max Load • Over Load, Short Circuit, and Over Voltage Protection • UL/CSA/EN60950-1, 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3.1 Edition Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSSNP-HF37 Input Voltage: 90~264 Output Voltage: 12 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF37-A Input Voltage: 90~264 Output Voltage: 12 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF38 Input Voltage: 90~264 Output Voltage: 15 Output Current: 2A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF38-A Input Voltage: 90~264 Output Voltage: 15 Output Current: 2A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF39 Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.25A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF39-A Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.25A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF3T Input Voltage: 90~264 Output Voltage: 48 Output Current: 0.63A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
PSSNP-HF3T-A Input Voltage: 90~264 Output Voltage: 48 Output Current: 0.63A Output Power (W): 30 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: See Datasheet
Output Current: 2.5A, 2A, 1.25A, 0.63A
Output Power (Watts): 30
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: Up to 87%
Isolation: Primary to Ground: 1MOPP (1500VAC)
Primary to Secondary: 2MOPP (4000VAC)
Secondary to Ground: 1MOPP (1500VAC)
Environmental
Operating Temperature: -40 to 70ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 2.15oz (61g)

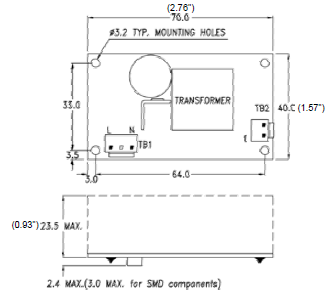

Dimensions: 2.76in x 1.57in x 0.93in
Notes & safety
Notes: 1. Most of the power supplies will create audible burst sound at light load, if the application wants to meet input power <0.5W at standby mode.
PSSNP-HF3x is for ITE & Medical applications which require standby mode.
PSSNP-HF3xA is for ITE & Medical applications but without burst sound and no standby mode.
2. Standby power consumption with system: for computers and displays, Energy star in U.S. and ErP regulation in Europe require the input power should be less than 0.5W at standby mode.
3. Output Load: 30W for convection cooling, 40W for forced air cooling.
4. Peak load duration can last for 5 sec.
5. EMI Grounding: if there is a metal sheet under the power supply, connect the EMI ground to that metal sheet.
6. Safety application will be proceeded upon request.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CSA/EN60950-1, 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File
