PSSNP-H06-M
The PSSNP-H06-M series of AC/DC medical open frame open frame power supply offers rated output power of 60 Watts and a peak output power of 48 watts of in a compact 4” x 2” x 0.97” frame. This series consists of single output models with a wide input voltage range of 90 to 264VAC. Each model in this series has high mechanical torque start-up and over load, short circuit, and over load protection. This series has ANSI/AMMI/CSA/EN60601-1, 3rd Edition, CB report, CE mark, and RM report/file safety approvals. Please call factory for order details.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-H067-M | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H068-M | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H065-M | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.33A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H069-M | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.50A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H06G-M | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 2.14A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H06J-M | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.66A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H06T-M | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-H06H-M | Input Voltage: 90~264 | Output Voltage: 60 | Output Current: 1A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48, 60 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 5A, 4A, 3.33A, 2.50A, 2.14A, 1.66A, 1.25A, 1A |
| Output Power (Watts): | 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | -20 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 3.88oz (110g) |

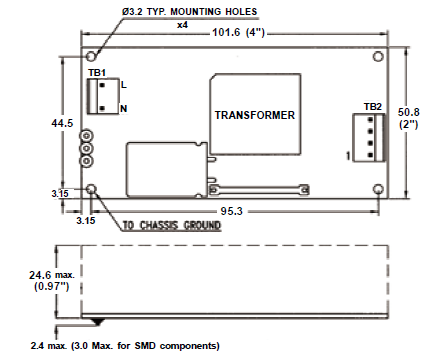

| Dimensions: | 4in x 2in x 0.97in |
| Notes & safety | |
| Notes: | 1. Output Load: 60W for convection cooling; 72W for forced air cooling. 2. Peak load can last for 5 seconds. 3. If there is a metal sheet under the power supply, connect the EMI ground to that metal sheet. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | ANSI/AAMI/CSA/EN60601-1, 2rd Edition, CB Report, CE Mark, RM Report/File |
