PSSNP-G16
The PSSNP-G16 series of AC/DC open frame power supplies offers rated 160 watts, max. 240 watts, and a peak of 320 watts of output power in a compact 5” x 3” x 1.42” frame. This series consists of single output models with a wide input voltage of 90-264VAC. Each model in this series has high mechanical torque start-up as well as over load, over voltage, and short circuit protection. This series has UL/CSA/EN60950-1 2nd Edition and ANSI/AMMI/CSA/EN60601-1 3.1 edition safety approvals. Please call factory for order details.
X: Blank for ITE application which requires standby mode, “A” for ITE application without burst sound and no standby mode, “M” for medical application which requires standby mode, “MA” for medical application but without burst sound and no standby mode.
Y:= “U” for U-Shape Case or “C” for Metal Box
PSSNP-G165AU = 18V Model for ITE application without burst sound and no standby mode and U-Shape Case
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

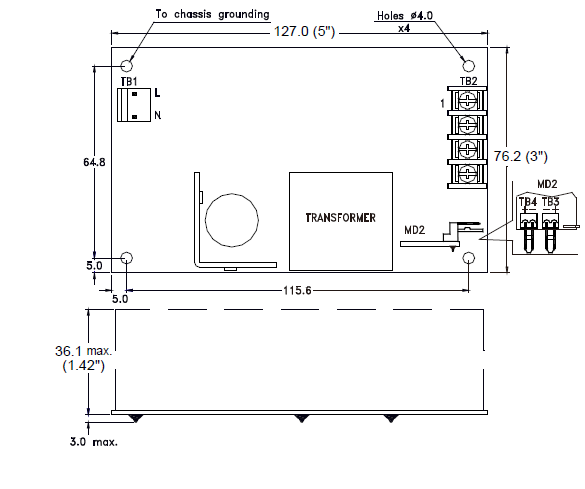

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-G167xy | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 13.3A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G168xy | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 10.66A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G165xy | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 8.88A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G169xy | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 6.66A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G16Gxy | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 5.7A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G16Jxy | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.45A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSSNP-G16Txy | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.35A | Output Power (W): 160 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63 |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48 |
| Output Current: | 13.3A, 10.66A, 8.88A, 6.66A, 5.7A, 4.45A, 3.35A |
| Output Power (Watts): | 160 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | See Data Sheet |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | -20 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 12.45oz (353g) |
| Dimensions: | 5in x 3in x 1.42in |
| Notes & safety | |
| Notes: | 1. Most power supplies will create audible burst sound at light load, if the application is to meet input power <0.5W at standby mode. “X" = Blank for ITE application which requires standby mode “X” = “A” for ITE application without burst sound and no standby mode “X” = “M” for medical application which requires standby mode “X” = “MA” for medical application but without burst sound and no standby mode. “Y”= “U” for U-Shape Case “Y”= “C” for Metal Box 2. 160W for convection cooling; 240W for forced air cooling 3. Peak Load Duration: 320W can last for 5 sec. 4. If there is a metal sheet under the power supply, connect the EMI ground to the metal sheet. 5. Energy saving for models without A suffix. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN60950-1, 2nd Edition ANSI/AMMI/CSA/EN60601-1, 3.1 Edition CB Report, CE Mark, RM report/file |
| Energy Star Compliance: | Version 6.0 for Computers and Displays |
