PSSNP-F50

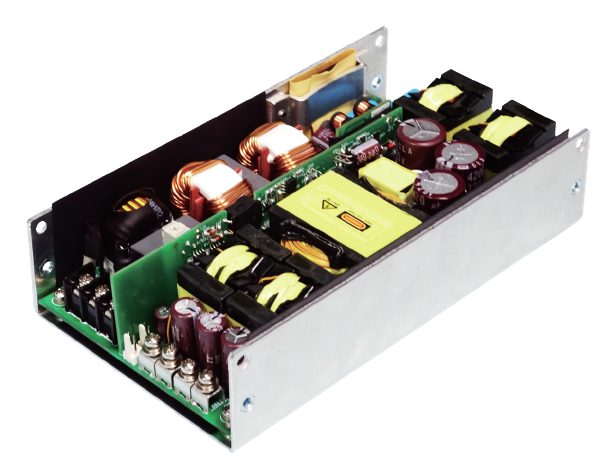

The PSSNP-50 series of AC/DC open frame power supplies offers rated output power of 500 watts, maximum output power of 750 watts, and peak output power of 1000 watts in a 7.5” x 4.5” x 1.65” package. This series consists of single output models with an input voltage range of 90-264VAC and built-in active PFC. Each model in this series has remote sense function, over load, short circuit, and over voltage protection, and are designed for BF applications. This series has UL/CSA/EN60950-1, 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 edition, CB, CE, and RM safety approvals. Please call factory for order details.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-F507 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.60A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 7.5" x 4.5" x 1.65" | Get a Quote |
| PSSNP-F509 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.80A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 7.5" x 4.5" x 1.65" | Get a Quote |
| PSSNP-F50T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.40A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 7.5" x 4.5" x 1.65" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Output Current: | 10.40A, 20.80A, 41.60A |
| Output Power (Watts): | 500 |
| Short Circuit Protection: | Latch Off |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | Up to 93% |
| Environmental | |
| Operating Temperature: | -20 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 2.76lbs (1.25kg) |
| Dimensions: | 7.5in x 4.5in x 1.65in (190.5mm x 114.3mm x 41.9mm) |
| Notes & safety | |
| Notes: | 1. BF (body floating) application; Meets 2 x MOPP and Touch Current <100uA 2. Average efficiency is measured at 115VAC nominal line and rated load 3. Peak Load (2.0 x Rated Current, Vo= rated for 5 seconds.) 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File |
