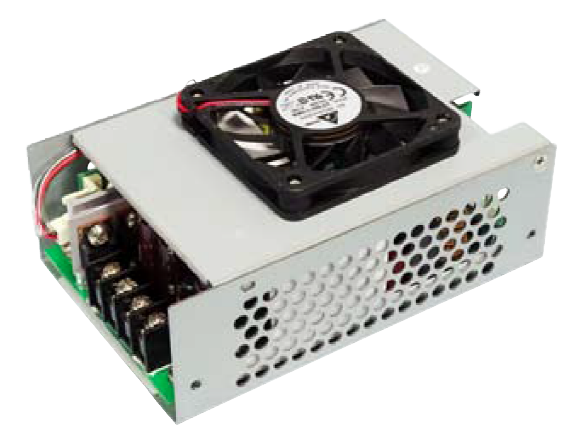

PSSNP-E30

The PSSNP-E30 series of AC/DC power supplies offers 300 watts of output power in a 5” x 3.3” x 2.13” package. This series consists of single output models with a wide input voltage range of 90-264VAC. Each model in this series  has over load, short circuit, and over voltage protection and a high mechanical torque start-up. Convection cooling is offered for rated load and forced air for maximum load. This series has UL/CSA/EN60950-1, 2nd Edition, and ANSI/AMMI/CSA/EN60601-1 3.1 Edition safety approvals.

• Design for BF application • Safety Class II • 12V Output For Fan • High Mechanical Torque Start-Up • Built-In Fan • CE Marked • High Efficiency Up to 89% • Convection Cooling for Rated Load • Forced Air for Max. Load • Over Load, Short Circuit, and Over Voltage Protection • UL/CSA/EN60950-1, 2nd Edition, and ANSI/AMMI/CSA/EN60601-1 3.1 Edition Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSSNP-E307(M) Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E308(M) Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E305(M) Input Voltage: 90~264 Output Voltage: 18 Output Current: 16.6A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E309(M) Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E30G(M) Input Voltage: 90~264 Output Voltage: 28 Output Current: 10.7A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E30J(M) Input Voltage: 90~264 Output Voltage: 36 Output Current: 8.3A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
PSSNP-E30T(M) Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.3A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 5" x 3.3" x 2.13" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Output
Output Voltage: 12, 15, 18, 24, 28, 36, 48
Output Current: 25A, 20A, 16.6A, 12.5A, 10.7A, 8.3A, 6.3A
Output Power (Watts): 300
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: Avg. 86.6%
Environmental
Operating Temperature: -20 to 70ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 20.46oz (580g)

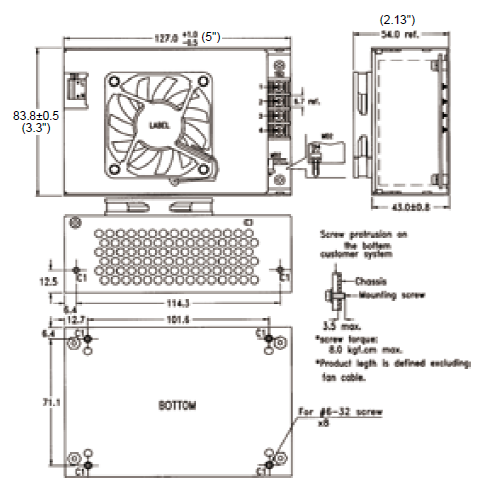

Dimensions: 5in x 3.3in x 2.13in
Notes & safety
Notes: 1. Add “M” to the end of model number for medical version. Model number without “M” indicates the ITE application. Both require standby mode.
2. Output Load: Rated 300W and built-in forced air cooling.
3. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CSA/EN60950-1, 2nd Edition ANSI/AAMI/CSA/EN60601-1, 3.1 Edition, CB Report, CE Mark, RM Report/File
