PSSBU150

The PSSBU150 series of AC/DC switching mode power supplies provides 150 Watts of continuous output power in a compact, open frame constructed design. This series has single output supplies with a universal operating input range of 90~264VAC. These units are ideally suited for use in disc drive systems, microprocessor-based systems, portable equipment, and many other applications. All models meet FCC Part-15 class B and CISPR-22 class B emission limits. The standard models of this series also comply with UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN 60950-1:2006/A2:2013 safety approvals, while models with an “A” suffix comply with IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, and EN 62368-1:2014/A11 safety approvals. All units are 100% burn-in tested.

• Wide Operating Voltage of 90~260VAC • Internal EMI Filter • Class I Insulation • Active Power Factor Correction • Synchronous Rectification • Over Voltage, Short Circuit, and Over Load Protection • UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN 60950-1:2006/A2:2013 Standard Safety Approvals • IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, and EN 62368-1:2014/A11 Safety Approvals for “A” Suffix Models
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSSBU150-104 Input Voltage: 90~264 Output Voltage: 9 Output Current: 16 A Output Power (W): 144 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-105 Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.5 A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-106 Input Voltage: 90~264 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-107 Input Voltage: 90~264 Output Voltage: 18 Output Current: 8.33 A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-108 Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25 A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-109 Input Voltage: 90~264 Output Voltage: 30 Output Current: 5A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-110 Input Voltage: 90~264 Output Voltage: 36 Output Current: 4.17 A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
PSSBU150-111 Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.13 A Output Power (W): 150 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.4" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~260
Input Frequency: 47-63 Hz
Output
Output Voltage: 9, 12, 15, 18, 24, 30, 36, 48
Output Current: 3.13A, 4.17A, 5A, 6.25A, 8.33A, 10A, 12.5A, 16A
Output Power (Watts): 144, 150
Over Voltage Protection: 112%-132%
General
Efficiency: 88%
Isolation: 4242VDC
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 13.76 oz.

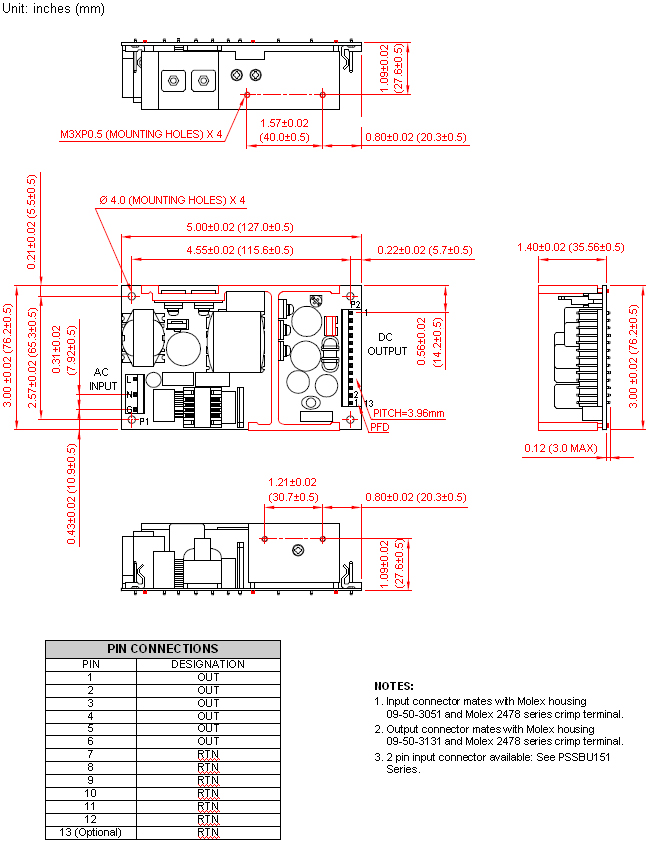

Dimensions: 5" x 3" x 1.4" (127 x 76.2 x 35.56 mm)
Notes & safety
Notes: 1. Two sets of safety approvals are available. Standard models comply with UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN 60950-1:2006/A2:2013.
Add an “A” suffix to model numbers to indicate IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, and EN 62368-1:2014/A11 Safety Approvals.
2. Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is prohibited.
3. At factory, in 60% rated load, each output is checked to be within voltage accuracy.
4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
5. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
6. Ripple & Noise is measured from peak to peak with a bandwidth limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor.
7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
8. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN 60950-1:2006/A2:2013 Standard Safety Approvals or IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, and EN 62368-1:2014/A11 Safety Approvals for “A” Suffix Models
RoHS Compliance: Yes
