PSPW500
The PSPW500 series of AC/DC switching power supplies consists of U-chassis (U type), enclosed with rear-side built-in (E type), and enclosed with top-side built-in fan (F type) models. Built-in fan models offer 500W of output power and U-chassis models offer 360W of output power with convection cooling and 500W with 30CFM forced airflow. All units have a single output, 90~264VAC full range input, and active PFC. These supplies also have UL60601-1, TUV EN60601-1, CB IEC60601-1, and CE safety approvals. All models are protected against short circuit, over load, over voltage, and over temperature conditions. This series also has a current sharing option (suffix “D”).
• Active PFC
• Single Output
• 90~264VAC Input Voltage Range
• 500W with Forced Airflow
• 83% Efficiency
• RoHS Compliant
• +5VSB/0.25A Convection Cooling, 1.0A Forced Air Cooling
• +12V/1A DC Fan Output
• Optional High Efficiency OR-ing FET Diode Current Share Option
• Short Circuit, Over Load, Over Voltage, and Over Temperature Protection
• 3 Mechanical Options Available: U-Chassis, Enclosed with Rear Side Fan, Enclosed with Top Fan
• Remote Inhibit Function
• UL60950-1, CB IEC60950-1, and TUV EN60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPW500B-1Y12-U | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.67A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y24-U | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.84A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y30-U | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 16.67A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y36-U | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 13.89A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y48-U | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.42A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y54-U | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 9.26A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y57-U | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 8.78A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW500B-1Y12-E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.67A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y24-E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.84A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y30-E | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 16.67A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y36-E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 13.89A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y48-E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.42A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y54-E | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 9.26A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y57-E | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 8.78A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW500B-1Y12-F | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.67A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y24-F | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.84A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y30-F | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 16.67A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y36-F | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 13.89A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y48-F | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.42A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y54-F | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 9.26A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| PSPW500B-1Y57-F | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 8.78A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | > 0.95 at 115VAC and full load> 0.90 at 230VAC and full load |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 30, 36, 48, 54, 57 |
| Output Current: | 8.78A, 9.26A, 10.42A, 13.89A, 16.67A, 20.84A, 41.67A |
| Output Power (Watts): | 500 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 110-130% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | 86% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -10 to 85°C |
| Physical | |
| Weight: | U Type: 1.90 lbs (860g) E Type: 2.16 lbs (980g) F Type: 2.18 lbs (990g) |
| Dimensions: | U Type: 8.00 x 4.66 x 1.51 (203.2 x 118.5 x 38.5 mm) E Type: 9.03 x 4.66 x 1.63 (229.4 x 118.5 x 41.5 mm) F Type: 8.00 x 4.66 x 2.44 (203.2 x 118.5 x 62.0 mm) |
| Notes & safety | |

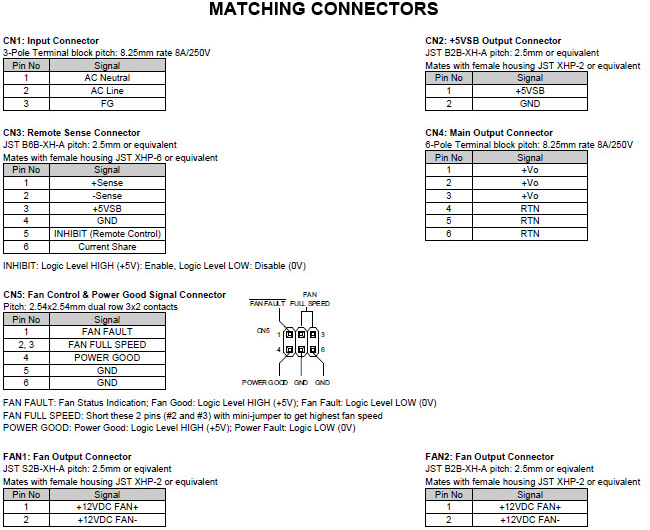

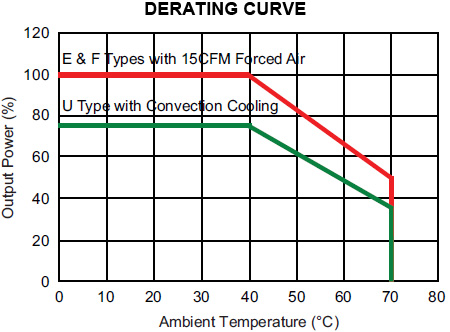

| Notes: | 1. The output power and output current listed in the table on the "Models" tab is the maximum value with 30CFM forced airflow for U-Chassis models and 15CFM forced airflow for models with fans. 2. Mechanical Options: The “U” suffix in the model number is for U-chassis type, “E” is for enclosed type with rear-side built-in fan, “F” is for enclosed type with top-side built-in fan, and the “D” is for current sharing option. 3. U Type: 360W max. at +40°C ambient temp. and free air convection. 500W max. at +50°C ambient temp. and 30CFM forced air. E Type: 500W max. at +50°C ambient temperature. F Type: 500W max. at +50°C ambient temperature. 4. +5VSB/0.25A with convection cooling and +5VSB/1A with forced air cooling. 5. Preset accuracy should be less than 1% of nominal output voltage at 60% full load. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, CSA-C22.2 No.950-1, TUV EN60950-1, CB IEC60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
