PSPW150

The PSPW150 series of AC/DC power supplies provides 100 Watts of output power with convection cooling and 150 Watts with 12CFM forced airflow. This series consists of 12V, 15V, 19V, 24V, 28V, and 48VDC single output models with a 90-264VAC full range input which enables them to be used anywhere in the world. These supplies also feature a high efficiency up to 85% and a power factor > 0.9 at 115/230VAC. These supplies are also protected against short circuit, over voltage, and over load conditions. The PSPW150 series has UL60950-1, CSA-C22.2 NO.950-1, Nemko EN60950-1, and CB IEC60950-1 safety approvals. This series is also CE marked and meets EN55022 Class B, CISPR22 Class B, and FCC Part 15 Class B EMC standards. Both open frame and U-chassis mechanical options are available for this series.

• RoHS Compliant • Single Outputs • PF > 0.9 at 115/230VAC • 100 Watts with Convection Cooling • 150 Watts with Forced Air Cooling • 90~264 VAC Input Voltage Range • MTBF > 100,000 Hours • High Efficiency up to 85% • Over Voltage, Over Load, and Short Circuit Protection • UL60950-1, Nemko EN60950-1, & CB IEC60950-1 Safety Approvals • 100% Burn-in and Hi-pot Tested • Open Frame and U-Chassis Mechanical Options Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPW150B-1Y12-O Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.5A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y15-O Input Voltage: 90~264 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y19-O Input Voltage: 90~264 Output Voltage: 19 Output Current: 7.89A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y24-O Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y28-O Input Voltage: 90~264 Output Voltage: 28 Output Current: 4.16A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y48-O Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.12A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSPW150B-1Y12-U Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.5A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSPW150B-1Y15-U Input Voltage: 90~264 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSPW150B-1Y19-U Input Voltage: 90~264 Output Voltage: 19 Output Current: 7.89A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSPW150B-1Y24-U Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSPW150B-1Y28-U Input Voltage: 90~264 Output Voltage: 28 Output Current: 4.16A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
PSPW150B-1Y48-U Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.12A Output Power (W): 150 No. Outputs: S Case: U-Chassis Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: > 0.9 at 115/230VAC
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 15, 19, 24, 28, 48
Output Current: 12.5A, 10A, 7.89A, 6.25A, 4.16A, 3.12A
Output Power (Watts): 150
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 85%
Environmental

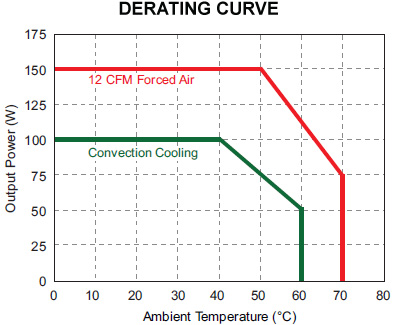

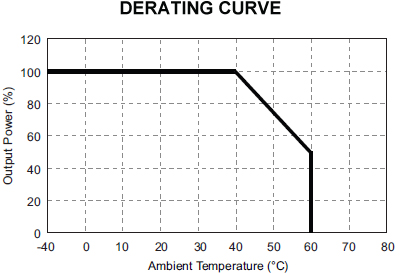

Operating Temperature: Convection: 0 to 60°C with derating; 12CFM Forced Air: 0 to 70°C
Storage Temperature: -10 to 85°C
Physical
Weight: Open Frame Models: 7.27oz (206g)
U-Chassis Models: 9.70oz (275g)
Dimensions: Open Frame Models: 4.00" x 2.00" x 1.14" (101.6 x 50.8 x 29.0 mm)
U-Chassis Models: 4.12" x 2.25" x 1.38" (104.6 x 57.0 x 35.0 mm)
Notes & safety
Notes: 1. There are two types of mechanical options available for this series. The suffix on the end of the model number indicates the package type. The suffix "-O" is for open frame type and the suffix "-U" is for U-chassis type.
2. The output power and output current values listed in the table on the "Models" tab is the maximum value with 12CFM forced air. For convection cooling values pease see the data sheet.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, CSA-C22.2 NO.950-1, Nemko EN60950-1, CB IEC60950-1
RoHS Compliance: Yes
