PSPSF-125

The PSPSF-125 series of AC/DC switching power supplies offers up to 126W of output power in a 5” x 3” x 1.2” open frame constructed package. All models have a single output and a universal AC input. Some features include wide operating temperature range (-40°C to +70°C), PFC function > 0.98, and efficiency up to 88%. These supplies are RoHS and UL94V0 compliant and have GB4943-2001 and EN60950-1: 2006 safety approvals. All models are protected against over load, over voltage, and short circuit conditions. All models are 100% full load burn-in tested.

• Open Frame • PFC > 0.98 @ 115VAC • Single Outputs • RoHS Compliant • UL94V0 Compliant • Universal AC Input (Full Range) • High Efficiency and High Reliability • Built-in Remote Sense Function • All Using 105°C Long Life Electrolytic Capacitors • 100% Full Load Burn-in Tested • Up to 126W Output Power • Wide Operating Ambient Temperature (-40°C ~ +70°C) • Over Voltage, Over Load, and Short Circuit Protected • GB4943-2001 and EN60950-1: 2006 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSPSF-125-5 Input Voltage: 90~264 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
PSPSF-125-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 5.2A Output Power (W): 124.8 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
PSPSF-125-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.6A Output Power (W): 124.8 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
PSPSF-125-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 10.5A Output Power (W): 126 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
PSPSF-125-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 8.4A Output Power (W): 126 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
PSPSF-125-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 3.5A Output Power (W): 126 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.2" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 5, 12, 15, 24, 36, 48
Voltage Accuracy: ±2%
Output Current: 2.6A, 3.5A, 5.2A, 8.4A, 10.5A, 20A
Output Power (Watts): 100, 124.8, 126
Output Trim/Adjustability: ±10% of rated output voltage
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 120-150%, Hiccup Mode
General
Efficiency: Up to 88%
Isolation: 3000VAC
Environmental

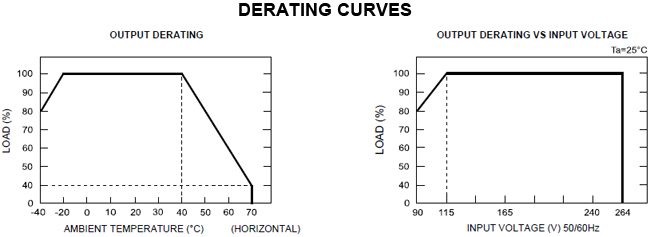

Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 14.2 oz.

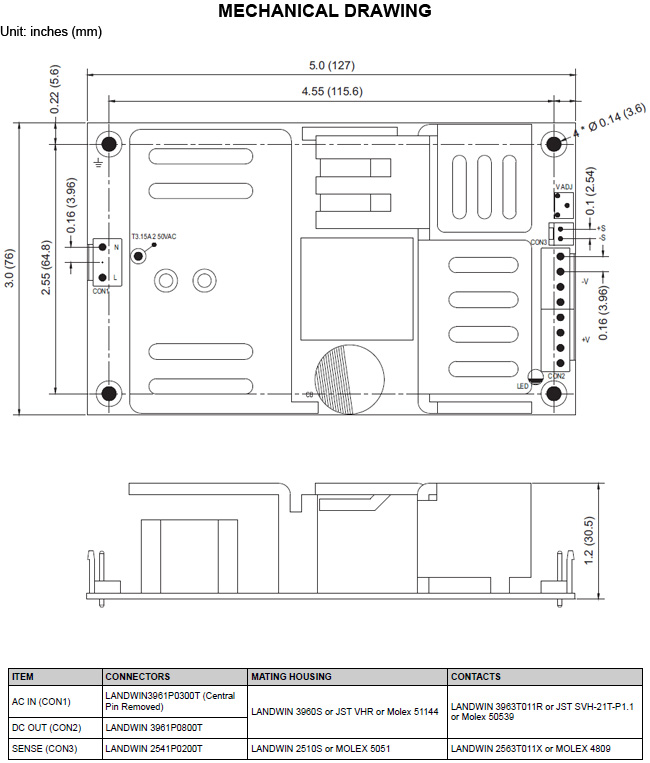

Dimensions: 5" x 3" x 1.2" (127 x 76 x 30.5 mm)
Notes & safety
Notes: 1. Ripple & noise was measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with 0.1μF and 47μF capacitors in parallel.
2. The SPS is considered a component which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: GB4943-2001, EN60950-1: 2006
RoHS Compliance: Yes
