PSPSD-50

The PSPSD-50 series of AC/DC switching power supplies provides up to 53.8 Watts of output power in a 3.90” x 3.23” x 1.38” enclosed case. This series consists of single output models ranging from 5VDC to 48VDC with an input voltage range of 90~264VAC (127~370VDC). Standard features include high efficiency up to 89%, 3000VAC I/O isolation, and a -25°C to +70°C operating temperature range. This series also has short circuit, over load, and over voltage protection. All models are RoHS compliant and have UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), and EN60950-1:2006 safety approvals.

• RoHS Compliant • Up to 53.8 Watts Output Power • 3000VAC I/O Isolation • High Efficiency up to 89% • Operating Altitude up to 5000M • Easy Assembly from Top Side • Suitable for Critical Applications • Miniature Size, High Reliability • High Power Density • 100% Full Load Burn-in Test • No Load Power Consumption < 0.5W • PCB Soldering Side with Conformal Coating • -25°C to +70°C Wide Operating Temperature Range • All Using 105°C Long Life Electrolytic Capacitors • Withstand 300VAC Surge Input for 5 Sec. • Universal Input Voltage Range: 90-264VAC (127-370VDC) • Over Load, Over Voltage, and Short Circuit Protection • 5V, 12V, 15V, 24V, and 48VDC Single Output Models • UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), EN60950-1:2006 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPSD-50-5 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Enclosed Case Get a Quote
PSPSD-50-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 4.2A Output Power (W): 50 No. Outputs: S Case: Enclosed Case Get a Quote
PSPSD-50-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 3.4A Output Power (W): 51 No. Outputs: S Case: Enclosed Case Get a Quote
PSPSD-50-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.2A Output Power (W): 52.8 No. Outputs: S Case: Enclosed Case Get a Quote
PSPSD-50-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.12A Output Power (W): 53.8 No. Outputs: S Case: Enclosed Case Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 12, 15, 24, 48
Voltage Accuracy: ±3.0%
Output Current: 8A, 4.2A, 3.4A, 2.2A, 1.12A
Output Power (Watts): 40, 50, 51, 52.8, 53.8
Output Trim/Adjustability: -5 to +10%
Short Circuit Protection: Long-term mode, Automatic Recovery
Over Voltage Protection: 105-150%
General
Efficiency: Up to 89%
Isolation: 3000VAC; ≤10mA
Environmental

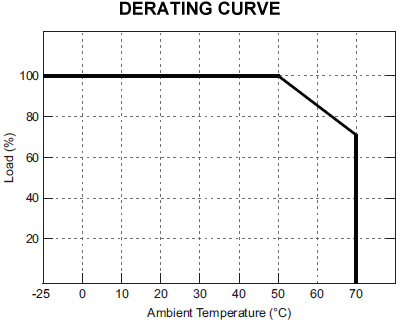

Operating Temperature: -25 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 11.3oz (320g)
Dimensions: 3.90" x 3.23" x 1.38" (99.0 x 82.0 x 35.0 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 10µF capacitors in parallel.
2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re- confirmed that it still meets EMC directives.

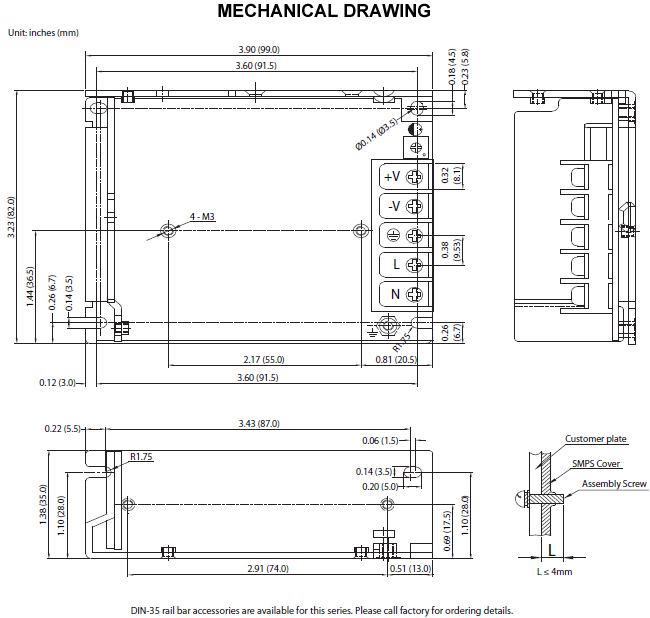

3. DIN-35 rail bar accessories are available for this series. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), EN60950-1:2006
RoHS Compliance: Yes
