PSMPF100

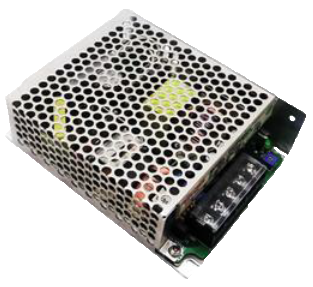

The PSMPF100 series of AC/DC power supplies offers up to 100 watts of output power in a miniature 5.08” x 3.87” x 1.48” package. This series consists of single output models with a universal input range of 90~264VAC. Each model features 105ºC long life electrolytic capacitors, high power density, efficiency and reliability, and built-in active PFC function. The PSMPF100 series is also protected against over load, over power, and short circuit conditions, has 100% full load burn-in test, and has UL609509-1 2nd Edition, IEC 6095-1:2005 (2nd Edition), and EN60950-1:2006 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPMF100-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.87" x 1.48" | Get a Quote |
| PSMPF100-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.5A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.87" x 1.48" | Get a Quote |
| PSMPF100-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 7A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.87" x 1.48" | Get a Quote |
| PSMPF100-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.87" x 1.48" | Get a Quote |
| PSMPF100-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.2A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.87" x 1.48" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264VAC |
| PFC: | @115VAC: 0.98 @230VAC: 0.93 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | 5~15V Models: ±2% 24~48V Models: 1.0% |
| Output Current: | 20A, 8.5A, 7A, 4.2A, 2.2A |
| Output Power (Watts): | 100 |
| Short Circuit Protection: | Long Term Mode, Automatic Recovery |
| General | |
| Efficiency: | Up to 88% |
| Environmental | |
| Operating Temperature: | -20 to 60ºC |
| Storage Temperature: | -30 to 85ºC |
| Physical | |
| Weight: | 17.14oz (486g) |

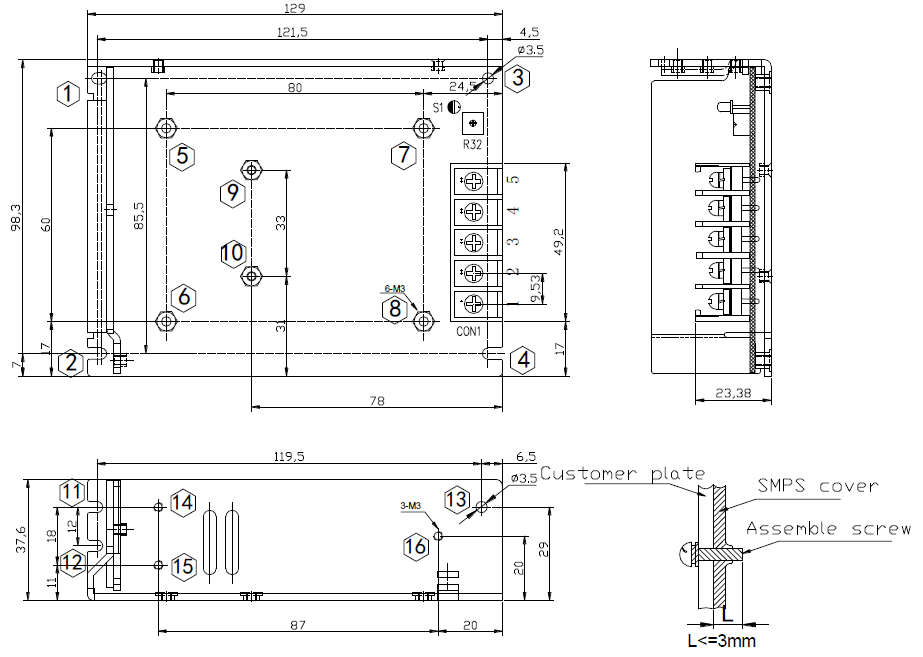

| Dimensions: | 5.08in x 3.87in x 1.48in (129mm x 98.3mm x 37.6mm) |
| Notes & safety | |
| Notes: | 1. This is considered a component that will be installed into final equipment. Equipment must be re-confirmed that it meets EMC directives. 2. Accessories for DIN-24 Rail Bar available. Contact factory for more information. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1 2nd Edition, IEC 60950-1: 2005 2nd Edition, EN60950-1:2002 |
