PSME1200

The PSME1200 series of medical AC/DC switching power supplies provides 1200 Watts of output power in a 10.256” x 5.000” x 2.500” enclosed case. This series consists of single output models ranging from 12VDC to 60VDC with a universal input voltage range of 90~264VAC (127~370VDC). Standard features include high efficiency up to 93%, programmable output voltage and output current, remote on/off, and power OK signal. This series also has over temperature, over voltage, and over load protection. These supplies also feature a low leakage current of less than 300μA (earth) and less than 100µA (patient) at 264VAC and are designed to withstand 4000VAC input to output isolation (2 x MOPP). All models are RoHS compliant and have ANSI/AAMI ES60601-1, TUV EN60601-1: 2006, and IEC60601-1 medical approvals.

• RoHS Compliant • 1200 Watts Output Power • High Efficiency up to 93% • 4000VAC I/O Isolation (2 x MOPP) • Constant Current Limiting • Global Control via RS232 • Power OK Signal (Power Good, Logic Low) • Remote ON/OFF, Remote Sense Functions • Protection: OLP, OVP, OTP, Fan Failure • Remote Setting Multiple PSU via RS232, RS485 & I2C • Programmable Output Voltage (0~105%) • Programmable Output Current (0~105%) • Universal Input Voltage Range: 90~264VAC (127~370VDC) • Single Outputs Ranging from 12VDC to 60VDC • Selectable +5V/0.5A or +9V/0.3A Auxiliary Output • Forced Current Sharing at Parallel Operation • ANSI/AAMI ES60601-1, TUV EN60601-1: 2006, IEC60601-1 Medical Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSME-1200-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 100A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 80A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 50A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-30 Input Voltage: 90~264 Output Voltage: 30 Output Current: 40A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 25A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-60 Input Voltage: 90~264 Output Voltage: 60 Output Current: 20A Output Power (W): 1200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSME-1200-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 33.4A Output Power (W): 1202.4 No. Outputs: S Case: Enclosed with Fan Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Remote ON/OFF: Yes
PFC: 0.99 at 115VAC and full load 0.95 at 230VAC and full load
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 15, 24, 30, 36, 48, 60
Voltage Accuracy: ±2.0%
Output Current: 100A, 80A, 50A, 40A, 33.4A, 25A, 20A
Output Power (Watts): 1200, 1202.4
Output Trim/Adjustability: ±5.0%
Over Voltage Protection: Yes
Thermal Protection: 100°C ±5°C
General
Efficiency: Up to 93%
Isolation: Input to Output: 4000VAC (2xMOPP) Input to FG: 1800VAC Output to FG: 500VAC
Environmental
Operating Temperature: -20 to 60°C
Storage Temperature: -40 to 85°C
Physical
Weight: 5.73 lbs (2600g)
Dimensions: 10.256" x 5.000" x 2.500" (260.50 x 127.00 x 63.50 mm)
Notes & safety

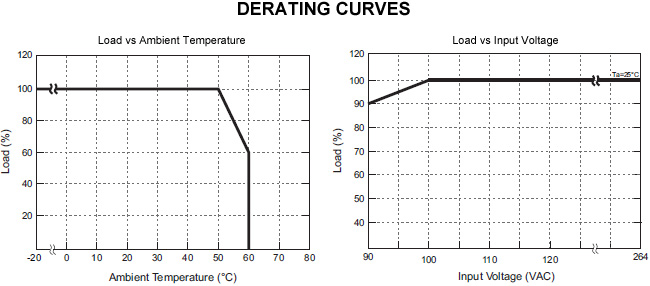

Notes: For voltages near the low end of the input voltage range, see the derating curve for the power supply output rating.
When in parallel operation only one unit might operate if the total output load is less than 5% of the rated load condition.
The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL (ANSI/AAMI ES60601-1; CAN / CSA-C22.2 No.60601-1); NFPA 99; TUV (EN60601-1; IEC60601-1)
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60601-1: 2006
