PSMDC185

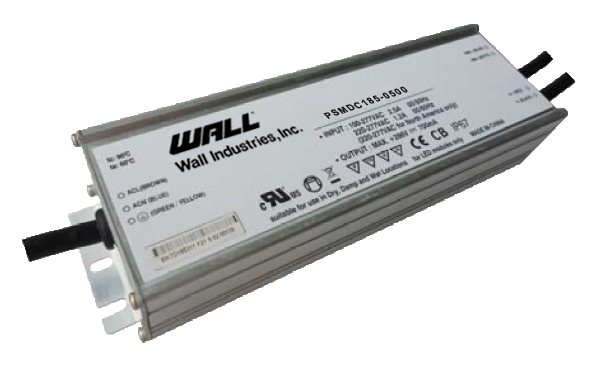

The PSMDC185 series of LED drivers offers 183~200 watts of output power in an 8.62” x 2.64” x 1.57” aluminum package. This series consists of single output models with a 90~305VAC full range input. Each model in this series features active PFC, built-in 3 in 1 output current dimming and 10KV lightning surge protection, and the option for timer dimming function. This series has UL8750, EN61347-1, EN61347-2-13, GB 19510.1 and GB 19510.14 safety standards.

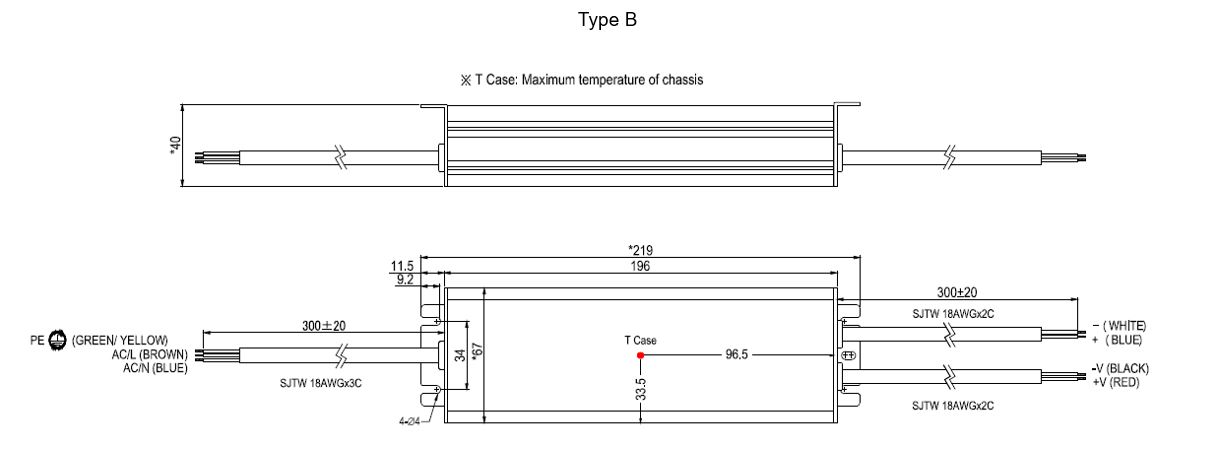

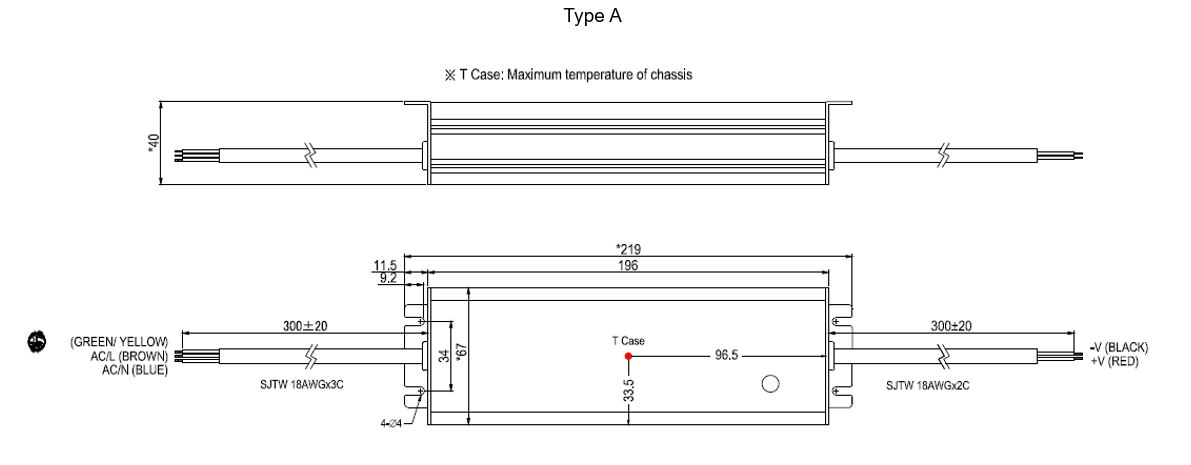

X: “A” for IP65 grade or“B” for IP67 grade
PSMDC185-0500A=IP65 Grade
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMDC185-4200x | Input Voltage: 90~305 | Output Voltage: 27~42 | Output Current: 4200mA | Output Power (W): 177 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-3150x | Input Voltage: 90~305 | Output Voltage: 29~58 | Output Current: 3150mA | Output Power (W): 183 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-5250x | Input Voltage: 90~305 | Output Voltage: 25~35 | Output Current: 5250mA | Output Power (W): 183 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-3850x | Input Voltage: 90~305 | Output Voltage: 32~49 | Output Current: 3850mA | Output Power (W): 189 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-0500x | Input Voltage: 90~305 | Output Voltage: 200~400 | Output Current: 500mA | Output Power (W): 200 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-0700x | Input Voltage: 90~305 | Output Voltage: 143~286 | Output Current: 700mA | Output Power (W): 200 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-1050x | Input Voltage: 90~305 | Output Voltage: 95~190 | Output Current: 1050mA | Output Power (W): 200 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| PSMDC185-1400x | Input Voltage: 90~305 | Output Voltage: 71~143 | Output Current: 1400mA | Output Power (W): 200 | No. Outputs: S | Case: LED Driver | Size: 8.62" x 2.64" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| PFC: | @115VAC, Full Load: 0.98 @230VAC, Full Load: 0.95@264VAC, Full Load: 0.93 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 25~35, 27~42, 32~49, 29~58, 71~143, 95~190, 143~286, 200~400 |
| Output Current: | 500mA, 700mA, 1050mA, 1400mA, 3150mA, 3850mA, 4200mA, 5250mA |
| Output Power (Watts): | 177, 183, 189, 200 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | 75 to 95°C |
| General | |
| Efficiency: | Up to 92% |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 2.16lbs (980g) |
| Dimensions: | 8.62in x 2.64in x 1.5in (219mm x 67mm x 40mm) |
| Notes & safety | |

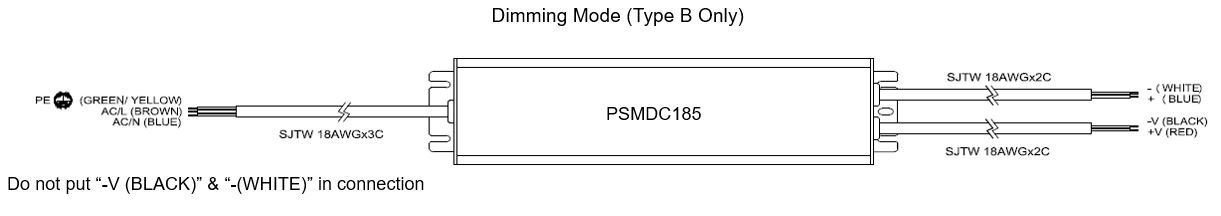

| Notes: | 1. “X” in model number indicates IP rating. “X” can be “A” for IP65 grade (adjust current by variable resistor internal) or “B” for IP67 grade (output current dimming by 0~10V/10V PWM signal/resistor. 2. Ripple current is measured at 20MHz of bandwidth. The measured terminal is paralleled with a 22uF E-cap and a 0.1uF ceramic cap.rt. 3. This product is listed to applicable standards and requirements by UL. |
| Safety Approvals: | UL 8750, EN 61347-1, EN 61347-2-13, GB 19510.1, GB 19510.14 |
